Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (EMEA) (S/N A1Z760001 & Above, A8KA60001 & Above) ELECTRICAL SYSTEM

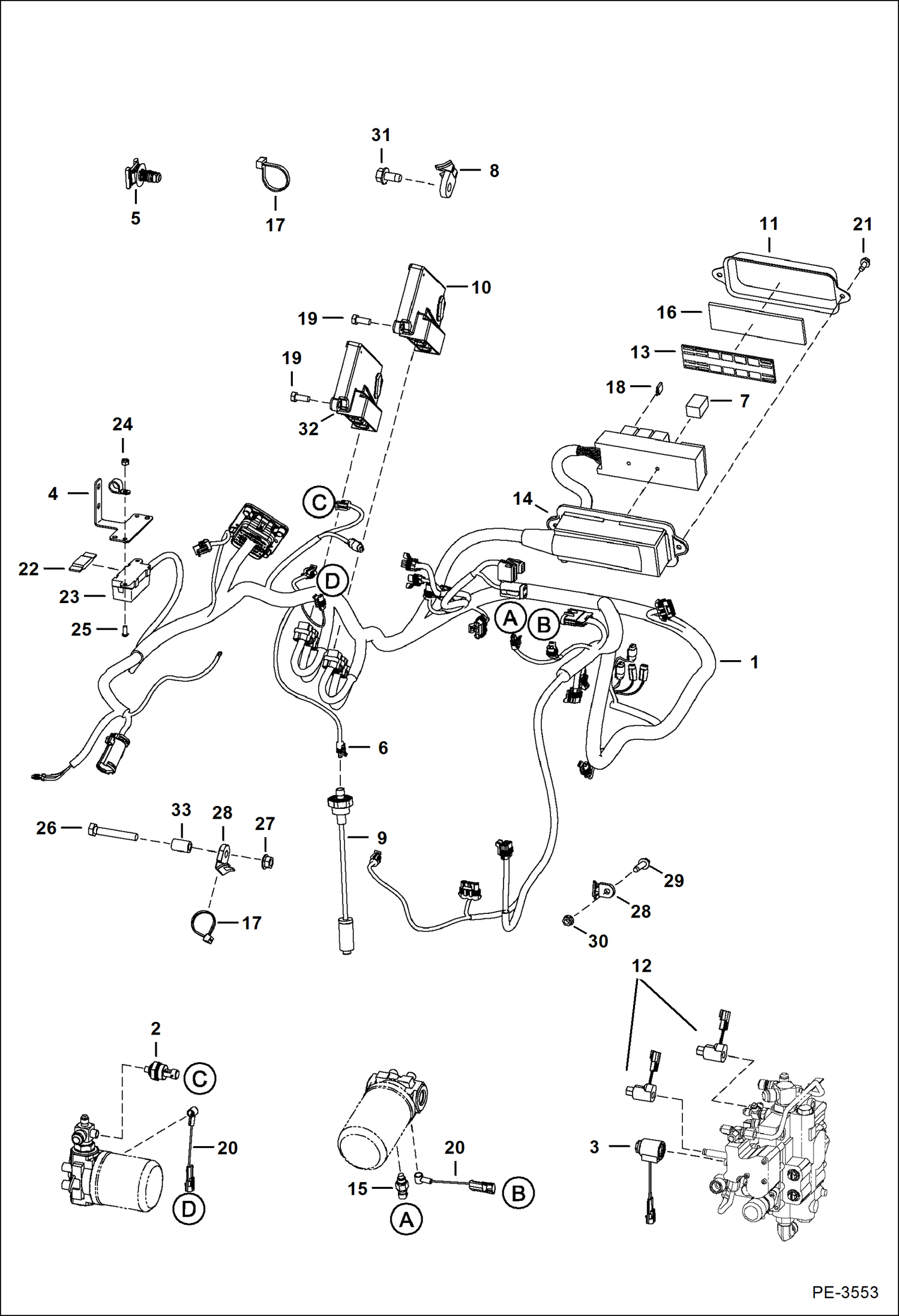

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY (EMEA) (S/N A1Z760001 & Above, A8KA60001 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7159446

HARNESS

1

7169391

HARNESS

2

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

3

6675559

COIL

4

6728621

BRACKET

5

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

6

6646383

CONNECTOR fuel sender

6

6648330

TERMINAL

7

6679820

RELAY

8

6678818

MOUNT

9

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

9

6717579

GASKET

10

6693353

CONTROLLER, GATEWAY Bobcat

11

6716621

COVER Was 7176546 - A

12

6678891

COIL 10 volt - W/nut

12

6691022

NUT

13

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')

14

6718659

HOUSING

14

6673200

FUSE BLOCK

15

6727869

SENDER,HYD TEMP

16

6731275

INSULATION

17

6624289

STRAP, TIE

18

6654806

FUSE, 15A

18

6702444

FUSE 25A 5

18

6718034

FUSE, 30A

19

7157217

BOLT

20

6728626

HARNESS

21

84G3116

SCREW

22

6675155

FUSE, 100A mega

23

6675154

HOLDER high amp fuse

24

59D4

NUT 5

25

25G410

CAPSCREW

26

4CM1065

BOLT

27

53DM10

NUT

28

6679034

MOUNT

29

84G3720

BOLT

30

97D6

NUT 10

31

84G3712

BOLT 5

32

6691288

CONTROLLER, AUX CONTROL

33

7144076

SPACER

Выбрано товаров: 40
