Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

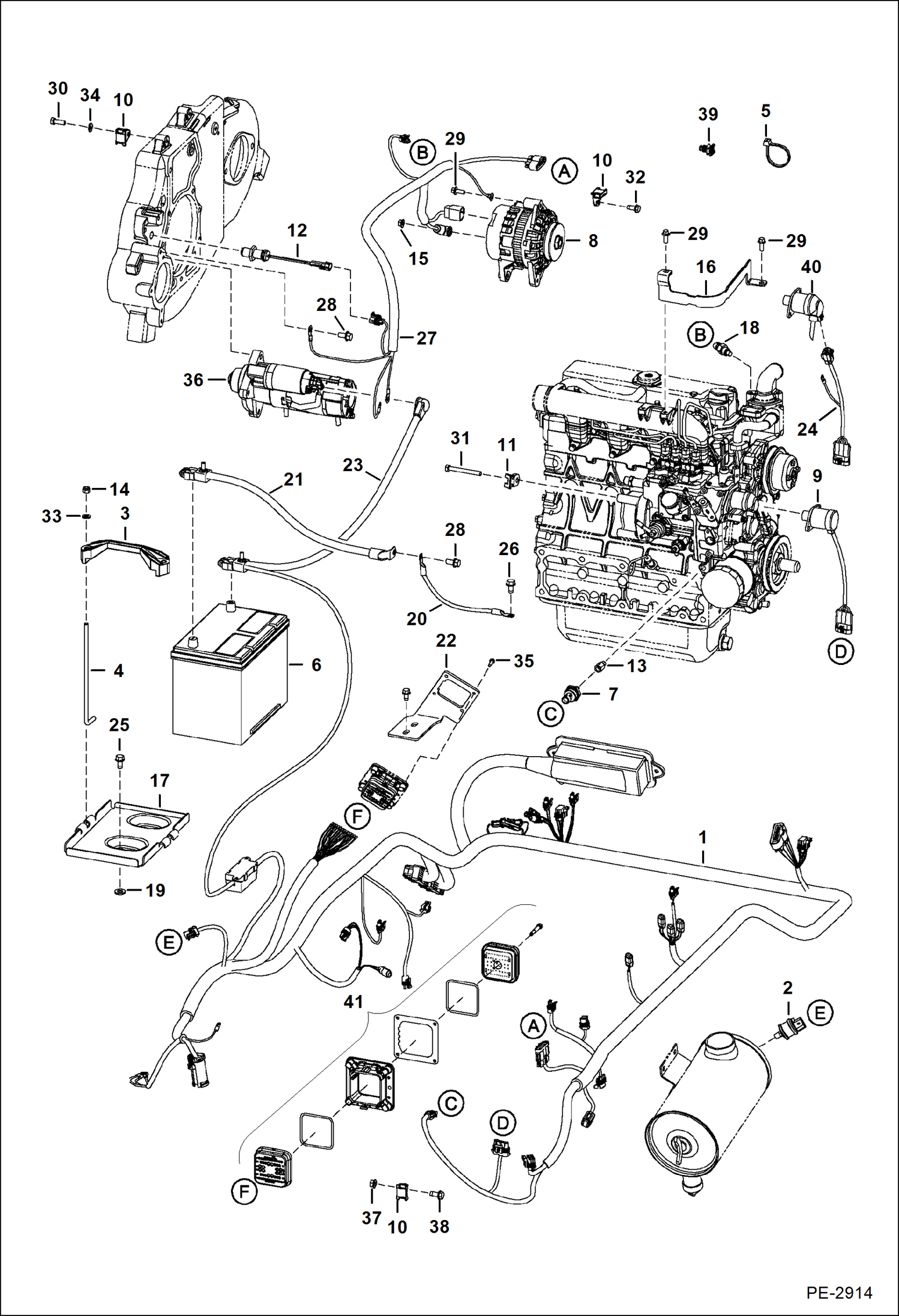

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7116259

HARNESS loader - W/Ref. 22 & 35

1

7122357

HARNESS loader - W/Ref. 22 & 35

1

7159446

HARNESS loader - W/Ref. 25 & 35

2

6665371

SWITCH condition indicator

3

6569203

CLAMP

4

6576280

BOLT

5

6624289

STRAP, TIE

6

6674687

BATTERY, DRY 600 AMP

6

BATTERY CAP

7

6674315

SENSOR eng oil pressure

7

6697920

SENSOR, PRESS OIL ENG

8

ALTERNATOR See Illustration ALTERNATOR/ C3529

9

SOLENOID NLA - fuel shutoff W/molded connector - Order Ref. 40 - Was 6684826 - A

10

6678818

MOUNT

11

6679034

MOUNT

12

6684037

SENSOR rpm

12

6693921

SENSOR, RPM rpm

13

7102451

FITTING

14

59D5

NUT 5

15

43DM8

NUT

16

7116956

BRACKET

17

6718260

BATTERY PAN

18

6718414

SENDER, TEMP ENG

19

616783

WASHER

20

6565170

CABLE neg

21

6729008

CABLE ground

22

7112854

BRACKET

23

6731256

CABLE pos

24

6814830

HARNESS fuel solenoid

25

84G3716

SCREW 5

26

84G3712

BOLT 5

27

7104379

HARNESS starter/alt

27

7144233

HARNESS, ENG starter/alt

27

6688073

CONNECTOR

28

35C612

BOLT

29

29CM820

SCREW

30

1CM825

BOLT

31

1CM870

BOLT

32

84G3112

BOLT 5

33

25E15

WASHER

34

25E14

WSHR

35

6688980

BOLT

36

STARTER See Illustration STARTER/ B16488R

37

97D5

NUT

38

17C512

BOLT 5

39

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

40

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

41

CONNECTOR ASSEMBLY See Illustration CONNECTOR HARNESS ASSEMBLY/ PE3684 NSS - engine & cab - Order components

Выбрано товаров: 48
