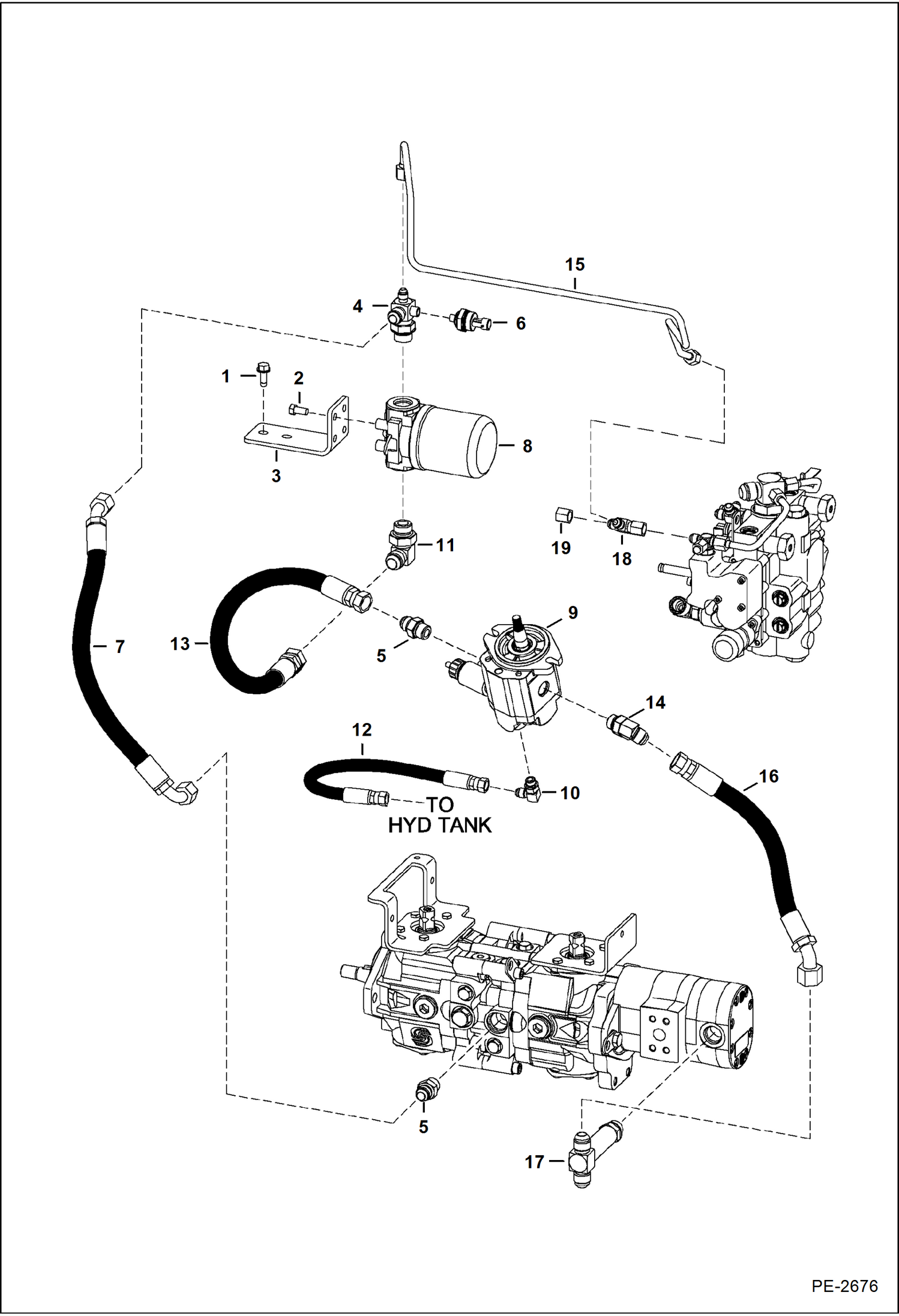

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooling Fan) HYDROSTATIC SYSTEM

1

84G3716

SCREW 5

2

17C612

BOLT 5

3

7109279

BRACKET

4

7108976

TEE

4

79K12

O RING 10

5

15KB1010

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

7

7113986

HOSE 559 mm (22'') long - manual controls

7

7137212

HOSE 568,5 mm (22.38'') long - selectable joystick controls

8

6687266

FILTER ASSY

8

6686926

FILTER, OIL HYD 113,5 mm (4.5'') long

8

6660260

SWITCH

9

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ PE2811 - NLA - aluminum - Was 6687142 - A

10

17KB0606

FITTING

10

79K6

O RING 10

11

17KB1212

FITTING, HYD ELBOW

11

79K12

O RING 10

12

6815887

HOSE

13

7114072

HOSE

14

18KB1010

FITTING, HYD ELBOW

14

79K10

O RING 10

15

7109474

TUBE

16

7114490

HOSE

17

7114337

TEE

17

79K12

O RING 10

18

13K5

TEE

19

36K5

CAP
