Запчасти Bobcat S-Series MOTOR CARRIER (Drive Motor Mount Assy.) (Single Speed Motor) (W/O Speed Sensor) DRIVE TRAIN

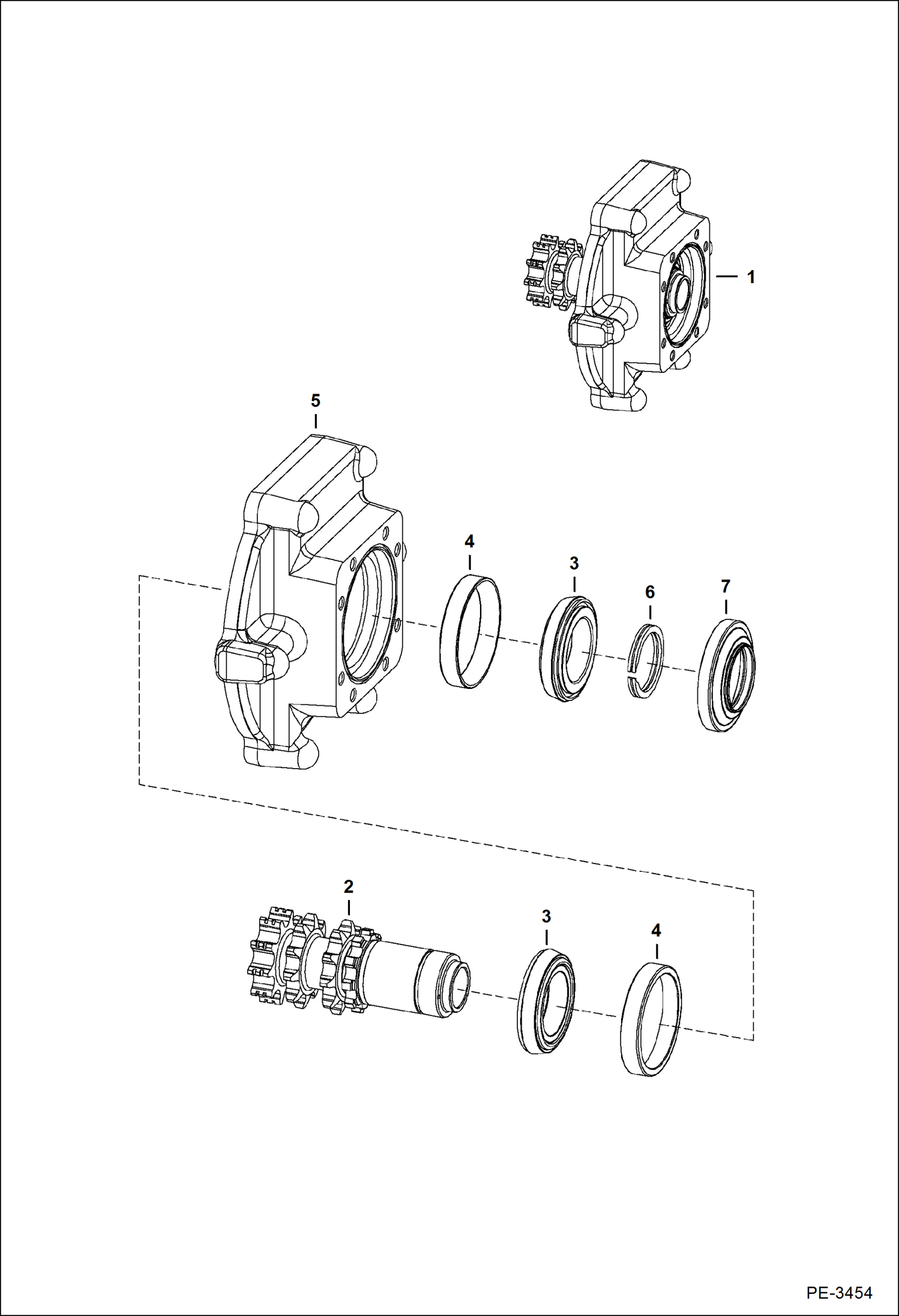

Схема запчастей Bobcat S-Series - MOTOR CARRIER (Drive Motor Mount Assy.) (Single Speed Motor) (W/O Speed Sensor) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7218166

CARRIER, MOTOR NLA - Ref. 2-7 - Was 7148363 - A

2

7161187

SHAFT, TRANS double snap ring groove - Was 6733621 - A

3

6632218

CONE, BEARING

4

6632541

RACE

5

HOUSING NLA - Order Ref. 1 - Was 7218165 - A

6

6571851

SNAP RING 0.118'' thickness

6

6571852

SNAP RING 0.125'' thickness

7

6705847

SEAL, OIL

Выбрано товаров: 8
