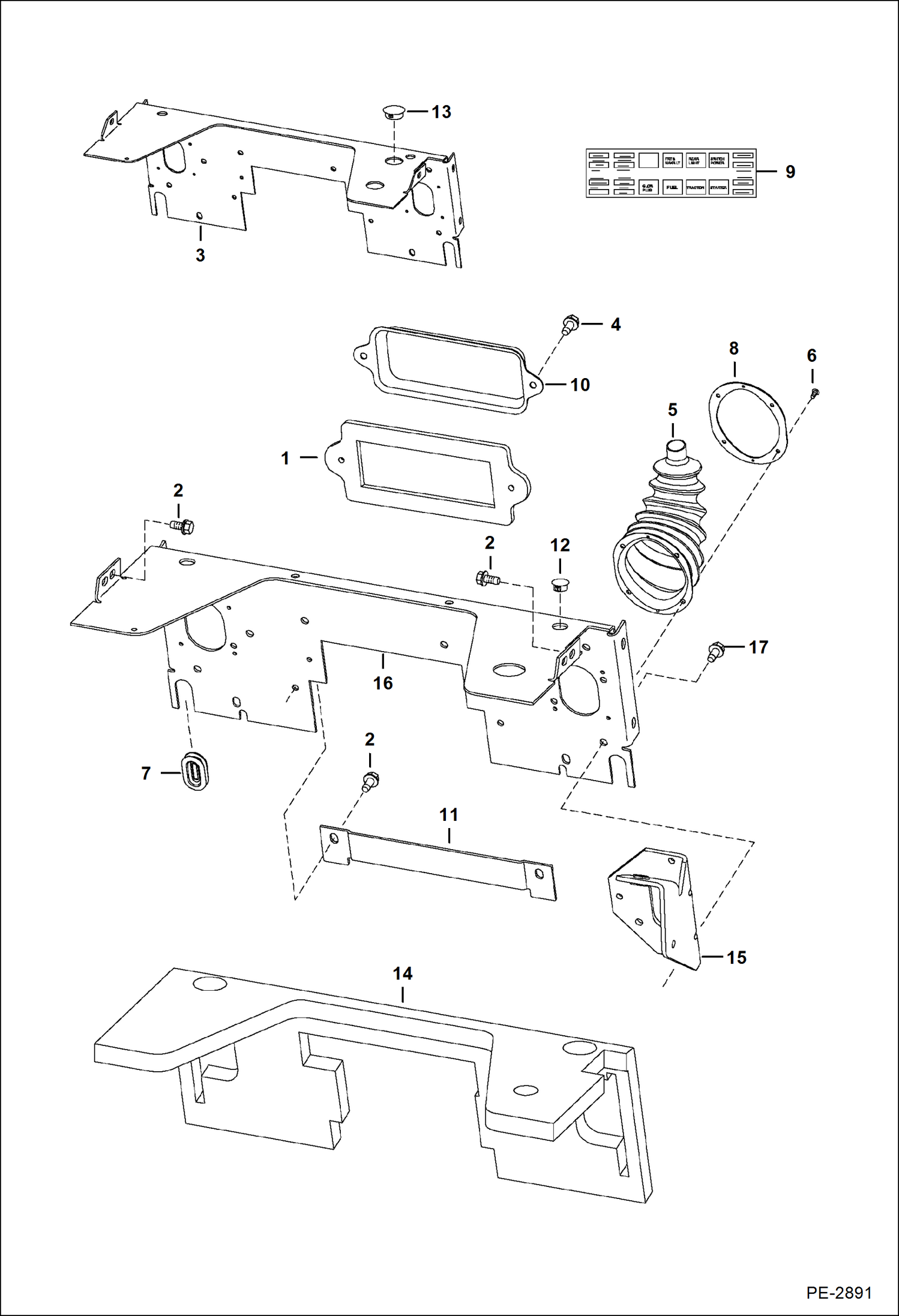

Запчасти Bobcat S-Series PANELS (Manual Controls) MAIN FRAME

1

6725302

GASKET

2

84G3712

BOLT 5

3

SHIELD NLA - Uses Ref. 13 to plug hole designed for a model never manufactured - Order Ref. 16 - Was 7106687

4

84G3112

BOLT 5

5

6532127

BOOT W/Ref. 8

6

6630207

RIVET 5

7

6577961

GROMMET

8

PLATE NLA - Order Ref. 5

9

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

10

6716621

COVER Was 7176546 - A

11

7101189

COVER

12

6648348

PLUG 0.81'' dia hole

13

6681469

PLUG 35 mm (1.38'') dia hole

14

7139184

INSULATION steering panel - Was 6718489 - A

15

BRACKET See Illustration HAND CONTROLS/ PE2366 R.H. - Was 6733022 - A

15

BRACKET See Illustration HAND CONTROLS/ PE2366 L.H. - Was 6733024 - A

16

7139183

SHIELD

17

84G3708

SCREW
