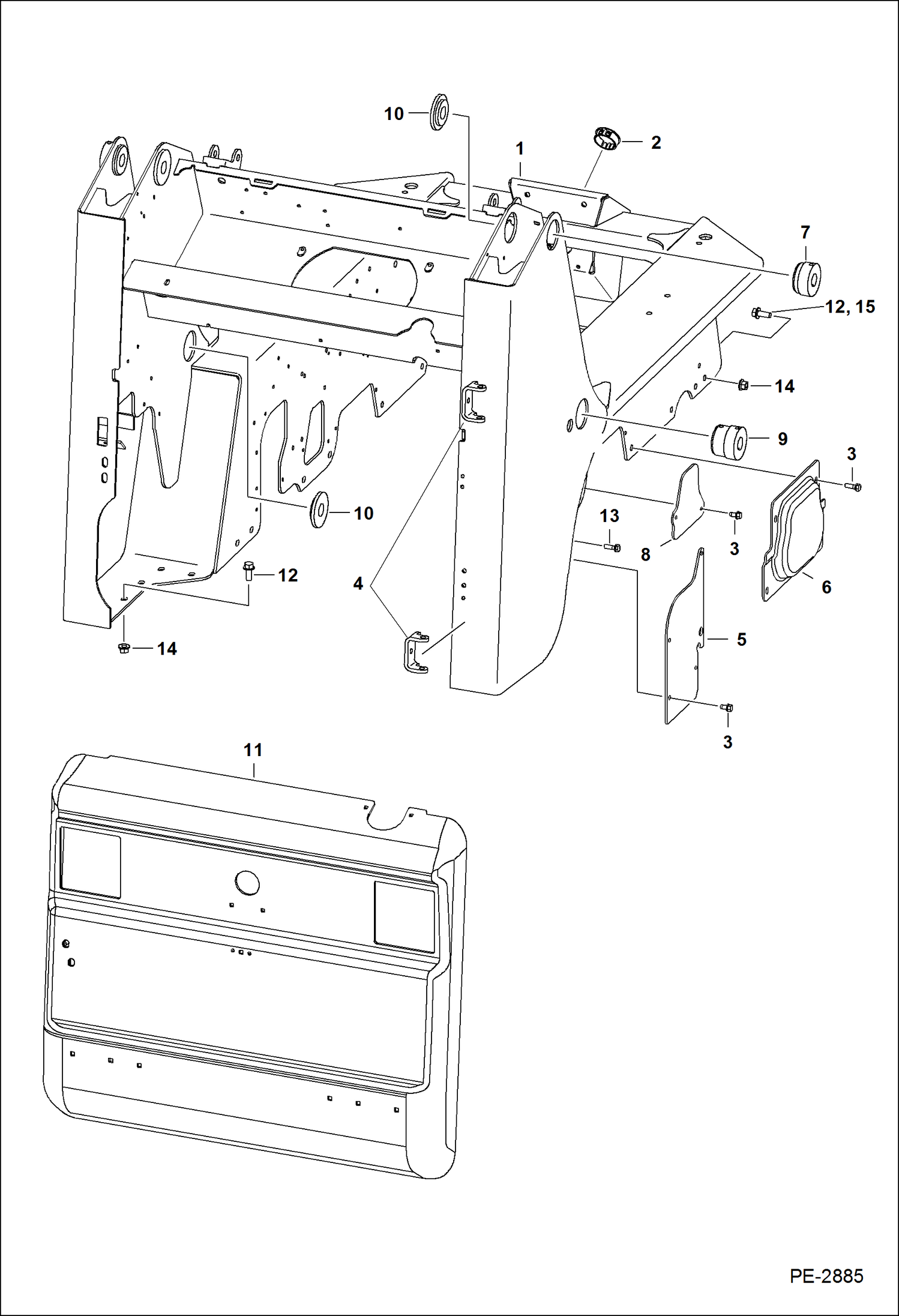

Запчасти Bobcat S-Series MAIN FRAME MAIN FRAME

1

7108034

MAIN FRAME

2

6718796

PLUG Bobcat head

3

84G3712

BOLT 5

4

6708987

HINGE, WELD-ON

5

7110380

SHIELD, RH RH

5

7152006

SHIELD LH - Was 6733912 - A

6

6733701

COVER

7

6731578

BUSHING, WELD-ON

8

6735344

SHIELD

9

6737272

BUSHING, WELD-ON Was 6702584 - B,D

10

6702583

BUSHING, WELD-ON

11

6729991

REAR DOOR See Illustration REAR DOOR/ PE2252

12

31C824

BOLT 10

12

31C824

BOLT 10

13

31C836

BOLT

14

83D8

NUT 5

15

31C820

BOLT
