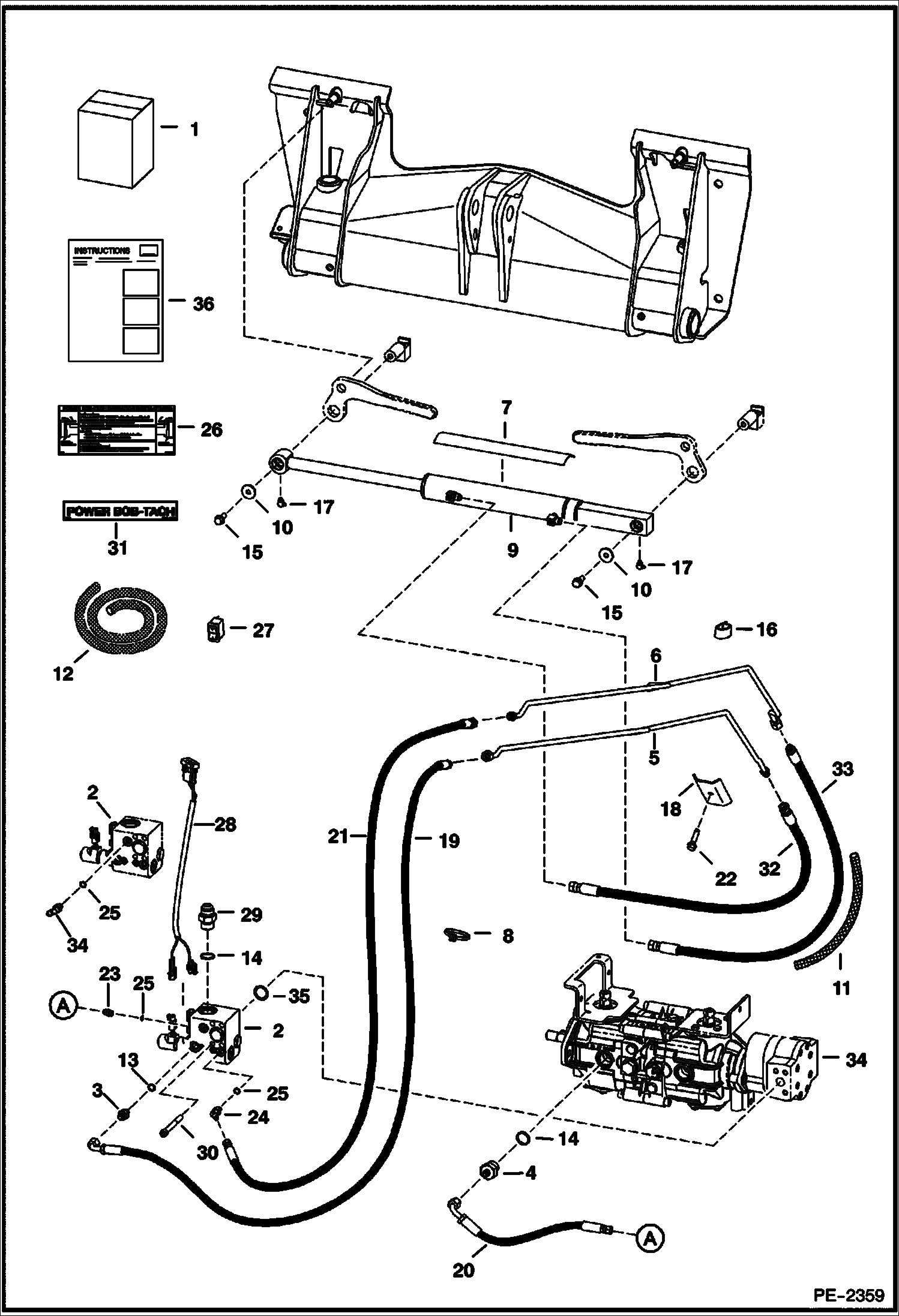

Запчасти Bobcat S-Series POWER BOB-TACH KIT ACCESSORIES & OPTIONS

1

7102101

KIT, POWER BOB-TACH Ref. 2-34

2

VALVE See Illustration POWER BOB-TACH/ MS1835

3

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13

4

15KB0612

FITTING, HYD CONNECTOR W/Ref. 14

5

6737172

TUBE

6

6737173

TUBE

7

6555341

SAFETY TREAD

8

6624289

STRAP, TIE

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

COVER NLA - 32''(813 mm) long - Order Ref. 12

12

6656155

HOSE COVER bulk - sold per foot

13

79K6

O RING 10

14

79K12

O RING 10

15

35C616

BOLT 5

16

31H42

CLIP

17

12H25

FITTING

18

6719884

BRACKET

19

6806987

HOSE

20

6806403

HOSE 16'' (406,4 mm) long - manual controls

20

7100044

HOSE 17.75'' (450,9 mm) long - not in kit

20

7110367

HOSE 1143 mm (45'') long - SJC

21

6731082

HOSE

22

84G3724

BOLT Was 84G3716 - A

23

15KB0404

FTG HYD S Connector W/Ref. 25

24

18KB0404

FTG HYD ELBOW 45 W/Ref. 25 - Was 7109882 - B

25

79K4

O RING 10

26

6725907

DECAL, OPERATION power Bob-Tach

27

6676732

SWITCH vertical

28

6730770

HARNESS

29

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14

30

73G656

SCREW

31

6719888

DECAL power Bob-tach

32

6725198

HOSE

33

7101738

HOSE Use W/Ref. 9 - base end fitting is 0.562'' - 18 UNF

33

7156766

HOSE, HYD ASSY Use W/Ref. 9 - base end fitting is 0.75'' - 16 UNF

34

17KB0404

FTG HYD ELBOW 90 W/Ref. 25

35

55K214

O-RING

36

6902815

INSTRUCTIONS
