Запчасти Bobcat S-Series EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

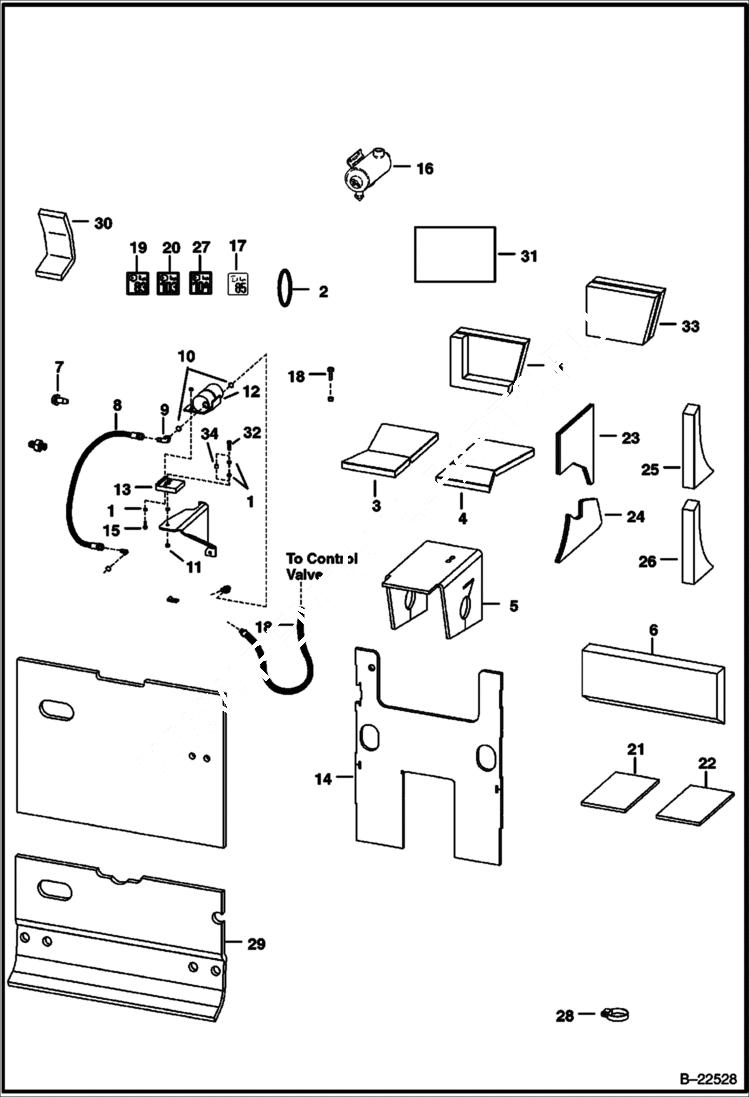

Схема запчастей Bobcat S-Series - EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6562619

BUSHING

2

6703483

PULLEY, FAN DRIVE IDLER fan drive - 5.25'' (133,4 mm) OD

3

6732722

INSULATION cross member - L.H.

4

6732723

INSULATION cross member - R.H.

5

6715372

INSULATION pedal

6

6725316

INSULATION transmission

7

84G3716

SCREW 5

8

6729144

HOSE pump to hyd. muffler

9

17KB1212

FITTING, HYD ELBOW W/Ref. 10

10

79K12

O RING 10

11

85D6

NUT, 5

12

6659982

MUFFLER hydraulic

13

6705333

MOUNT rubber

14

6719372

INSULATION steering panel

15

35C616

BOLT 5

16

6735285

AIR CLEANER

17

6579385

DECAL 85db

18

6729155

HOSE muffler to control valve

19

6579399

DECAL 83 db noise level

20

6579403

DECAL 103 db noise level

21

6705849

INSULATION brace

22

6705850

INSULATION brace

23

6719332

INSULATION blower housing

24

6704769

INSULATION blower housing

25

6707923

INSULATION upright

26

6707924

INSULATION upright

27

6731994

DECAL, DECIBEL noise level - 104db

28

42H44

HOSECLAM5

29

6715106

INSULATION rear door

30

6703331

INSULATION air inlet

31

6715371

INSULATION transmission

32

84G3724

BOLT

33

6705848

INSULATION transmission

34

6715744

BUSHING

Выбрано товаров: 34
