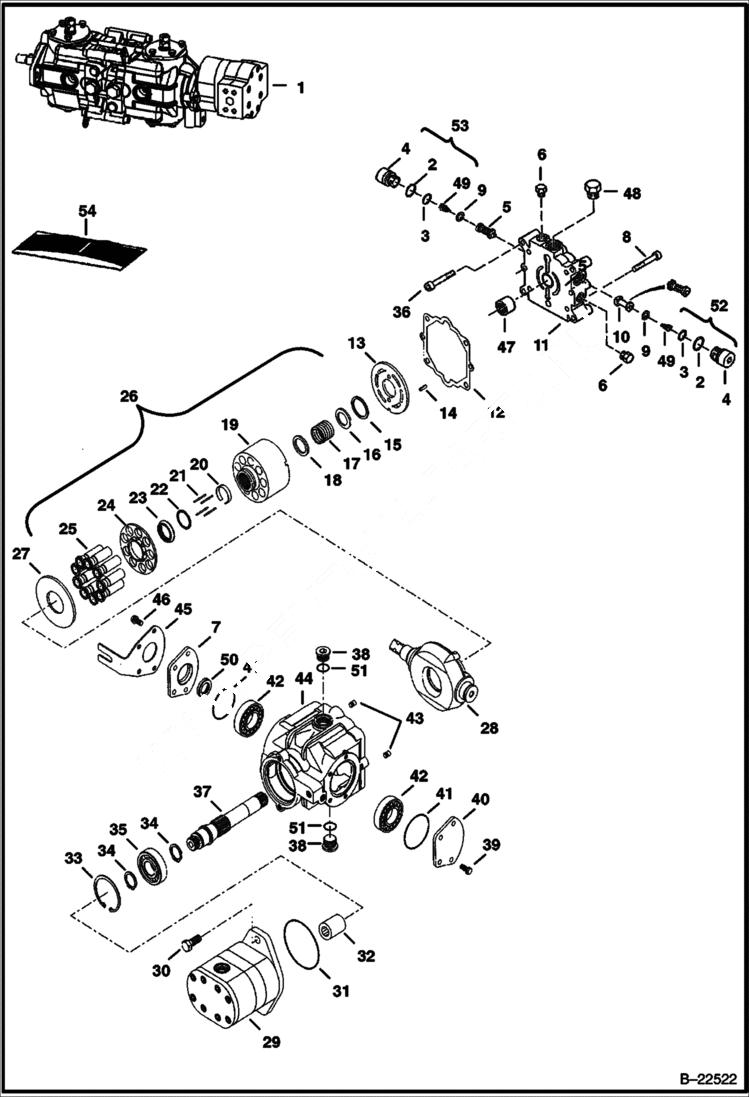

Запчасти Bobcat S-Series HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP NLA - Model 4445192 - Order 6686702 pump or 6686702REM pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6687632 - A

1

6686702

PUMP, HYD TANDEM Model 4445187

1

6686702REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

6657028

O-RING

3

79K8

O RING 10

4

PLUG NLA - Order Ref. 52 or 53

5

RELIEF VALVE NLA - 5000 PSI (345 bar)- Order Ref. 53

6

6645086

PLUG

7

6657067

COVER

8

6650637

BOLT

9

RETAINER NLA - Order Ref. 52 or 53

10

CHECK VALVE NLA - poppet - Order Ref. 52

11

6669405

CAP, END

12

6650634

GASKET

13

6687773

PLATE, PUMP HYD

14

6650636

PIN

15

RETAINER NLA - Order Ref. 26

16

WASHER NLA - Order Ref. 26

17

SPRING NLA - Order Ref. 26

18

WASHER NLA - Order Ref. 26

19

BLOCK NLA - Order Ref. 26

20

6650630

RETAINER

21

6650629

PIN

22

6666338

WASHER

23

RETAINER NLA - Order Ref. 26

24

RETAINER NLA - Order Ref. 26

25

PISTON ASSY NLA - Order Ref. 26

26

6671512

GROUP, ROTARY

27

6650627

PLATE

28

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

29

6687773

PLATE, PUMP HYD

30

6666339

BOLT

31

6645080

O-RING

32

6671509

COUPLER

33

669863

RING, SNAP

34

658128

RING, SNAP

35

654299

BEARING

36

6652018

BOLT

37

6669407

SHAFT

38

47K8

PLUG W/Ref. 51

39

6650668

BOLT

40

6657068

COVER

41

6660814

O-RING

42

6669411

BEARING

43

6518460

PIN

44

6669403

HOUSING

45

7109904

BRACKET Was 6734742 - A

46

6650668

BOLT

47

6650635

BEARING

48

6645086

PLUG

49

SPRING NLA - Order Ref. 52 or 53

50

6678226

SEAL, OIL

51

79K12

O RING 10

52

6670684

CHECK VALVE

53

6671510

RELIEF VALVE

54

6671516

KIT, SEAL Ref. 2, 3, 12, 31, 41 & 50 - Also includes Ref. 7, 9, 13, 34, 35, 42, 43, 45, 46, 50, 51 & 60 on previous page
