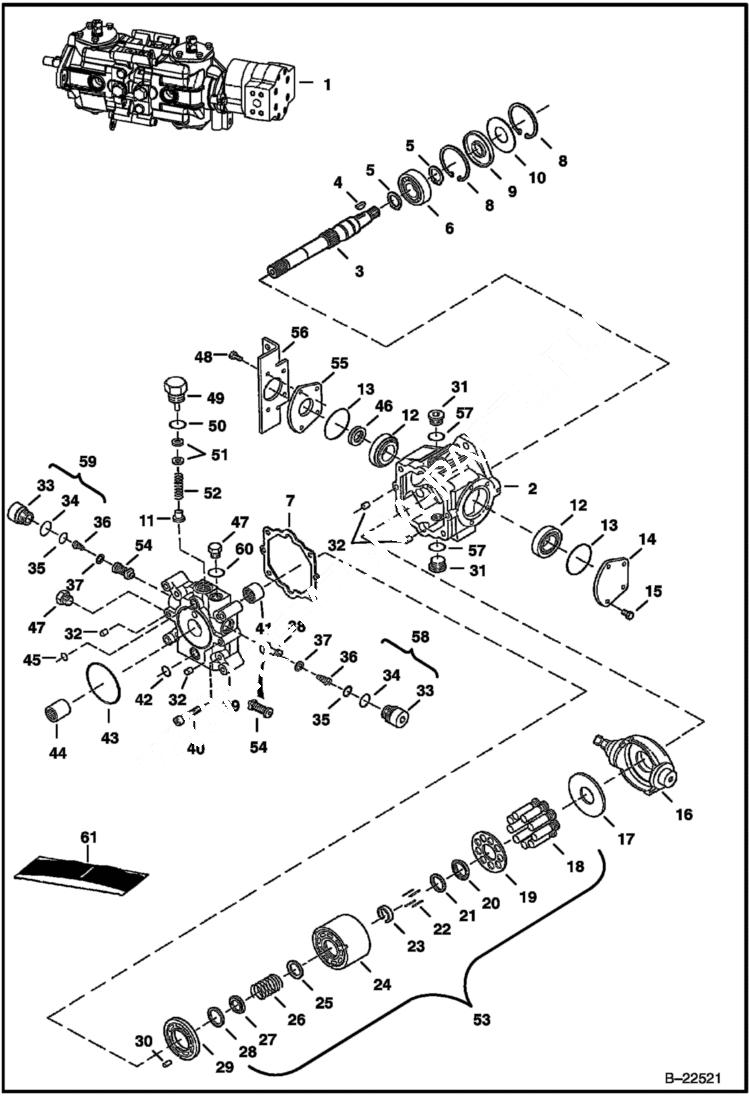

Запчасти Bobcat S-Series HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP NLA - Model 4445192 - Order 6686702 pump or 6686702REM pump - must use 6576196 bracket & 6706096 bracket from original pump - Was 6687632 - A

1

6686702

PUMP, HYD TANDEM Model 4445187

1

6686702REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

6669402

HOUSING

3

6682260

SHAFT W/square key

4

6682261

KEY

5

658128

RING, SNAP

6

654299

BEARING

7

6650634

GASKET

8

669863

RING, SNAP

9

6687191

SEAL, OIL

10

6669409

WASHER

11

6650652

POPPET charge relief

12

6669411

BEARING

13

6660814

O-RING

14

6657068

COVER

15

6650668

BOLT

16

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

17

6650627

PLATE

18

PISTON ASSY NLA - Order Ref. 53

19

RETAINER NLA - Order Ref. 53

20

RETAINER NLA - guide - Order Ref. 53

21

6666338

WASHER

22

6650629

PIN

23

6650630

RETAINER

24

BLOCK NLA - Order Ref. 53

25

WASHER NLA - Order Ref. 53

26

SPRING NLA - Order Ref. 53

27

WASHER NLA - Order Ref. 53

28

WASHER NLA - Order Ref. 53

29

6687774

PLATE, PUMP HYD

30

6650636

PIN

31

47K8

PLUG W/Ref. 57

32

6518460

PIN

33

PLUG NLA - Order Ref. 58 or 59

34

6657028

O-RING

35

79K8

O RING 10

36

SPRING NLA - Order Ref. 58 or 59

37

RETAINER NLA - Order Ref. 58 or 59

38

CHECK VALVE NLA - poppet - Order Ref. 58

39

7023162

CAP, END Was 6669406 - A

40

6650637

BOLT

41

6650635

BEARING

42

6650647

O-RING

43

6645081

O-RING

44

6650675

COUPLER

45

6650646

O-RING

46

6678226

SEAL, OIL

47

6645086

PLUG W/Ref. 60

48

6671518

BOLT

49

6650648

PLUG charge relief

50

79K10

O RING 10

51

6669410

KIT, SHIM charge relief

52

6658301

SPRING

53

6671512

GROUP, ROTARY

54

RELIEF VALVE NLA - 5000 PSI (345 bar)- Order Ref. 59

55

6657067

COVER

56

7109905

BRACKET Was 7103314 - A

57

79K12

O RING 10

58

6670684

CHECK VALVE

59

6671510

RELIEF VALVE

60

6661481

O-RING

61

6671516

KIT, SEAL Ref. 7, 9, 13, 34, 35, 42, 43, 45, 46, 50, 51 & 60 - Also includes Ref. 2, 3, 12, 31, 41 & 50
