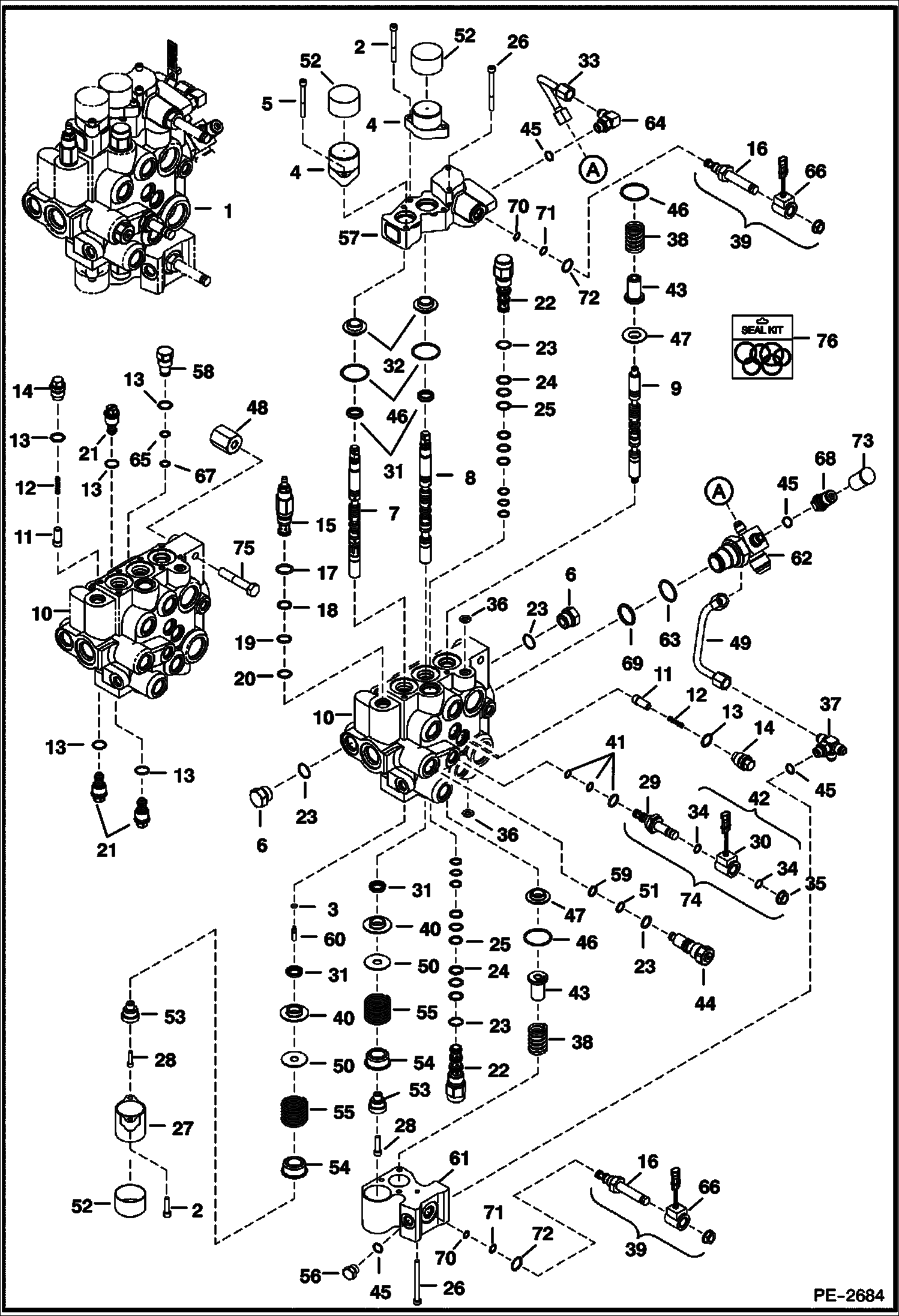

Запчасти Bobcat S-Series HYDRAULIC CONTROL VALVE (ACS) HYDRAULIC SYSTEM

1

VALVE See BTI363 - NLA - Was 7101844 - A

2

29G416

BOLT

3

54K20002

O'RING 10

4

7101345

BONNET, DETENT HYD VALVE

5

69G436

BOLT

6

24K7

PLUG W/Ref. 23

7

7209459

SPOOL, LIFT Was 7108241 - C

8

7108242

SPOOL, TILT Was 6815062 - A

9

7112383

AUX SPOOL Was 6814323 - B

10

BODY NSS

11

SEAT, CHECK VALVE NLA - 19 mm (0.75'') ID depth - Order 7166047 seat & Ref. 12 (7166339 spring) - Was 7106712

11

7166047

SEAT, CHECK VALVE 27,3 mm (1.08'') ID depth

12

6592117

SPRING, LOAD CHECK 31,4 mm (1.24'') long

12

7166339

SPRING, LOAD CHECK 44,4 mm (1.75'') long

13

79K8

O RING 10

14

7134520

PLUG load check - Was 6817707 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6688743

STEM, VALVE CONTROL W/Ref. 70-72 - Was 6688397 - A

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6684645

VALVE, ANTI CAV anti-cav - 3400-3600 PSI - W/Ref. 13

22

6689739

VALVE pilot operated - W/Ref. 23-25 - Was 6668765 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10

26

29G444

BOLT

27

6803092

BONNET

28

7102652

SCREW

29

6667687

VALVE, STEM SOLENOID

30

6671025

COIL 8 volt

31

6683274

SEAL, SPOOL 10

32

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

33

6815621

TUBE

34

54K20028

O RING 10

35

6668820

NUT

36

55K204

O RING 10

37

7102019

CROSS W/Ref. 45

38

7121399

SPRING Was 6810950 - A

39

6686868

SOLENOID W/Ref. 16, 66 & 70-72

39

6685603

KIT, SEAL

40

6595663

BUSHING

41

6669732

KIT, SEAL

42

6675559

COIL assy. - W/Ref. 30, 34 & 35

43

6814694

RETAINER spring

44

6685157

VALVE W/Ref. 23, 51 & 59

45

79K6

O RING 10

46

1K127

O-RING 10 Was 93K127 - A

47

7138376

BUSHING Was 6804920 - B

48

7103678

PAD

49

6815308

TUBE

50

7211397

WASHER, SPRING Was 6587523 - A

51

25K20020

O RING 10

52

6662848

CAP

53

6592109

ADAPTER

54

6592100

COLLAR

55

6587580

SPRING

56

24K5

PLUG W/Ref. 45

57

BODY NSS

58

6816549

PLUG ASSY PORT RLF W/Ref. 13, 65 & 67

59

80K16

WASHER back-up

60

6801167

PLUG plastic - 0.69'' long

61

6814279

BLOCK spool centering

62

6814433

CROSS W/Ref. 45, 63 & 69

63

79K16

O RING 10

64

17KB0606

FITTING W/Ref. 45

65

80K13

WASHER back-up

66

6678891

COIL 10 volt - W/nut

66

6691022

NUT Was 6690705 - A

67

58K013

O-RING

68

6684125

COUPLER

69

58K022

O-RING 10

70

79K7

O RING 10

71

58K11

O RING 10

72

58K012

O-RING 10

73

6685602

CAP

74

SOLENOID Ref. 29, 30, 34, 35 & 41

75

17C844

BOLT

76

6816252

SEAL KIT one spool - Ref. 3, 26, 31 & 46

76

6661328

SEAL KIT main relief - Ref. 17-20 - main relief

76

6809425

SEAL KIT Ref. 13 & 23-25

76

6816253

KIT, SEAL complete - Ref. 2, 13, 17-20, 23-25, 26, 31, 34, 36, 45 & 46 - also Order 6816252 seal kit
