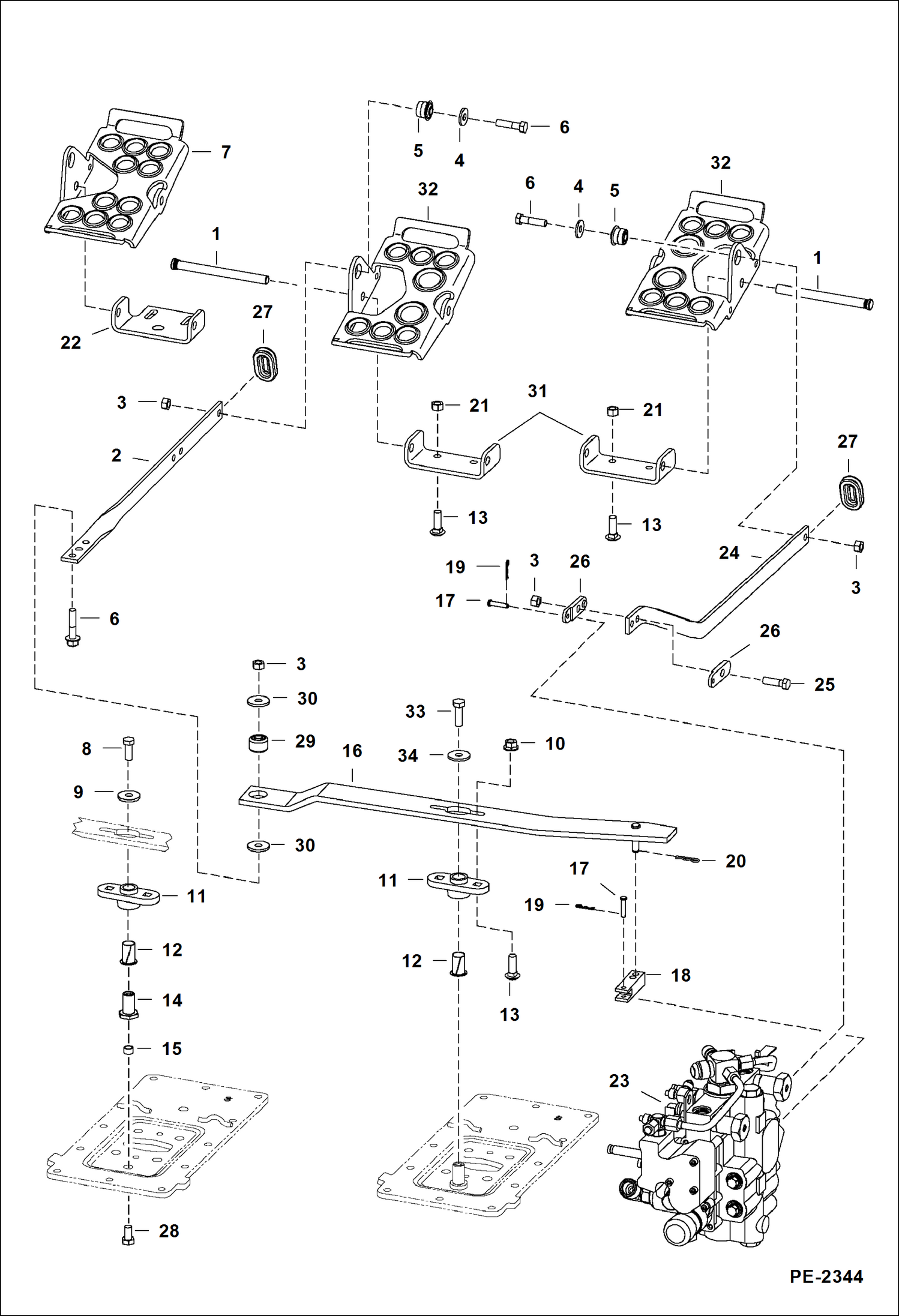

Запчасти Bobcat S-Series CONTROL PEDALS HYDRAULIC SYSTEM

1

6564657

PIN

2

6576302

BAR

3

95D6

NUT

4

6563914

WASHER

5

6665701

BUSHING, PRESS FIT

6

17C624

BOLT 5

7

PEDAL NLA - Order Ref. 32 - A

8

17C616

BOLT 5

9

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

10

53D6

NUT

11

6708043

BUSHING flange

12

6512026

BUSHING

13

37C620

BOLT

14

6706104

RETAINING NUT

15

6544654

BUSHING spacer

16

7101395

LINK ASSY

17

6564654

PIN

18

6706105

YOKE

19

6513495

COTTER PIN

20

1306637

CLIP

21

57D6

NUT 5

22

6726679

MOUNT

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2683

24

7101394

LINK

25

17C620

BOLT

26

6708009

LINK

27

6577961

GROMMET

28

17C612

BOLT 5

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD

30

6737388

WASHER

31

7115220

MOUNT

32

7115219

PEDAL

33

17C612

BOLT 5

34

6557831

WASHER 0.15'' thick - 0.88'' OD
