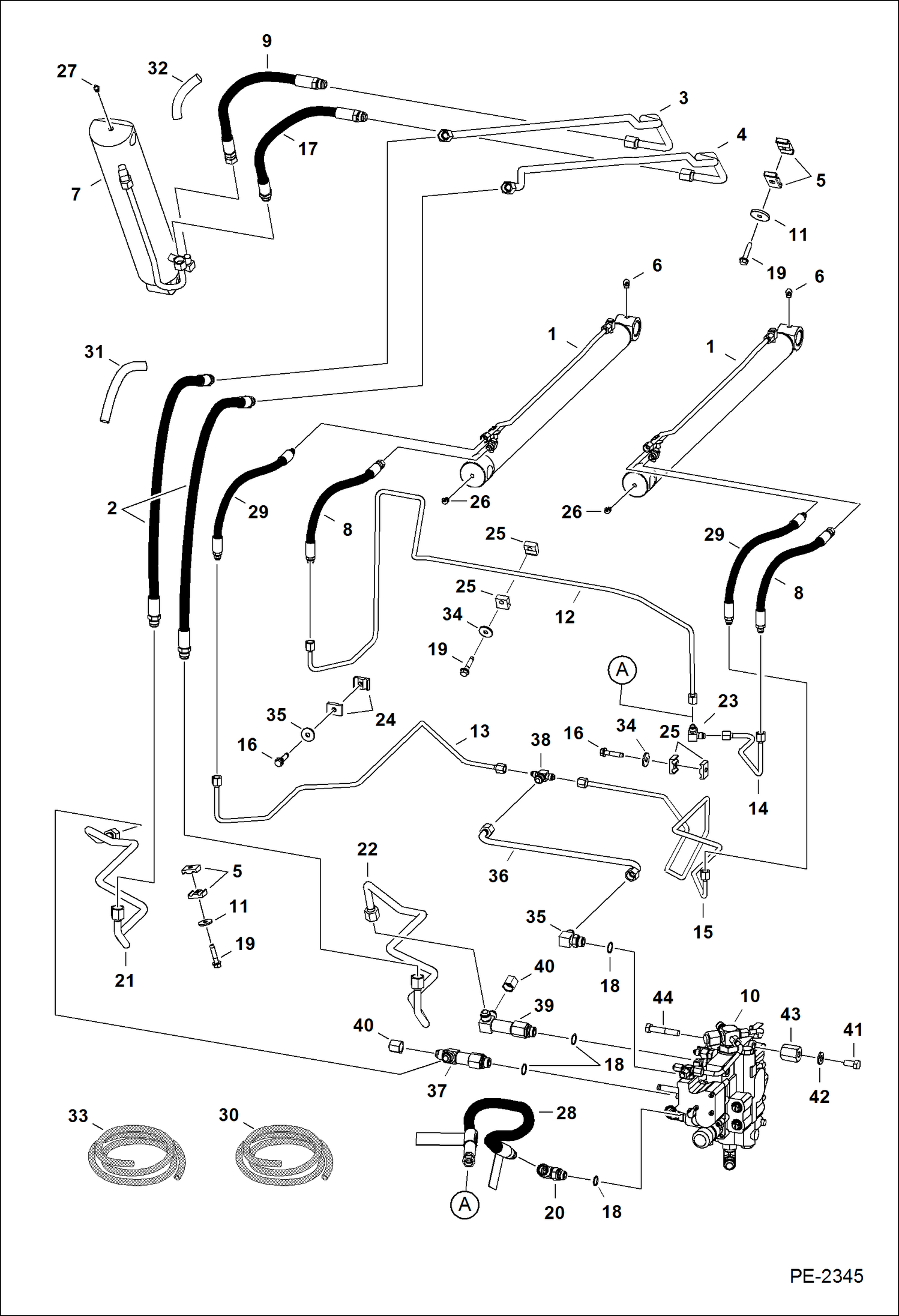

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ PE3175 LIFT

2

6735997

HOSE

3

6737170

TUBE

4

6737171

TUBE

5

6701893

CLAMP

6

12H15

FITTING, GREASE 5

7

CYLINDER See Illustration TILT CYLINDER/ TS1098 TILT

8

6736123

HOSE

9

6704336

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2683

11

872229

WASHER

12

6736010

TUBE

13

7156278

TUBELINE, HYD Was 6736122 - B

14

6736009

TUBE

15

6736008

TUBE

16

84G3724

BOLT

17

6704335

HOSE

18

79K10

O RING 10

19

84G3728

BOLT

20

6814531

ELBOW W/Ref. 18

21

6736007

TUBE

22

6736006

TUBE

23

6729903

TEE

24

6726277

CLAMP

25

6727707

CLAMP

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6737628

HOSE available only as an assembly W/two danger decals installed

28

6809511

DECAL, DANGER

29

6736124

HOSE

30

6705749

SHIELD bulk - sold per foot

31

SHIELD NLA - 30'' (914,4 mm) - Order Ref. 30

32

COVER NLA - 18'' (457,2 mm) - Order Ref. 33

33

6656155

HOSE COVER bulk - sold per foot

34

619021

WASHER, 5

35

17KB0810

FITTING, HYD ELBOW W/Ref. 18

36

7102047

TUBE

37

7112910

ELBOW W/Ref. 18 - Was 7101631 - A

38

6727659

TEE

39

6736099

TEE W/Ref. 18

40

36K7

FITTING

41

17C816

BOLT Was 35C000620B - B

42

25E21

WASHER 5

43

7103678

PAD

44

17C844

BOLT
