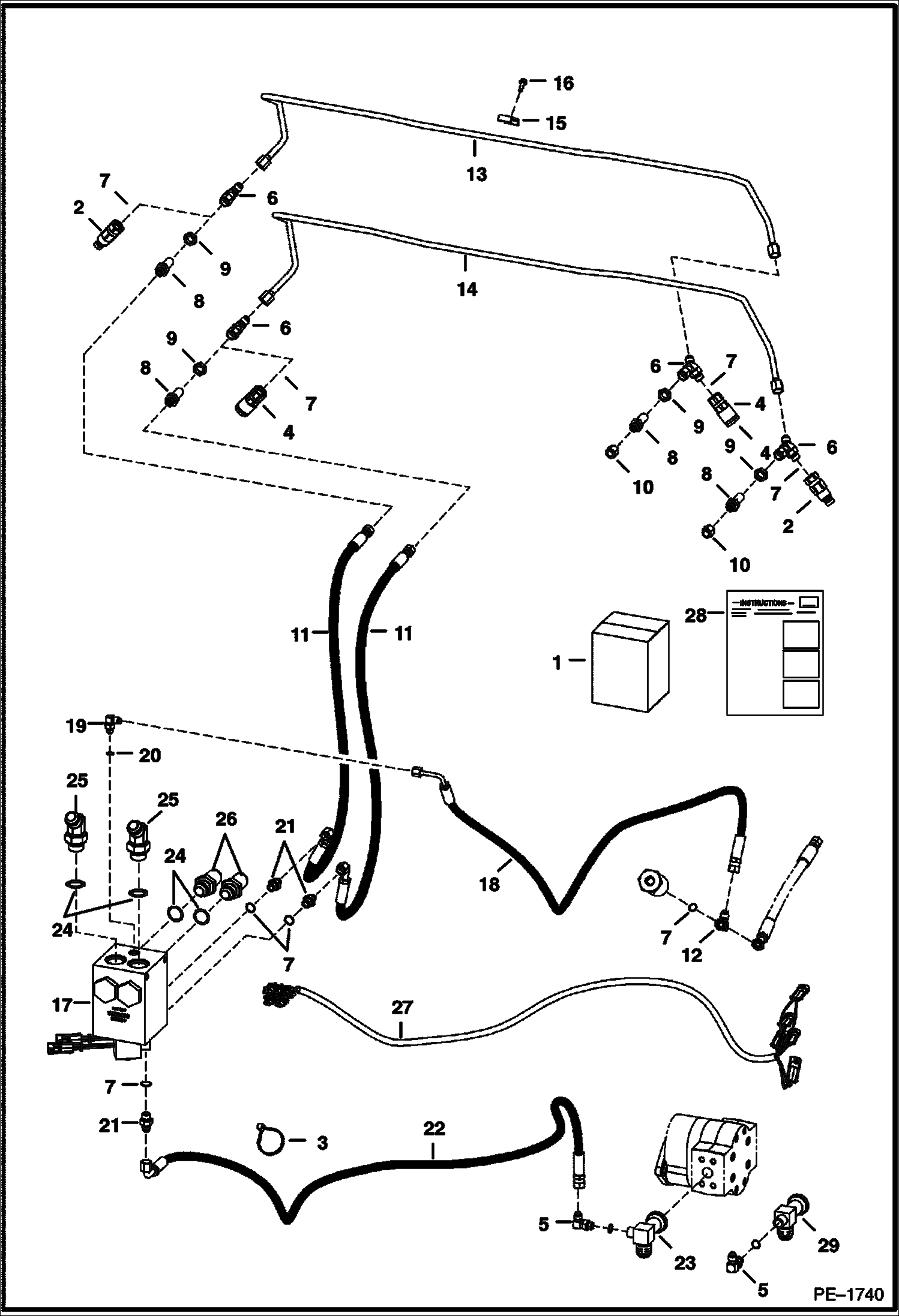

Запчасти Bobcat S-Series REAR AUXILIARY KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-22 & 25-28 - Order 7110305 Kit - Was 6732937 - A

1

7110305

KIT, REAR AUX Ref. 2-28

2

6667804

COUPLER, FF MALE

2

6669657

SEAL KIT

3

6624289

STRAP, TIE

4

6667803

COUPLER, FF FEMALE

5

17KB0606

FITTING W/Ref. 7

6

6706220

TEE W/Ref. 7

7

79K6

O RING 10

8

51E0404

ADAPTER

9

61E04

NUT

10

63E04

CAP

11

6706089

HOSE

12

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 7

13

6718570

TUBE

14

6718571

TUBE

15

6500989

CLAMP

16

84G3716

SCREW 5

17

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

18

6727108

HOSE

19

17KB0404

FTG HYD ELBOW 90 W/Ref. 20

20

79K4

O RING 10

21

15KB0606

FITTING, HYD CONNECTOR W/Ref. 7

22

6628337

HOSE Was 6728337 - B,D

23

7103952

TEE

24

79K12

O RING 10

25

18KB1212

FITTING, HYD ELBOW W/Ref. 24

26

45K8

ADAPTOR

27

6718645

HARNESS

28

6901814

INSTRUCTIONS

29

7103953

TEE Not in Kit - Use W/Ref. 1 (NLA/6732937 Kit) - Was 6717662 - A
