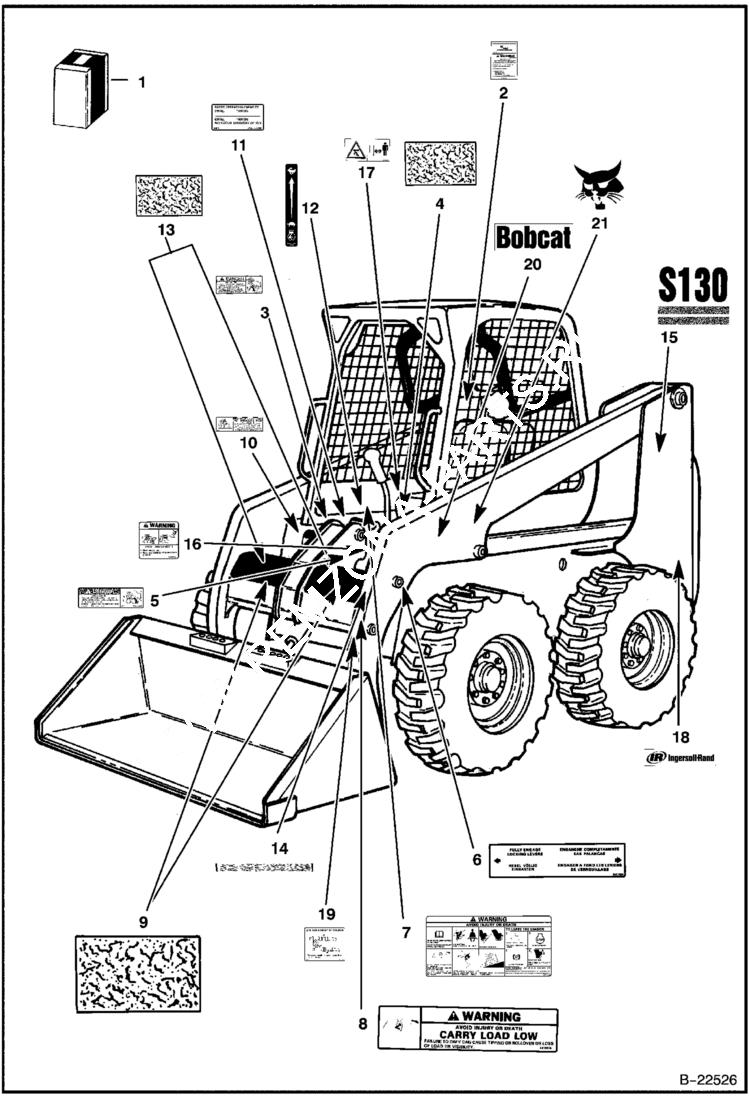

Запчасти Bobcat S-Series DECALS ACCESSORIES & OPTIONS

1

6902763

KIT decal

1

7108051AR

KIT decal - Was 6725366AR - B

1

7108051BR

KIT decal - Was 6725366BR - B

1

7108051JP

KIT decal - Was 6725366JP - B

1

7101415AR

KIT translation - Was 6725500AR - B

1

7101415BR

KIT translation - Was 6725500BR - B

2

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

3

6717343

DECAL, DANGER

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6702302

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728539

DECAL

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'') - not in kit

10

6702301

DECAL, DANGER

11

6727223

DECAL capacity - not in kit

12

6735140

DECAL, THROTTLE

13

6577949

SAFETY TREAD 6.8'' x 8.75'' - (172,7 mm x 222,3 mm)

14

6727917

SAFETY TREAD 32 x 267 mm (1.25 x 10.5'')

15

7100619

DECAL model

16

6710358

DECAL warning

17

6713507

DECAL stay clear -European - Not in Kit

18

DECAL NLA - IR Logo - Black - Was 6735864 - A

19

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

20

6731336

DECAL Bobcat - black

21

6731508

DECAL LH - Bobcat head - black
