1
6718808

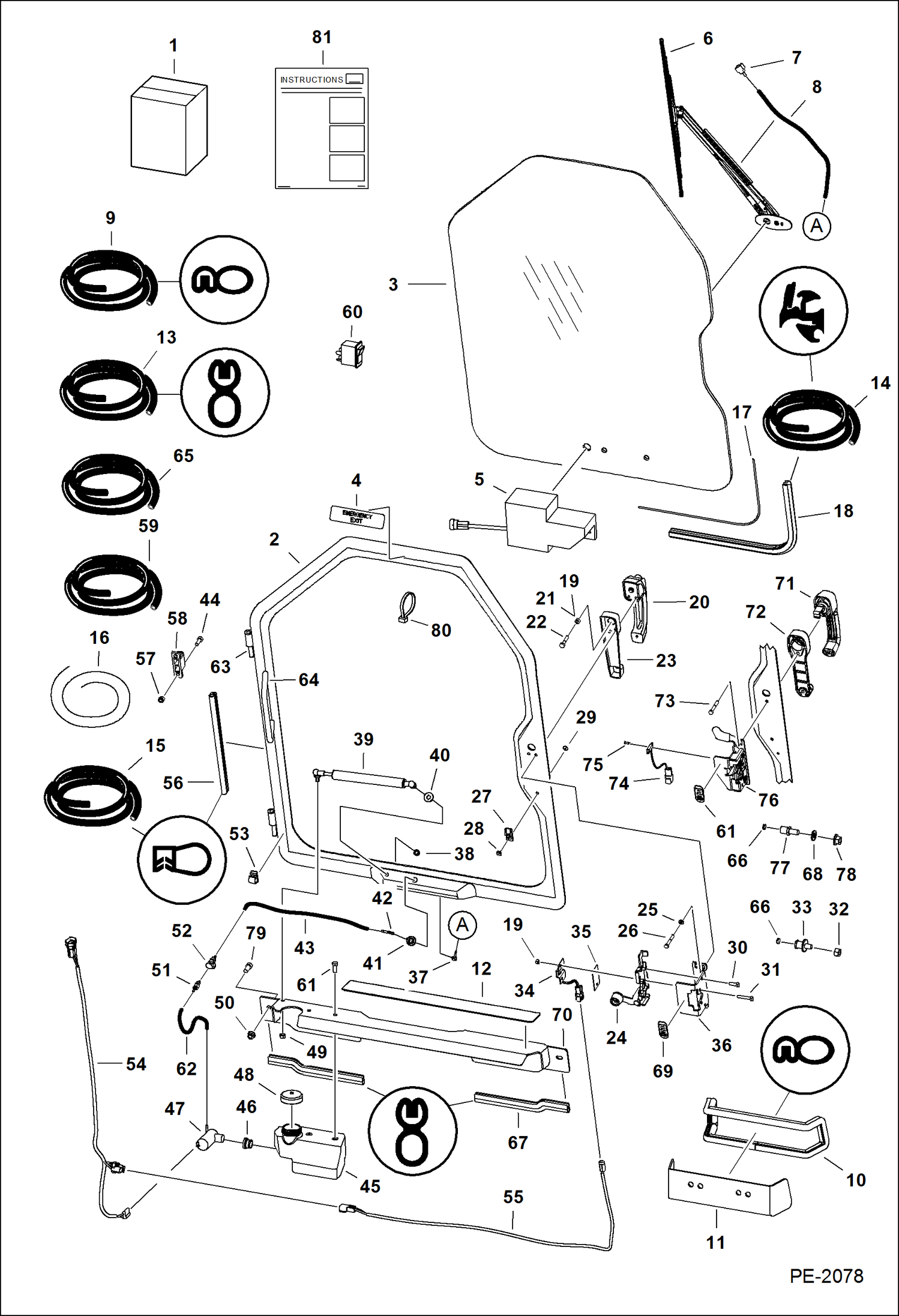

KIT door - Ref. 2-18, 27-29 & 37-80
2
DOOR See BTI369 - NLA - Uses 3 bolt mount handle
2
7109665
FRAME, DOOR CAB Uses 2 bolt mount handle - W/Ref. 63 & 64 - Also Order Ref. 4
3
WINDOW .25'' thick glass W/ .77'' dia wiper motor shaft hole - Order 6729776 - Was 6717360 - A
3
6729776
WINDOW, DOOR CURVED CAB See Illustration CAB DOOR/ MS1355 - 0.25'' thick glass - W/ 25,4 mm (1'') dia wiper motor shaft hole
4
6707852
DECAL, EXIT emergency
5
MOTOR See Illustration CAB DOOR/ MS1355 - wiper
6
ARM See Illustration CAB DOOR/ MS1355 - wiper
7
NOZZLE See Illustration CAB DOOR/ MS1355 - wiper arm mounted
8
HOSE See Illustration CAB DOOR/ MS1355
9
6555351
SEAL bulk - sold per foot
10
SEAL NLA - 40'' (1016mm) long - Order Ref. 9
11
6725200
PLATE
12
6717369
BRACKET for 3 bolt mount latch
13
6513152
SEAL bulk - sold per foot
14
6665568
EXTRUSION bulk - sold per foot
15
7011039
SEAL, BULK/FT 34 sold per foot - Was 6675558 - A
16
6554149
CORD, BULK/FT bulk - sold per foot
17
CORD NLA - window - 113.3'' (2878mm) - Order Ref. 16 - Also Order Ref. 80
18
SEAL NLA - window - 113.3'' (2878mm) - Order Ref. 14
19
1DM6
NUT For 2 bolt mount handle - Was 4DM6 - A
19
1DM6
NUT For 2 bolt mount handle - Was 4DM6 - A
20
HANDLE See BTI370 - NLA - 3 bolt mount - Was 6674667 - A
20
KEY NLA - ignition & rear door - includes two keys W/ring - Order 6693241 - Was 6709527 - A
20
6693241
KEY 10 ignition - single key W/O ring
21
SPACER See BTI370 - NLA - 3 bolt mount - Was 6717146 - A
22
17C420
BOLT
22
1CM630
BOLT
23
61D4
NUT 5
24
LATCH See BTI370 - NLA - 3 bolt mount - Was 6674666 - A
25
6EM60
WASHER, SPRING
26
1CM640
SCREW for 3 bolt mount handle
27
6665000
CLIP
28
6665321
RIVET male plastic
29
6665322
RIVET female plastic
30
1CM620
BOLT
31
4CM635
BOLT Was 1CM00635B - B
32
91D7
NUT 7/16'' thread - Use W/Ref. 33 (NLA 6677194 striker bolt)
33
BOLT NLA - striker - 7/16'' thread - Order Ref. 77 (7109664 striker bolt), Ref. 78 (51DM12 nut) & Ref. 68 (18EM1224 washer) - Was 6677194 - A
34
6731212
SENSOR door - for Ref. 27 (NLA 6674666 latch)
35
6718520
COVER latch
36
6542731
SAFETY TREAD
37
6676500
ELBOW
38
46D5
NUT acorn
39
7157893
GAS SPRING Was 6682586 - A
39
6678548
SOCKET ball
39
6649244
BALL STUD
39
6649245
RETAINER spring
40
25E16
WSHR
41
6676499
GROMMET wiper
42
6676917
ELBOW
43
HOSE NLA - 20.25'' (514,4 mm) long - Order Ref. 59
44
17C512
BOLT 5
45
TANK NLA - Washer - Order 7133211 & (2) Ref. 61 (35C-408 bolt) - Was 6730830 - A
45
7133211
TANK, WASHER Was 6736875 - A
46
6666766
GROMMET
47
6664554
PUMP, WIPER WASHER
48
6674993
CAP vented
49
61D5
NUT
50
61D6
NUT 5
51
6675299
COUPLER insert
52
6675298
COUPLER, BODY body
53
6675378
CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers
53
6675378
CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers
54
HARNESS NLA - wiper - Use W/ 6677835 motor - Order 7104465 harness & 7106277 harness - Was 6730885 - A
54
7106277
WIPER HARNESS wiper
55
7104465
DOOR SWITCH HARNESS door sensor
56
SEAL NLA - 127.3'' (3233 mm) - Order Ref. 15
57
59D5
NUT 5
58
6717593
HINGE base
59
6676003
HOSE, BULK/FT black - 0.109'' ID - sold per foor
60
6665707
SWITCH front wiper
61
35C408
BOLT .25 dia. - Use W/Ref. 45 (NLA/6736875 tank & 7133211 tank)
62
HOSE NLA - washer - 4.25'' (108 mm) long - Order Ref. 65
63
6718376
HINGE door
64
7138347
HANDLE grab - Was 6718521 - B
65
6708310
HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot
66
6677192
SENSOR, MAGNETIC
67
SEAL NLA - threshold - 11'' (279 mm) - Order Ref. 13
68
18EM1224
WASHER Use W/Ref. 77 (7109664 striker bolt)
69
DECAL, SAFETY NLA - door sensor - Was 7110316 - A
70
6725042
SHIELD
71
7109662
HANDLE, LATCH DOOR 2 bolt mount
72
7109663
SPACER 2 bolt mount
73
1CM640
SCREW for 2 bolt mount handle
74
6728459
SENSOR, DOOR Use W/Ref. 76 - Also Order (2) of Ref. 75
75
6677193
RIVET plastic
76
7109661
LATCH, DOOR W/SENSOR 2 bolt mount - W/Ref. 74
77
7109664
BOLT striker - 12 mm thread - for latch W/ sensor
78
51DM12
NUT 12 mm thread
79
17C612
BOLT 5
80
6610510
TIE
80
6624289
STRAP, TIE Use W/doors W/welded-on retainers
81
6900854
INSTRUCTIONS - Was 6901013 - B,D
