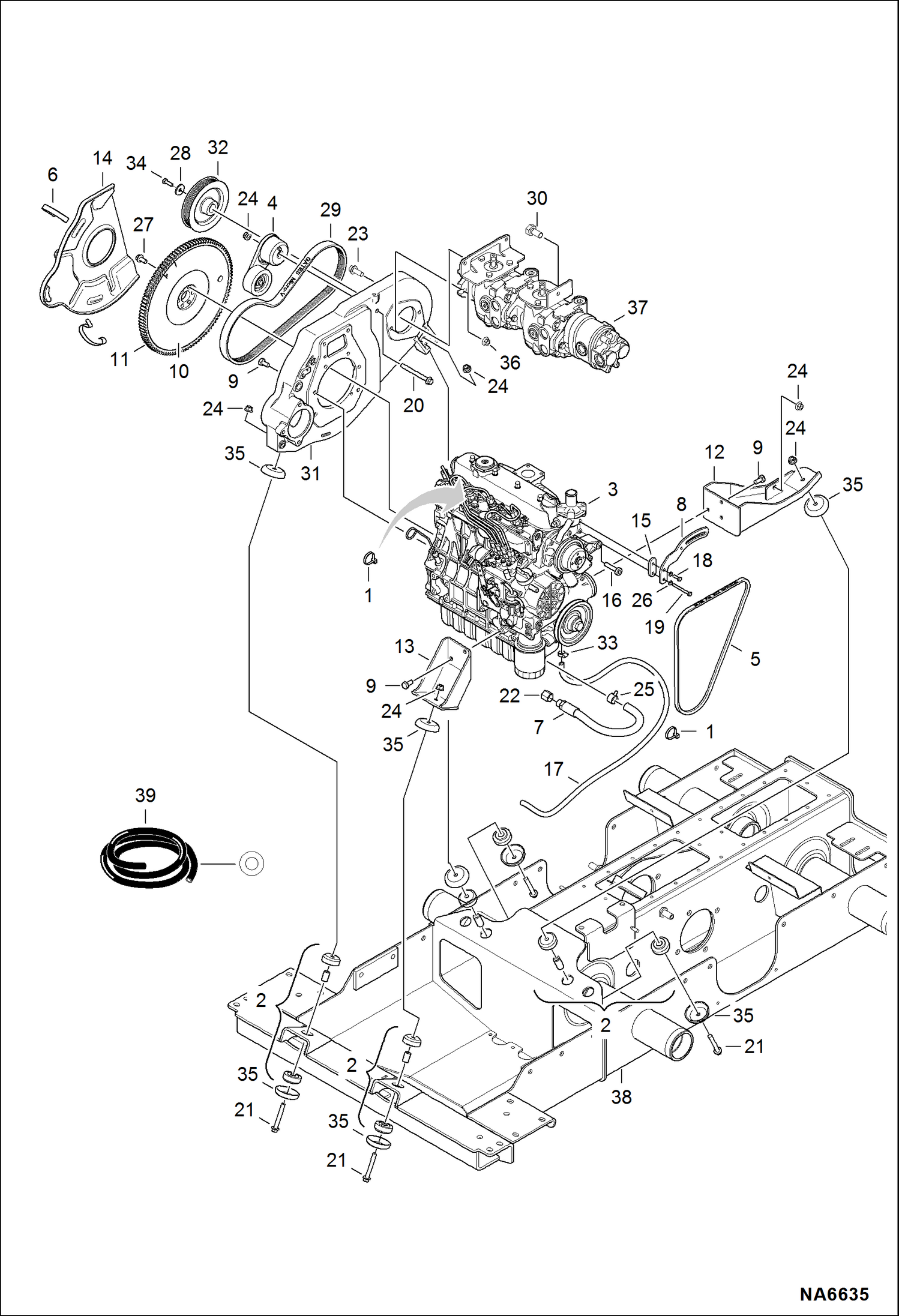

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive System & Engine Mounts) POWER UNIT

1

6624289

STRAP, TIE

2

6688383

DAMPER VIBRATION

3

ENGINE V1505 KUBOTA See Illustration ENGINE & GASKET KITS/ EM9051

4

6689611

IDLER MICRO-V

5

6690143

BELT ALTERNATOR

6

6703022

CLIP

7

6715530

HOSE

8

6730867

BRACKET

9

6733378

SCREW

10

7110640

FLYWHEEL ASSY ENG W/Ref. 11

11

6510470

RING GEAR

12

7111402

ENGINE MOUNT ASSY

13

7111406

ENGINE MOUNT ASSY

14

7115767

SHIELD DRIVE

15

7129969

WASHER PLATE ALT

16

7130342

BUSHING ALTERNATOR

17

HOSE, WATER DRAIN NLA - 860 mm (33.9'') long - Order Ref. 39

18

1CM620

BOLT

19

1CM665

BOLT

20

29CM10100

SCREW, HEX

21

29CM1070

BOLT

22

36K6

CAP

23

1CM1025

BOLT

24

51DM10

NUT

25

5HM20

CLAMP

26

6EM60

WASHER, SPRING

27

6661636

BOLT

28

619021

WASHER, 5

29

7162825

BELT, MICRO-V

30

59CM1040

SCREW HX FLNG W/T8.8

31

7111411

MOUNT ENGINE

32

7111418

PUMP PULLEY MACH

33

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

34

5CM830

SCREW HEX HD F/8.8

35

7110825

SHIELD ENG MOUNT

36

43DM10

NUT

37

7001032

PUMP HYDRST See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM8105

38

7111317

TRANSMISSION W/A See Illustration MAIN FRAME/ EM8612

39

6577821

HOSE bulk - sold per foot
