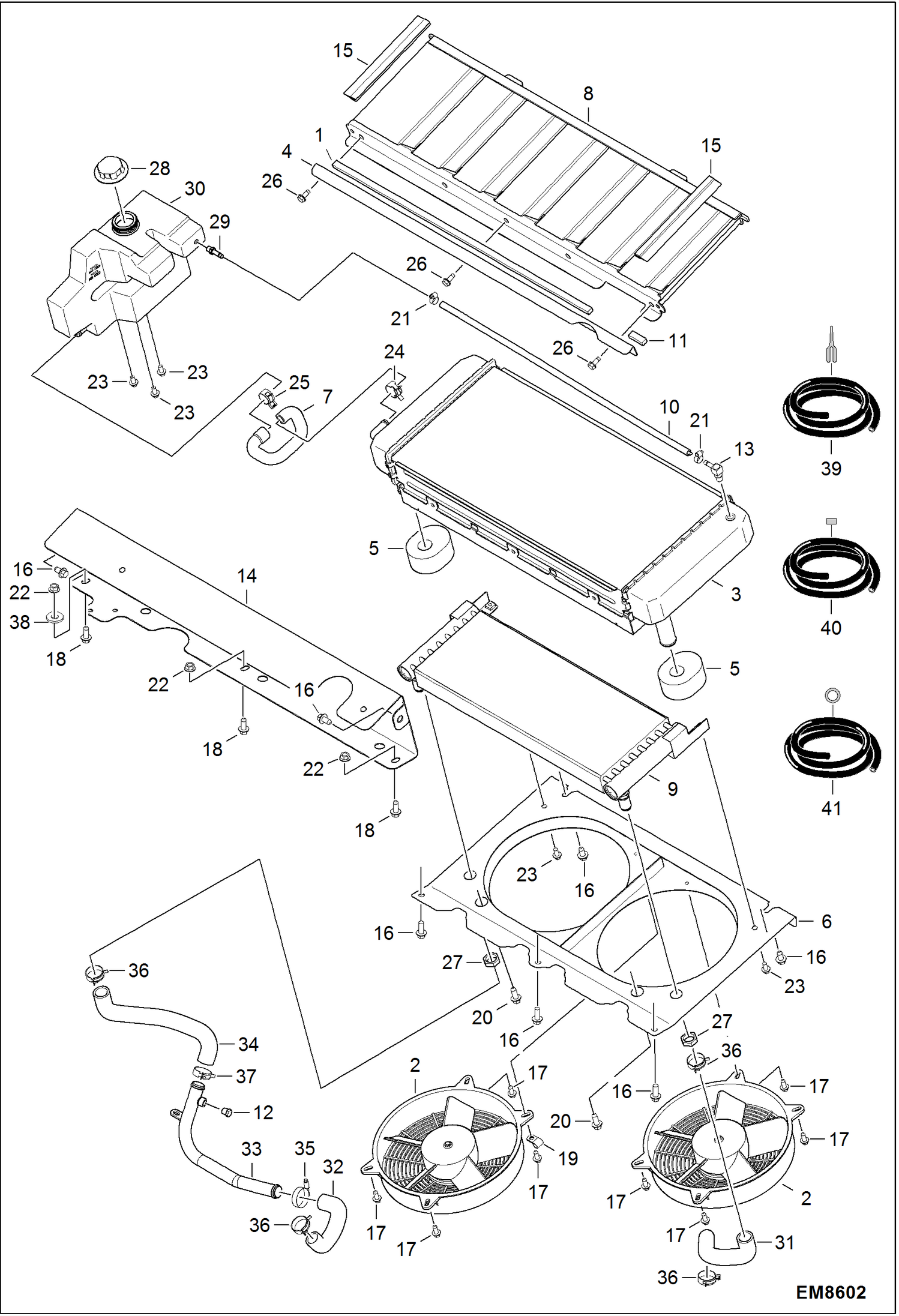

Запчасти Bobcat S-Series COOLING SYSTEM POWER UNIT

1

SEAL, GRILL NLA - 724 mm (28.50'') long - Order Ref. 40

2

6689178

FAN COOLING

3

6690594

EXCHANGE WTR COOLER

4

6703471

BRACKET

5

6736378

SPACER

6

7111300

MOUNT FAN ASSY

7

7112777

HOSE, RECOVERY

8

7115703

SCREEN ASSY EXCHR

9

7115773

EXCHANGER HYD OIL

10

HOSE, COOLANT NLA - 701 mm (27.60'') long - Order Ref. 41

11

SEAL, GRILL NLA - 38 mm (1.50'') long - Order Ref. 40

12

40K6

PLUG

13

7148137

ELBOW 90 NPTF Was 6715183 - A

14

7115707

PLATE COOLER

15

SEAL, GRILL NLA - 227 mm (8.94'') long - Order Ref. 39

16

26GM10020

BOLT

17

26GM8020

SCREW

18

29CM1025

BOLT

19

30H22

CLIP Was 30H15 - B

20

35C512

BOLT

21

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

22

51DM10

NUT

23

59CM816

BOLT

24

5HM24

CLAMP

25

5HM26

CLAMP Was 5HM24 - B

26

84G3112

BOLT 5

27

86F7

LOCK NUT

28

6733429

CAP

29

6734236

ADAPTER

30

7142137

TANK COOLANT REC Was 7143514 - D

31

7111412

HOSE COOLING

32

7154219

HOSE, COOLING

33

7158593

TUBE COOLING ASSY Was 7124211 - A

34

7158600

HOSE COOLING

35

42HC200

CLAMP

36

5HM40

HOSECLAMP

37

5HM40

HOSECLAMP Was 5HM42 - B

38

6705232

WASHER

39

7167241

SEAL, BULK bulk - sold per foot Was 6646705 - B

40

6511855

SEAL bulk - sold per foot Was 6511885 - D

41

6577822

HOSE bulk - sold per foot
