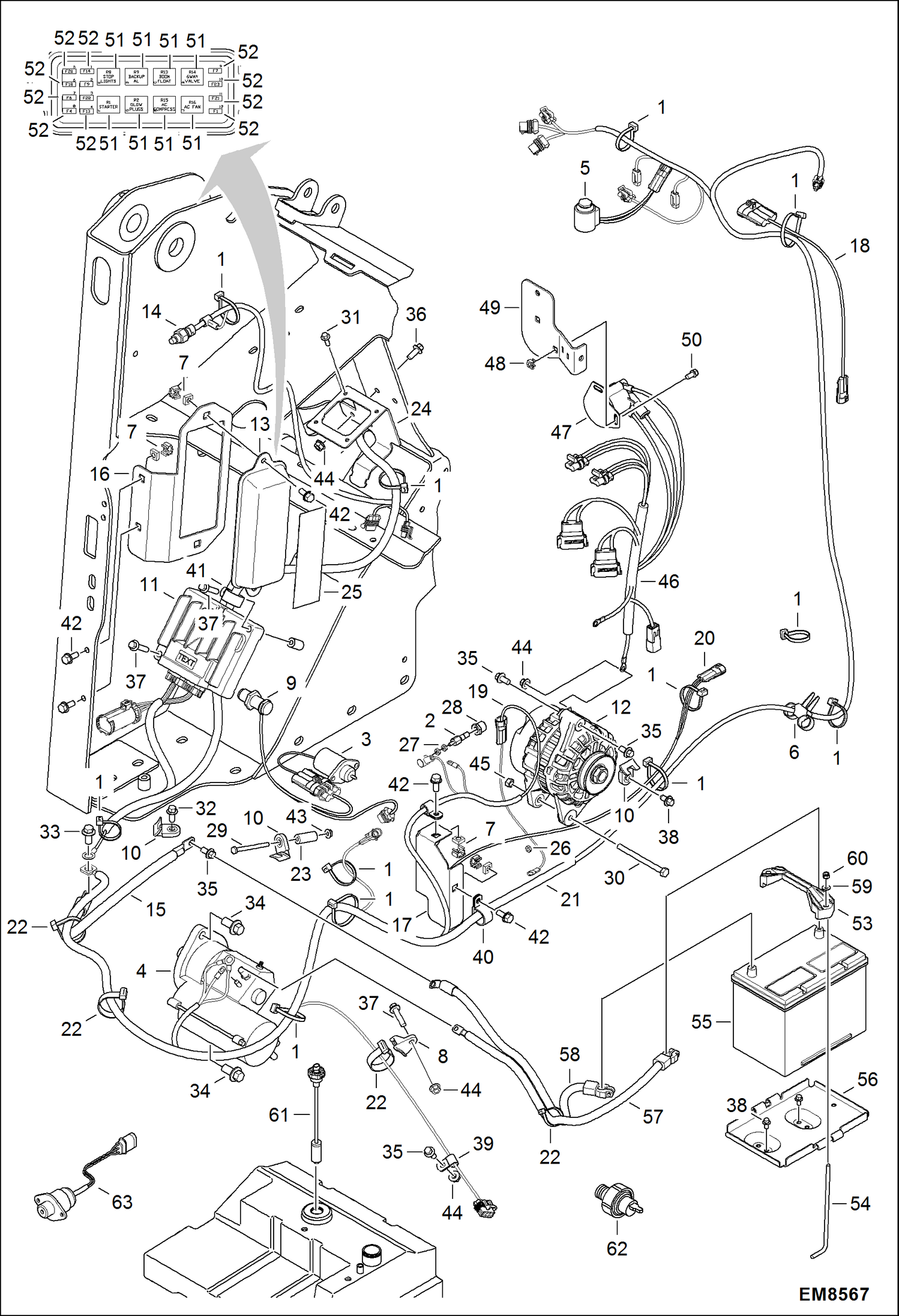

Запчасти Bobcat S-Series ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alternator & Starter) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6658818

SENDER

3

6691313

SOLENOID,STOP See Illustration IDLE APPARATUS & STOP SOLENOID/ B26337 Was 7010117 - A

4

STARTER See Illustration STARTER/ EM8862

5

6675559

COIL W/diode

6

6678668

STRAP, DUAL TIE

7

6678765

NUT

8

6678818

MOUNT 90 degree

9

6684037

SENSOR

10

6684641

MOUNT

11

6693353

CONTROLLER, GATEWAY Was 6687105 - A

12

6690593

ALTERNATOR 90A See Illustration ALTERNATOR/ EM5289 90A

13

6716621

COVER

14

6727869

SENDER,HYD TEMP

15

7113933

CABLE GROUND

16

7113936

BRACKET FUSE BLOCK

17

7124309

BELT SHIELD

18

7124853

HARNESS BRAKE

19

7124901

HARNESS ENG OIL PRES

20

7124916

HARNESS FUEL SENDER

21

7127932

HARNESS SFL MFR

22

6678669

STRAP

23

7132972

ROD DISTANCE

24

7132975

BRACKET DRB SMF

25

7135574

DECAL FUSE/RELAY

26

12D8

NUT

27

14D10

NUT

28

19F2

BUSHING

29

1CM665

BOLT

30

1CM8100

SCREW

31

26GM6020

SCREW Was 26GM6016 - B

32

26GM8020

SCREW

33

29CM1020

BOLT Was 29CM1016 - B

34

29CM1225

BOLT

35

29CM816

SCREW

36

29CM820

SCREW

37

29CM835

BOLT

38

26GM8016

SCREW

39

30H22

CLIP

40

30H49

CLAMP

41

30H57

CLAMP

42

35C512

BOLT

43

43DM6

NUT

44

43DM8

NUT

45

53DM8

NUT

46

7137284

HARNESS FANS W/Ref. 47 Was 7130351 - A

46

6691626

FUSE 50 AMP 50A

47

6691625

RELAY fan

48

6678766

NUT

49

7137899

BRACKET CONTACTOR

50

35C410

BOLT 5

51

6679820

RELAY

52

6654806

FUSE, 15A 15A

52

6702444

FUSE 25A 5 25A

52

6718034

FUSE, 30A 30A

53

6569203

CLAMP

54

6576280

BOLT

55

6674687

BATTERY, DRY 600 AMP Was 6673865 - A

56

6718260

BATTERY PAN

57

7113932

CABLE BATT POSITIVE

58

7123859

CABLE BATT NEGATIVE

59

25E15

WASHER

60

59D5

NUT 5

61

7179839

SENSOR FUEL See Illustration ENGINE & ATTACHING PARTS/ EM8639 Was 6680438 - A

62

6969775

SWITCH, OIL PRESSURE
