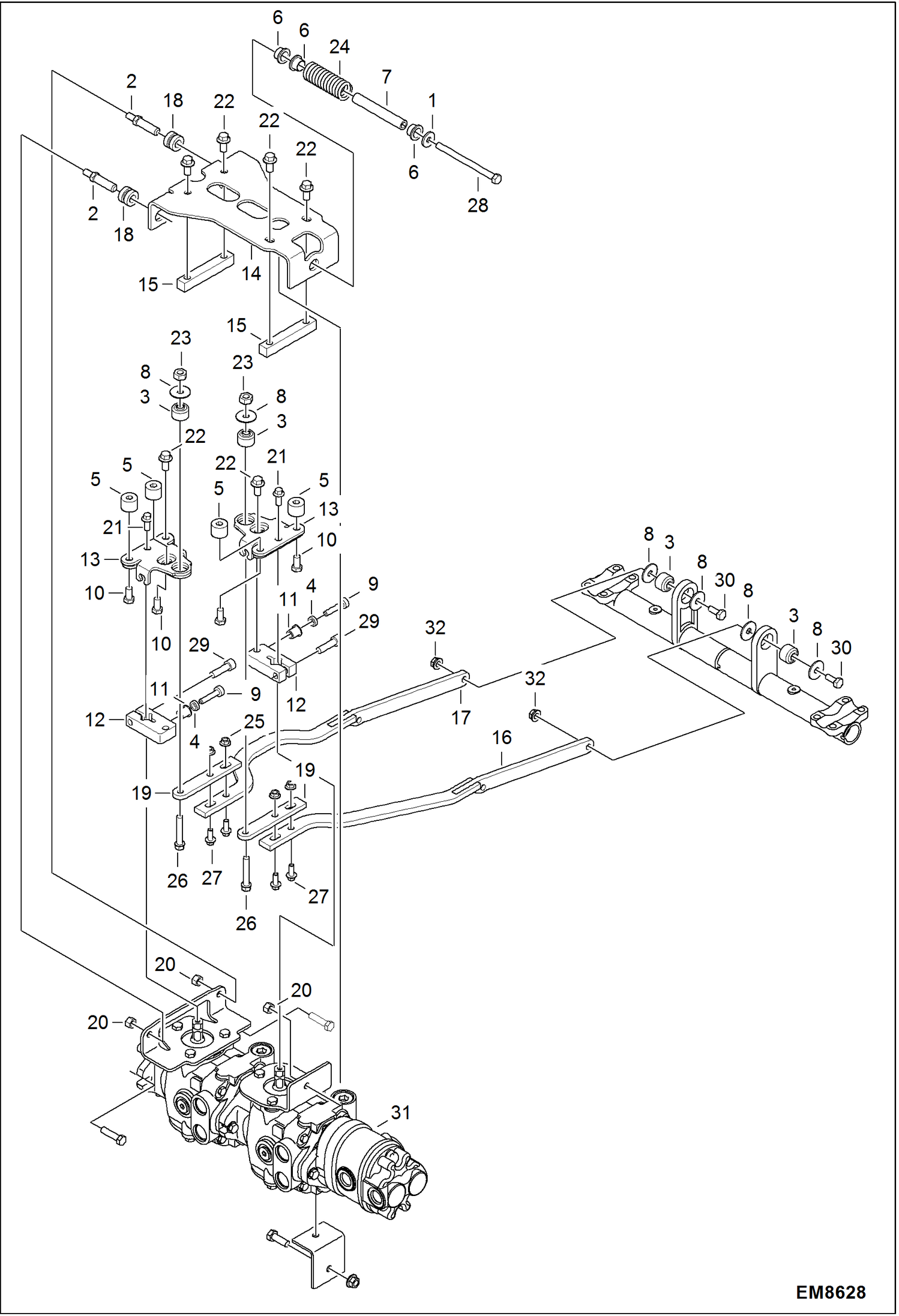

Запчасти Bobcat S-Series HAND CONTROLS (Steering Linkage) (W/Linkage #7195214 & #7195215) HYDRAULIC SYSTEM

1

6563914

WASHER

2

6577058

PIN

3

6685060

BUSHING, TORSION

4

25E14

WSHR

5

6711643

CAM

6

6715163

BUSHING, PRESS FIT

7

6715164

SLEEVE, SPRING

8

6737388

WASHER

9

7103711

BOLT

10

17C612

BOLT 5 Was 7105192

11

7105223

SPACER

12

7109432

BASE PINTLE ARM

13

7109435

ARM PINTLE ASSY

14

7195800

BRACKET

15

7109437

BLOCK WEAR

16

7195214

LINK, RH

17

7195215

LINK, LH

18

7113897

BUSHING CENTERING

19

7195453

LINK, LH

20

95D6

NUT

21

59CM820

SCREW HX FLNG W/T 8.8

22

59CM1020

SCREW HX FLNG W/T8.8

23

63D6

NUT

24

7178491

SPRING CENTERING

25

51DM10

NUT

26

49C628

BOLT

27

29CM1030

BOLT

28

1C680

SCREW

29

6678768

BOLT

30

17C628

BOLT

31

7001032

PUMP HYDRST See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM8105

32

53D6

NUT
