Запчасти Bobcat S-Series HAND CONTROLS HYDRAULIC SYSTEM

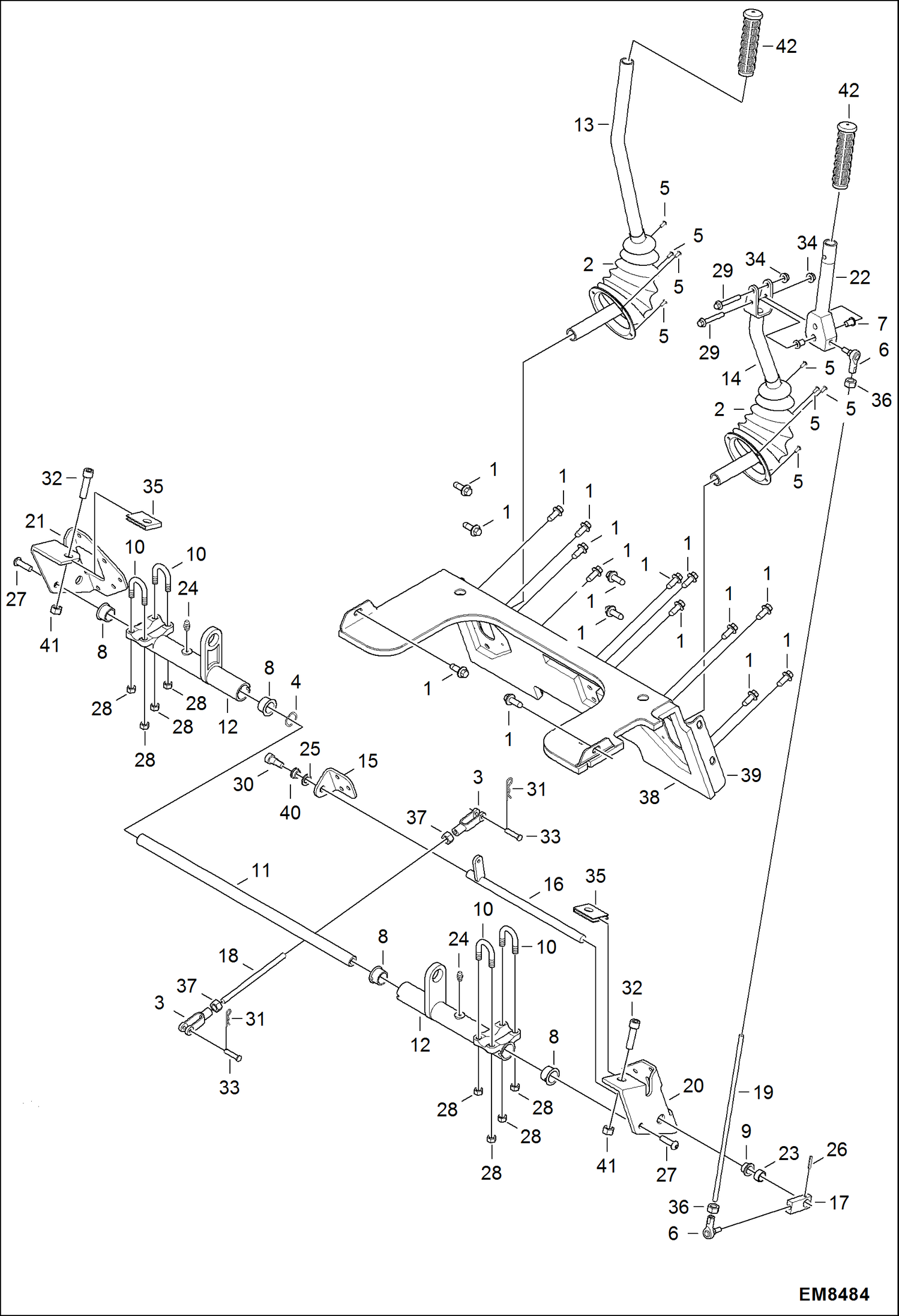

Схема запчастей Bobcat S-Series - HAND CONTROLS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

26GM10025

SCREW

2

6532127

BOOT

3

6564655

CLEVIS

4

6599741

WASHER

5

6630207

RIVET 5

6

6651231

BALL JOINT

7

7143991

BUSHING

8

6703879

BUSHING, PLASTIC

9

6715163

BUSHING, PRESS FIT

10

6732997

U-BOLT

11

7111369

SHAFT STEERING

12

7111379

BELLCRANK STEERING

13

6702543

LEVER, STEERING Was 7113901 - A

14

7144472

LEVER STEERING ASM

15

7113920

BRACKET STEERING

16

7113921

BELLCRANK AUX ASSY

17

7113924

ARM BELLCRANK

18

7113926

ROD LINKAGE

19

7113973

ROD LINKAGE

20

7194635

BRACKET, RH ASSY W/Ref. 41 Was 7127413 - A

21

7194902

BRACKET, LH ASSY W/Ref. 41 Was 7127414 - A

22

7131301

LEVER AUX MACH

23

7133295

SPACER

24

10H35

FITTING, GREASE 10 straight

25

15EM100

WASHER

26

1JM5026

PIN ROLL HEAVY

27

27CM1035

SCREW SKT BTN HD CAP

28

95D6

NUT

29

29CM855

SCREW HX FLGD HD CAP

30

38C606

BOLT

31

6513495

COTTER PIN

32

73G828

BOLT Was 3GM1245 - A

33

6564654

PIN

34

53D6

NUT Was 51DM8 - A

35

7121779

PAD

36

62D5

NUT

37

62D6

NUT 5

38

7197601

INSULATOR Was 7132570 - A

39

7197742

BRACKET, SHIELD Was 7143121 - A

40

6684925

BUSHING

41

55D8

NUT Was 53DM12 - A

42

6513963

GRIP

Выбрано товаров: 42
