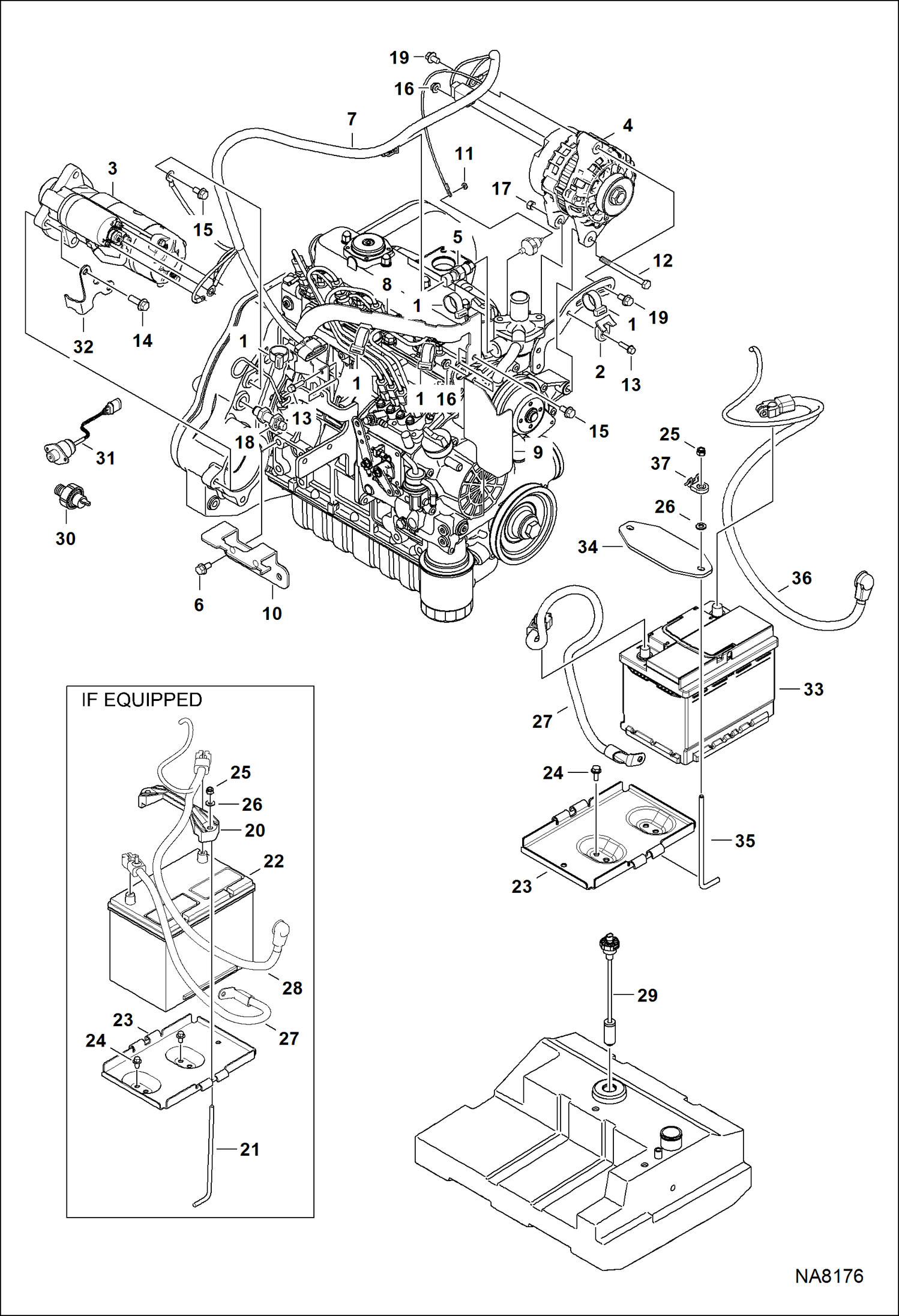

Запчасти Bobcat S-Series ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alternator & Starter) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6684641

MOUNT

3

6685190

STARTER See Illustration STARTER/ EM8861

4

6690593

ALTERNATOR 90A See Illustration ALTERNATOR/ EM5289 90A

5

6718414

SENDER, TEMP ENG

6

6733378

SCREW

7

7154222

ENGINE HARNESS

8

7163480

BRACKET, HARNESS

9

7163481

SHIELD, BELT

10

7182746

BRACKET, HARNESS

11

12D8

NUT

12

1CM8100

SCREW

13

26GM8016

SCREW

14

29CM1030

BOLT

15

29CM816

SCREW

16

43DM8

NUT

17

53DM8

NUT

18

6693921

SENSOR, RPM

19

29CM820

SCREW

20

6569203

CLAMP

21

6576280

BOLT

22

6674687

BATTERY, DRY 600 AMP

23

6718260

BATTERY PAN

24

29CM820

SCREW Was 29CM1020 - A

25

59D5

NUT 5

26

25E15

WASHER

27

6729008

CABLE negative

28

6731256

CABLE positive

29

7179839

SENSOR FUEL Was 6680438 - A

30

6969775

SWITCH, OIL PRESSURE

31

6691313

SOLENOID,STOP See Illustration IDLE APPARATUS & STOP SOLENOID/ B26337 Was 7010117 - A

32

7219707

BRACKET
