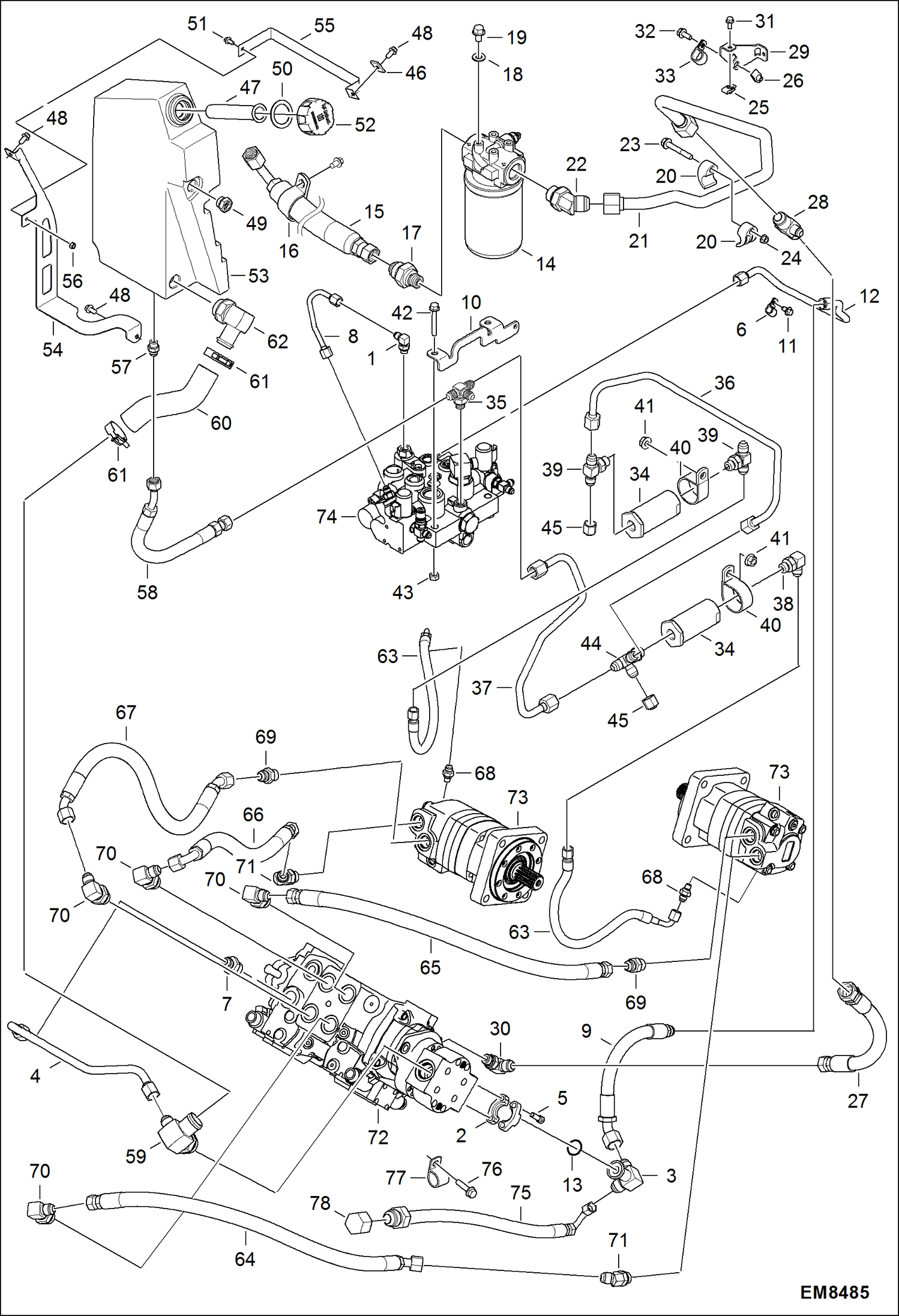

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Selectable Joystick Controls) HYDROSTATIC SYSTEM

1

17KB0606

FITTING

1

79K6

O RING 10

2

19J12

CLAMP

3

7113262

ELBOW

4

7154224

TUBELINE

5

17C620

BOLT

6

30H38

CLIP

7

15KB1012

FITTING, HYD CONNECTOR

7

79K12

O RING 10

8

7165797

TUBELINE

9

7174885

HOSE

10

7183308

HOLDER

11

26GM10020

BOLT

12

7174883

TUBELINE

13

55K214

O-RING

14

6688385

HYD FILTER ASSY

14

6661248

FILTER, OIL HYD 12

15

7165034

HOSE ASSEMBLY

16

30H50

CLIP

17

15KB1012

FITTING, HYD CONNECTOR

17

79K12

O RING 10

18

7103217

WASHER Was 1EM100 - A

19

35C610

BOLT 5

20

7100462

CLAMP

21

7187365

TUBELINE, CHARGE

22

18KB1212

FITTING, HYD ELBOW

22

79K12

O RING 10

23

29CM855

SCREW HX FLGD HD CAP

24

51DM8

NUT

25

6676026

NUT

26

6676169

NUT

27

7187367

HOSE

28

7187654

FITTING, HYD

29

7187656

HOLDER

30

17KB1008

FITTING, HYD ELBOW

30

79K8

O RING 10

31

29CM616

BOLT

32

29CM820

SCREW

33

30H45

CLIP

34

6661022

FILTER, OIL HYD IN-LINE

35

7102019

CROSS

36

7113916

TUBELINE

37

7161108

TUBELINE DRAIN

38

17KB0606

FITTING

38

79K6

O RING 10

39

19KB0606

TEE

39

79K6

O RING 10

40

30H79

CLAMP

41

50DM8

NUT

42

29CM1270

BOLT

43

51DM12

NUT

44

21KB0606

FTG HYD STRAIGHT TEE

44

79K6

O RING 10

45

36K5

CAP

46

6559447

WASHER

47

7120881

SCREEN, FILLER Was 6569219 - A

48

26GM10020

BOLT

49

6665915

GAUGE

49

79K12

O RING 10

50

6700631

GASKET

51

29CM816

SCREW

52

6727475

CAP, OIL HYD

53

7162735

TANK HYDRAULIC

54

7183527

SUPPORT, TANK Was 7158998 - A

55

7113908

BAND TANK

56

4DM8

NUT

57

18KB0608

FTG HYD ELBOW 45 Was 15KB0608 - A

57

79K8

O RING 10

58

7192180

HOSE ASSY Was 7164713 - A

59

7113910

FTG HYD 90 BEAD

59

79K16

O RING 10

60

7162080

HOSE, SUCTION

61

5HM42

HOSECLAMP

62

6729306

ELBOW

62

79K16

O RING 10

63

7122386

HOSE ASEMBLY

64

7189063

HOSE, HYD Was 7163353 - A

65

7189064

HOSE, HYD Was 7163354 - A

66

7189065

HOSE, HYD Was 7182474 - A

67

7189066

HOSE, HYD Was 7187901 - A

68

15KB0604

FTG HYD S CONNECTOR

68

79K4

O RING 10

69

15KB1010

FITTING, HYD CONNECTOR

69

79K10

O RING 10

70

17KB1012

FITTING, HYD ELBOW

70

79K12

O RING 10

71

18KB1010

FITTING, HYD ELBOW

71

79K10

O RING 10

72

7001001

PUMP ASSY TANDEM See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM5266

73

6688442

MOTOR DRIVE See Illustration HYDROSTATIC MOTOR/ EM8571

74

7164420

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM5243

75

7175122

HOSE, MUFFLER

76

26GM10020

BOLT

77

30H73

CLAMP

78

36K8

CAP
