Запчасти Bobcat S-Series MANUAL LIFT RELEASE SYSTEM HYDRAULIC SYSTEM

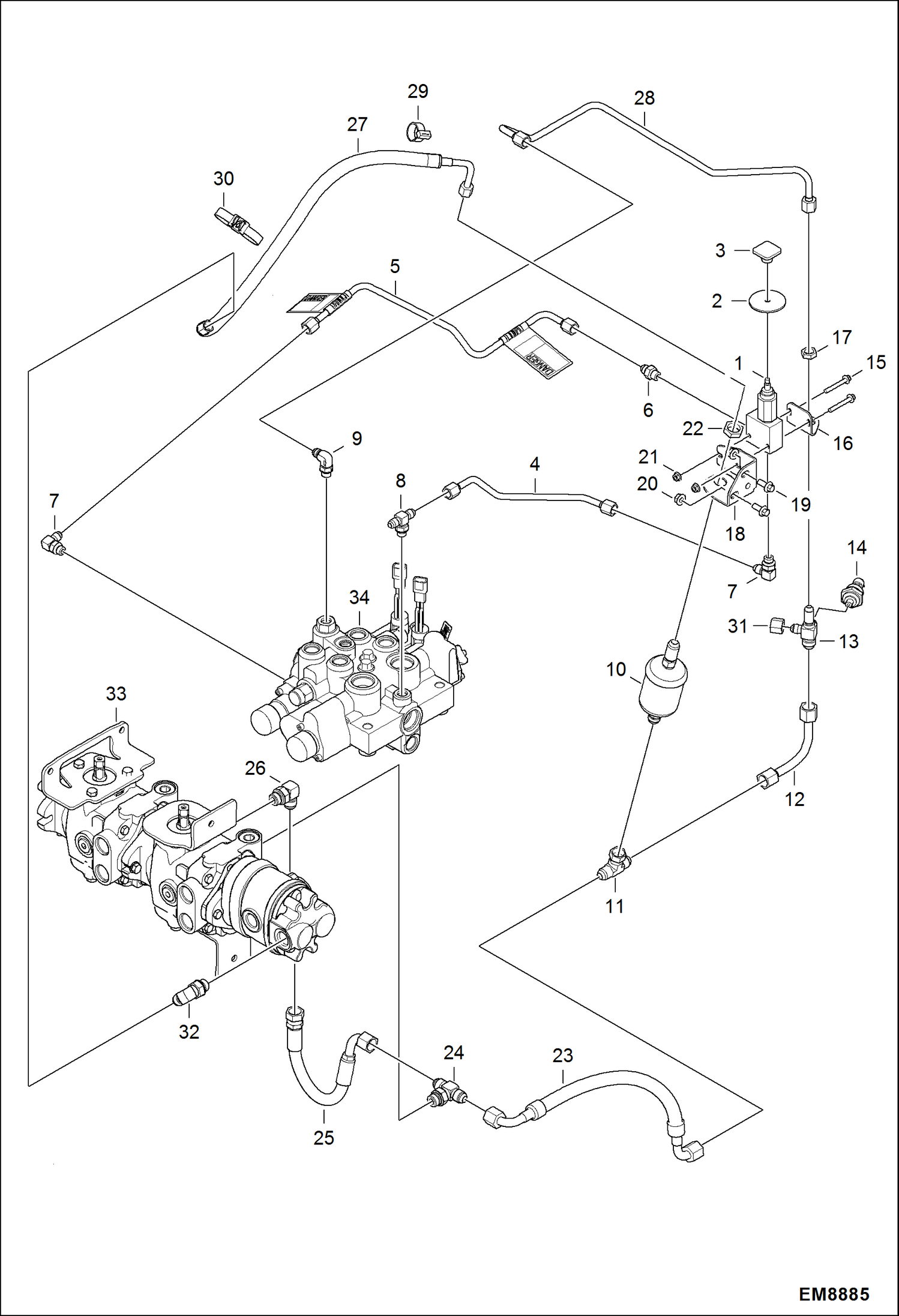

Схема запчастей Bobcat S-Series - MANUAL LIFT RELEASE SYSTEM HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ EM8052 - Was 6667844 - A

2

6707101

SEAL

3

6737524

KNOB

4

7142801

TUBELINE DRAIN Was 7115753 - A

5

7143122

TUBELINE ASSY Was 7122332 - A

5

6809511

DECAL, DANGER

6

15KB0606

FITTING, HYD CONNECTOR

6

79K6

O RING 10

7

17KB0606

FITTING

7

79K6

O RING 10

8

19KB0606

TEE

8

79K6

O RING 10

9

6682549

ELBOW

10

6681012

FILTER, OIL HYD IN-LINE

11

14K6

TEE HYDR

12

7124143

TUBELINE

13

7124141

TEE BULKHEAD

14

6674316

SWITCH, PRESS OIL HYD

15

29CM645

SCREW FLGD HEX CAP

16

7143061

PLATE BRACKET

17

86F5

NUT

18

7143062

BRACKET FILTER

19

29CM820

SCREW

20

50DM8

NUT

21

50DM6

Nut Hex

22

86F6

NUT

23

7122126

HOSE ASSEMBLY

24

19KB0808

Fitting Hydraulic Branch Tee

25

7137807

HOSE ASSY

26

17KB0808

FITTING, HYD ELBOW

26

79K8

O RING 10

27

7160534

HOSE ASSEMBLY

28

7142802

TUBELINE

29

6678669

STRAP

30

6678668

STRAP, DUAL TIE

31

36K5

CAP

32

17KB0810

FITTING, HYD ELBOW

32

79K10

O RING 10

33

7001032

PUMP HYDRST See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM8105

34

7113129

VALVE ASSY SF SL See Illustration HYDRAULIC CONTROL VALVE/ EM7886

Выбрано товаров: 40
