Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (Contorl Valve) HYDRAULIC SYSTEM

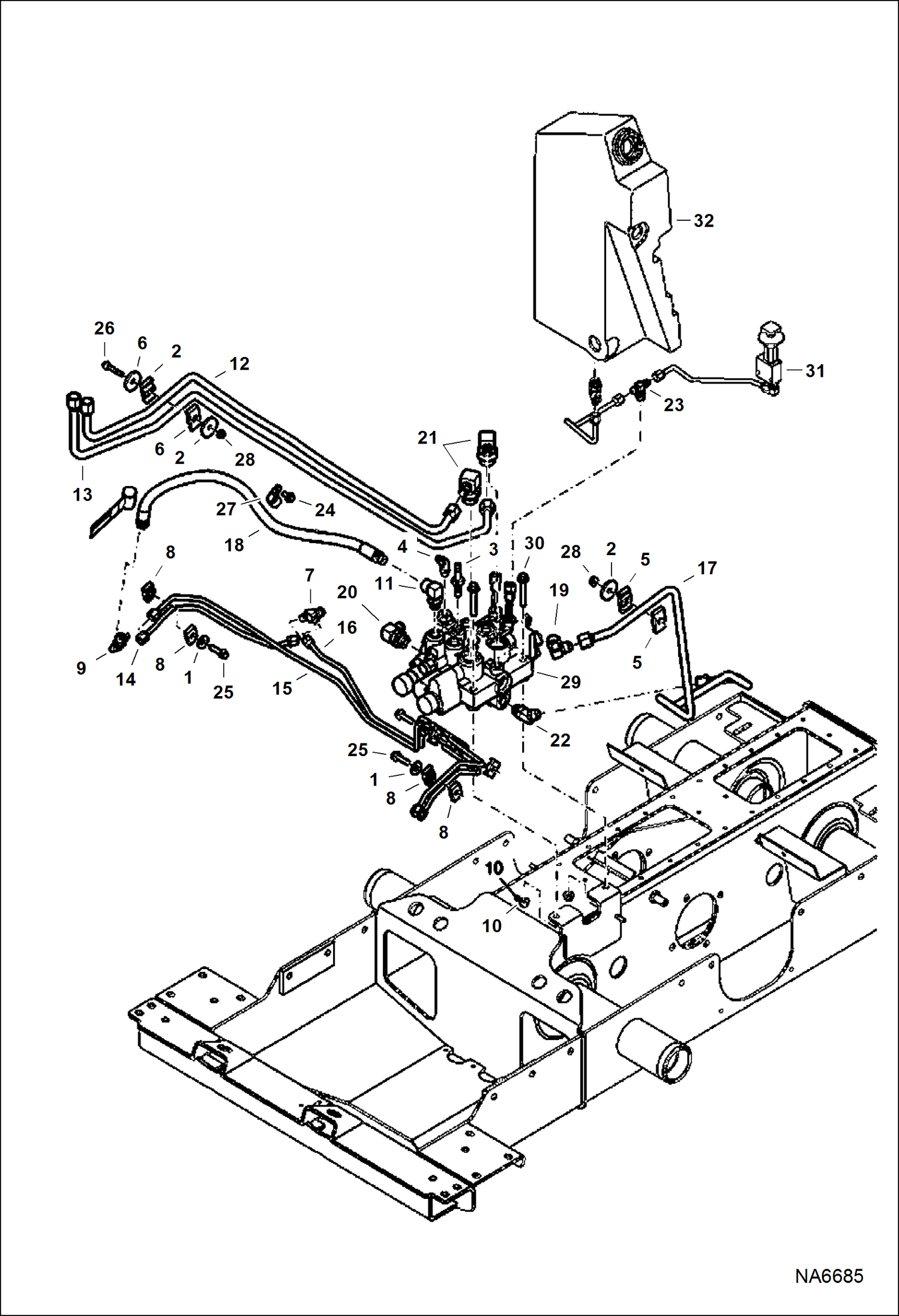

Схема запчастей Bobcat S-Series - HYDRAULIC CIRCUITRY (Contorl Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

619021

WASHER, 5

2

872229

WASHER

3

6667687

VALVE, STEM SOLENOID

4

6682549

ELBOW

4

79K6

O RING 10

5

6701892

CLAMP

6

6701893

CLAMP

7

6719424

TEE

8

6726277

CLAMP

9

6727659

TEE

10

51DM12

NUT

11

6814531

ELBOW

11

79K10

O RING 10

12

7111376

TUBELINE AUX

13

7111377

TUBELINE AUX

14

7113914

TUBELINE LIFT

15

7113915

TUBELINE LIFT

16

7113917

TUBELINE LIFT

17

7115797

TUBELINE RETURN

18

7121778

HOSE ASSEMBLY

19

11K7

ADAPTER 90 degrees

20

17KB1012

FITTING, HYD ELBOW

20

79K12

O RING 10

21

17KB1016

FITTING, HYD ELBOW

21

79K16

O RING 10

22

18KB1010

FITTING, HYD ELBOW 45 degrees

22

79K10

O RING 10

23

19KB0606

TEE

23

79K6

O RING 10

24

26GM10016

SCREW

25

26GM10040

SCREW SELF TAPPING

26

29CM850

SCREW

27

30H46

CLIP

28

50DM8

NUT

29

7113129

VALVE ASSY SF SL See Illustration HYDRAULIC CONTROL VALVE/ EM7886

30

29CM1270

BOLT

31

VALVE, RELEASE LIFT MANUAL See Illustration MANUAL LIFT RELEASE SYSTEM/ EM8885

32

TANK, HYD See Illustration HYDROSTATIC CIRCUITRY/ EM8887

Выбрано товаров: 38
