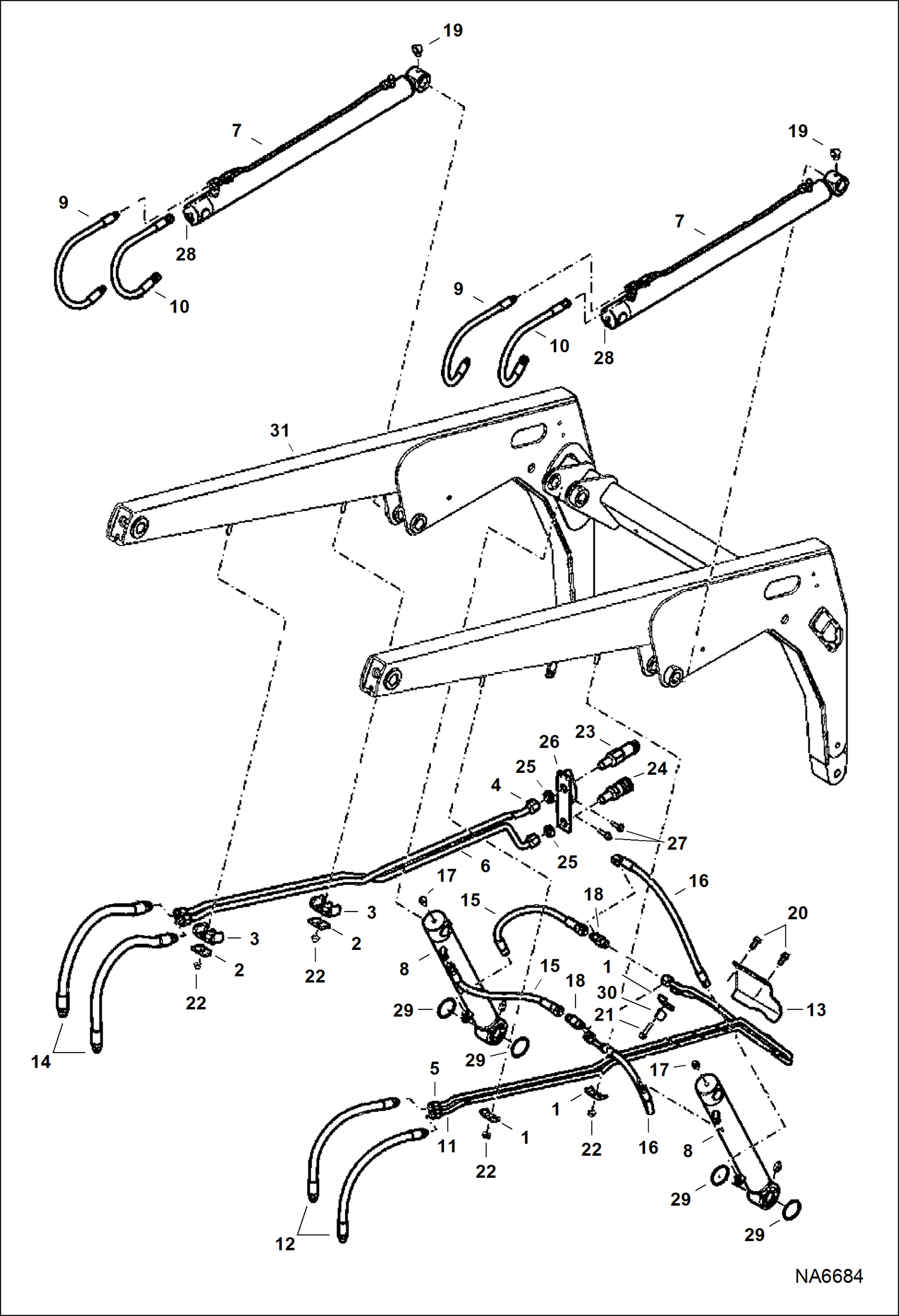

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (Lift Arms) HYDRAULIC SYSTEM

1

6502426

CLAMP

2

6553709

WASHER

3

6717933

CLAMP

4

7149389

TUBELINE AUX Was 7111368 - B

5

7111371

TUBELINE TILT

6

7149390

TUBELINE AUX Was 7111391 - B

7

7113410

CYLINDER ASSY See Illustration LIFT CYLINDER/ NA8095

8

7113507

CYLINDER ASSY See Illustration TILT CYLINDER/ NA8096

9

7165727

HOSE ASSY LIFT CYL Was 7113918 - B

10

7165728

HOSE ASSY LIFT CYL Was 7121943 - B

11

7115755

TUBELINE TILT

12

7115768

HOSE ASSY TILT

13

7170916

SHIELD, TUBELINE Was 7116024 - B

14

7124975

HOSE ASSY LIFT CYL

15

7127001

HOSE ASSY TILT CYL

16

7127002

HOSE ASSY TILT CYL

17

10H25

FITTING, GREASE 5

18

10K6

FITTING

19

12H15

FITTING, GREASE 5 90 degrees

20

26GM10025

SCREW

21

26GM10040

SCREW SELF TAPPING

22

51DM10

NUT

23

6676444

COUPLER, FF MALE

24

6676446

COUPLER, FF FEMALE

25

86F7

LOCK NUT

26

7149388

MOUNT QUICK COUPLERS Was 71111367 - B

27

84G3720

BOLT

28

11H15

GREASE FITTING 45 degrees

29

6689112

SEAL

30

30H46

CLIP

31

ARM, LIFT See Illustration LIFT ARM/ EM7414
