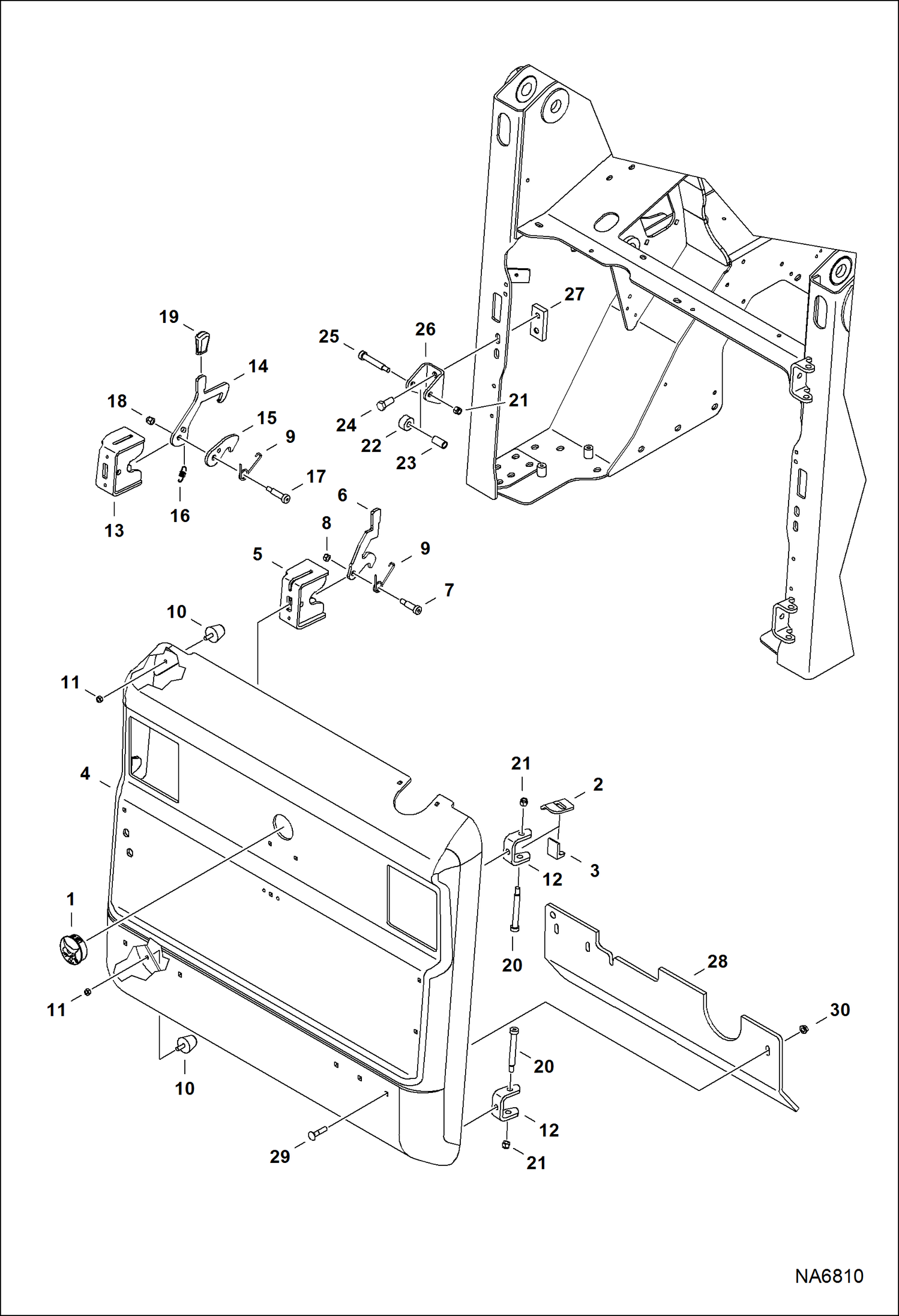

Запчасти Bobcat S-Series REAR DOOR MAIN FRAME

1

6718796

PLUG

2

6714126

DOOR STOP

3

6719766

STOP

4

6729991

REAR DOOR W/Ref. 5-12

5

7218279

PLATE, LATCH weld-on

6

7229410

LATCH Was 7217980 - D

7

38C820

SCREW

8

85D6

NUT, 5

9

6810132

SPRING

10

6733616

BUMPER

11

61D5

NUT

12

6733575

HINGE, REAR DOOR weld-on

13

6729939

LATCH PLATE

14

6733667

LATCH, REAR DOOR

15

6732715

LATCH

16

6810141

SPRING

17

38C824

SCREW

18

85D6

NUT, 5

19

6564452

GRIP

20

6809845

BOLT

21

59D6

NUT

22

6809726

ROLLER

23

7184677

BUSHING

24

17C820

BOLT

25

38C840

BOLT

26

6809727

CHANNEL

27

6719525

BAR

28

6725256

COUNTERWEIGHT

29

37C628

BOLT

30

57D6

NUT 5
