Запчасти Bobcat S-Series BOB-TACH MAIN FRAME

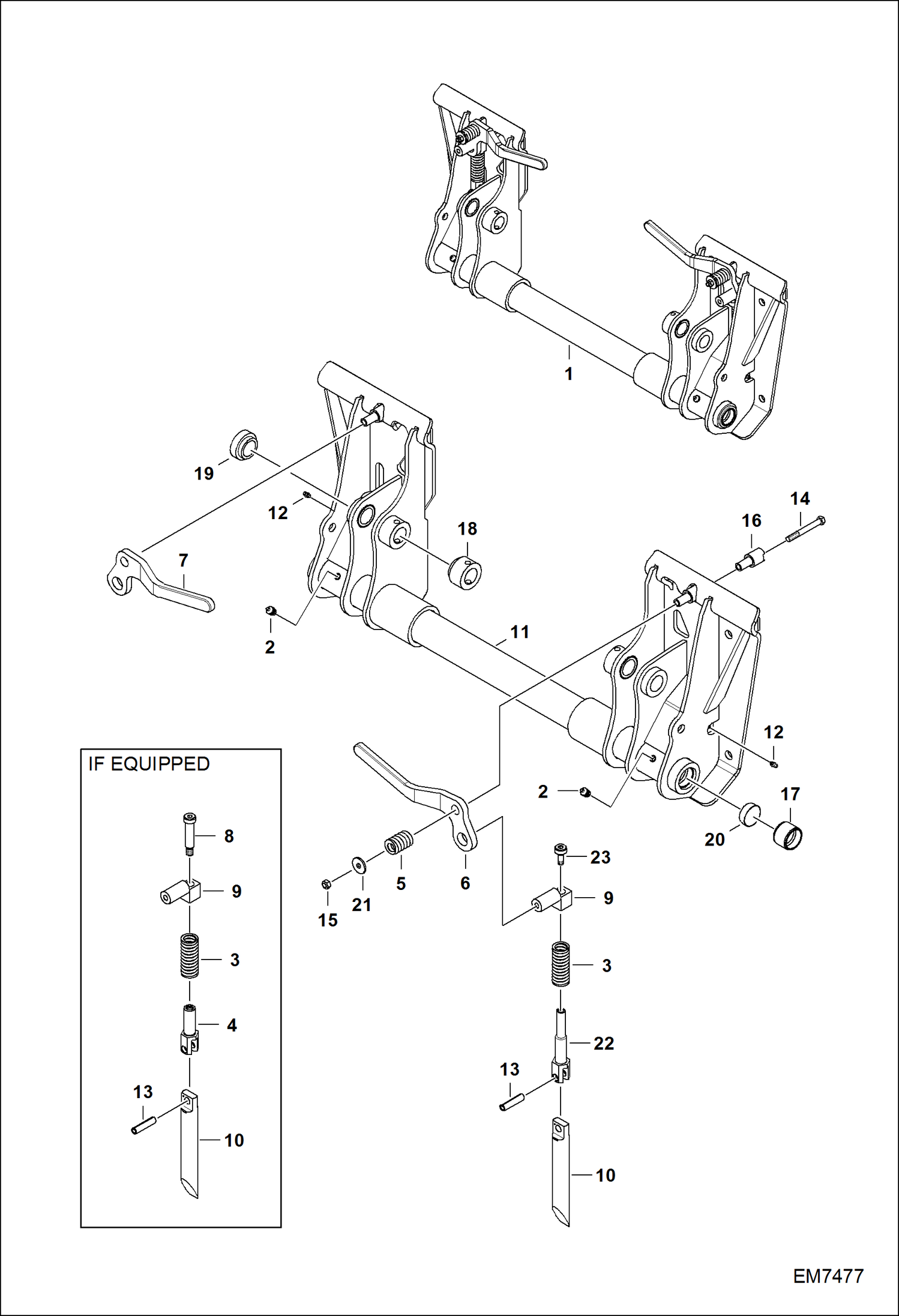

Схема запчастей Bobcat S-Series - BOB-TACH MAIN FRAME

Артикул

Название

Примечание

Количество

1

7163106

GRP BOBTACH Ref. 2-21 Was 7163108 - D

2

743332

FITTING, GREASE 5

3

6578253

SPRING, COMPRESSION

4

6704248

PIVOT, WEDGE

5

6713040

SPRING

6

6719501

LEVER

7

6719502

LEVER

8

6728473

BOLT, SHOULDER

9

6731119

PIVOT, WEDGE

10

6737191

WEDGE

11

FRAME NLA - Order Ref. 1

12

10H35

FITTING, GREASE 10 straight

13

14J5032

PIN, STRAIGHT

14

17C660

BOLT

15

85D6

NUT, 5

16

6702958

BUSHING, WELD-ON

17

6730997

BUSHING, WELD-ON

18

7115751

BUSHING, PIVOT

19

7115752

BUSHING, PIVOT

20

RETAINER NLA - not serviceable - Was 7115769 - D

21

619021

WASHER, 5

Выбрано товаров: 21
