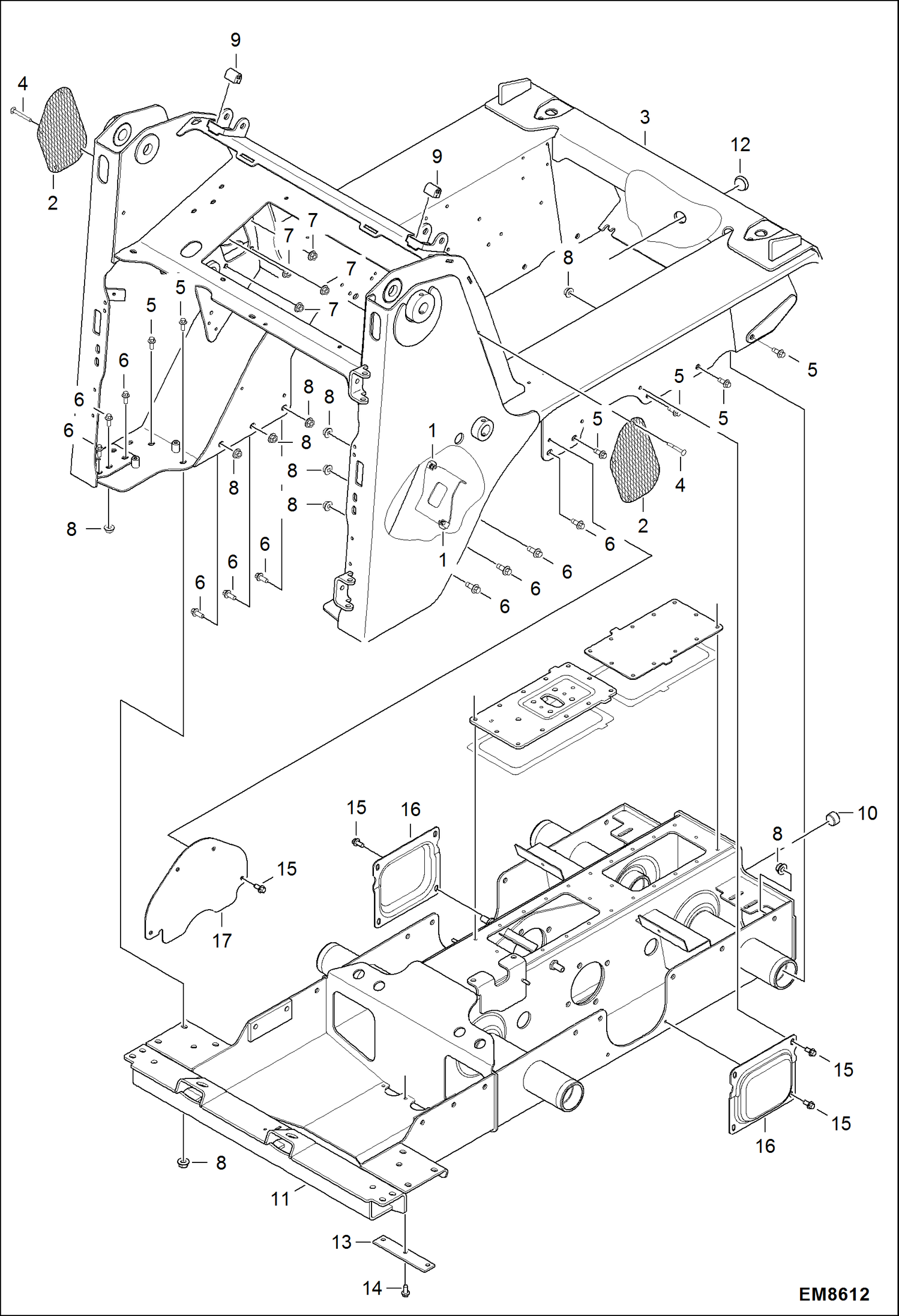

Запчасти Bobcat S-Series MAIN FRAME MAIN FRAME

1

6676169

NUT

2

7115771

SCREEN INLET

3

7163111

FRAME W/A Was 7111276 - A

4

28CM1020

BOLT

5

31C820

BOLT Was 30CM1230 - A

6

31C824

BOLT 10 Was 30CM1235 - A

7

51DM10

NUT

8

83D8

NUT 5 Was 51DM12 - A

9

6579613

STOP

10

6731121

PLUG

11

7111317

TRANSMISSION W/A W/A

12

6718796

PLUG

13

7111350

COVER DRAIN

14

26GM10020

BOLT

15

26GM10025

SCREW

16

7115726

COVER MOTOR

17

7167827

COVER TRANS Was 7115727 - A
