Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

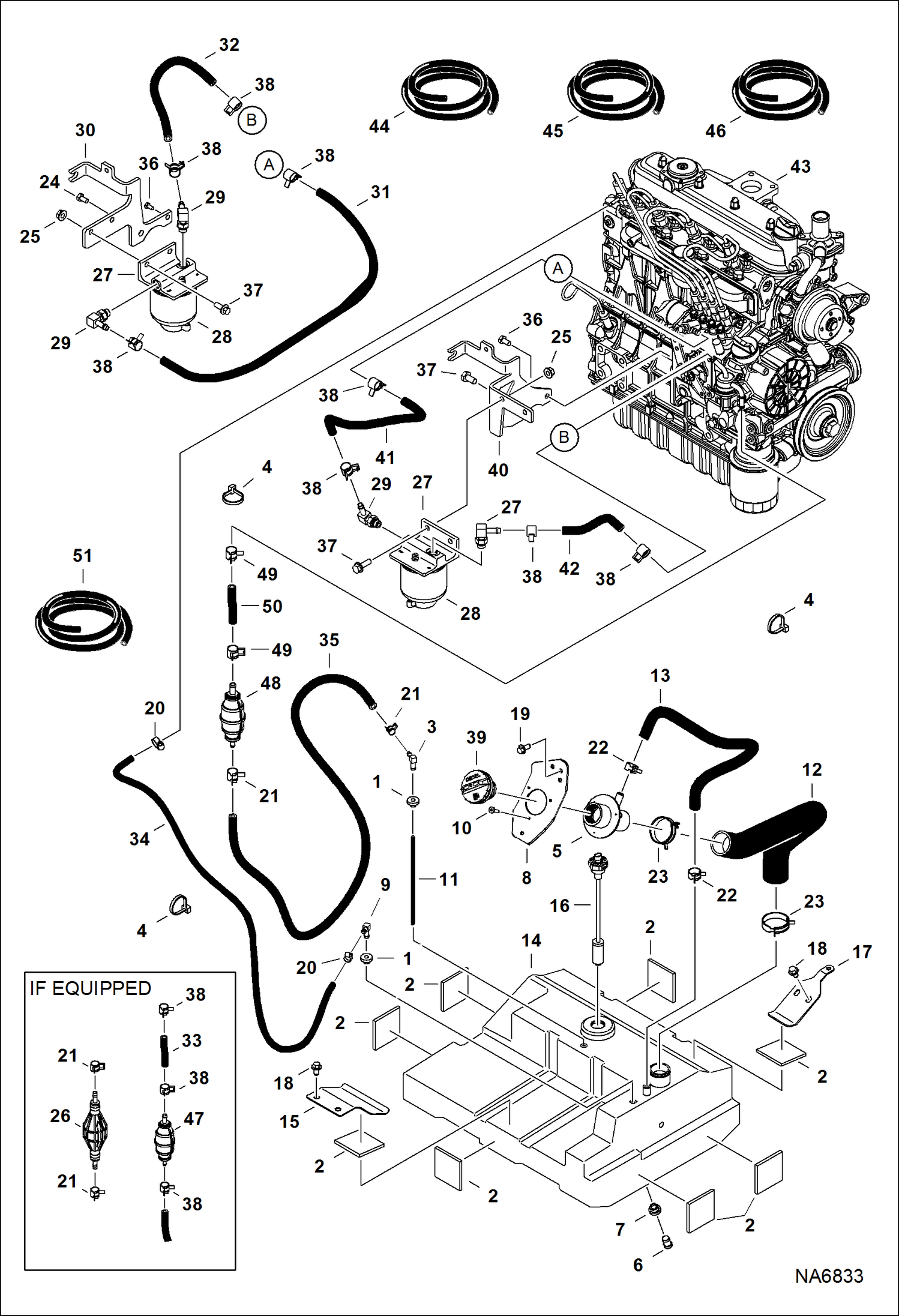

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

Артикул

Название

Примечание

Количество

1

6553411

BUSHING

2

6578278

PAD Was 7156723 - B

3

6598908

ELBOW Was 6553412 - A

4

6624289

STRAP, TIE

5

6701449

FILLER TUBE

6

7203382

PLUG, STEEL Was 6717404 - A

7

6717402

BUSHING

8

6731059

INLET

9

7101291

ELBOW Was 6630041 - A

10

7106279

BOLT

11

7111441

TUBE FUEL LINE

12

7111442

HOSE FUEL LINE

13

HOSE, BREATHER NLA - 800 mm (31.5'') long - Order Ref. 41

14

7162725

TANK, FUEL Was 7111440 - A

15

7169243

BRACKET

16

7179839

SENSOR FUEL See Illustration ELECTRICAL CIRCUITRY/ NA8178

17

7183828

BRACKET, HOLD DOWN Was 7168190 - A

18

26GM10020

BOLT

19

26GM10025

SCREW

20

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

21

5HM13

CLAMP

22

5HM24

CLAMP

23

5HM55

CLAMP

24

6733378

SCREW

25

51DM8

NUT

26

6667170

PUMP 193 mm (7.6'') long

27

6667353

FILTER ASSY W/Ref. 28

28

6667352

FILTER, FUEL W/SEPARATOR 12

29

6715183

ELBOW

30

7162337

BRACKET, THROTTLE

31

HOSE, FUEL NLA - 420 mm (16.5'') long - Order Ref. 45

32

HOSE, FUEL NLA - 110 mm (4.3'') long - Order Ref. 45

33

HOSE, FUEL NLA - 55 mm (2.165'') long - Order Ref. 45

34

HOSE, FUEL RETURN NLA - 970 mm (38.2) long - Order Ref. 46

35

HOSE, FUEL NLA - 1220 mm (48'') long - Order Ref. 45

36

1CM816

BOLT

37

29CM825

BOLT

38

5HM14

CLAMP

39

6661114

CAP. DIESEL

39

6661696

CAP, FUEL LOCKING locking - optional

40

7201863

BRACKET, FILTER

41

HOSE, FUEL NLA - 340 mm (13.4'') long - Order Ref. 45

42

HOSE, FUEL NLA - 118 mm (4.6'') long - Order Ref. 45

43

ENG, V1505-E3B-BCZ-1 See Illustration ENGINE & GASKET KITS/ EM9053

44

7132913

HOSE, BREATHER bulk - sold per foot - Was 6578172 - A

45

6577821

HOSE bulk - sold per foot

46

6578169

HOSE bulk - sold per foot

47

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

48

7219755

PUMP, PRIMER HAND

49

5HM15

CLAMP

50

HOSE, FUEL NLA - 55 mm (2.165'') long - Order Ref. 51

51

6577822

HOSE bulk - sold per foot

Выбрано товаров: 52
