Запчасти Bobcat S-Series ENGINE SPEED CONTROL (Selectable Joystick Controls) POWER UNIT

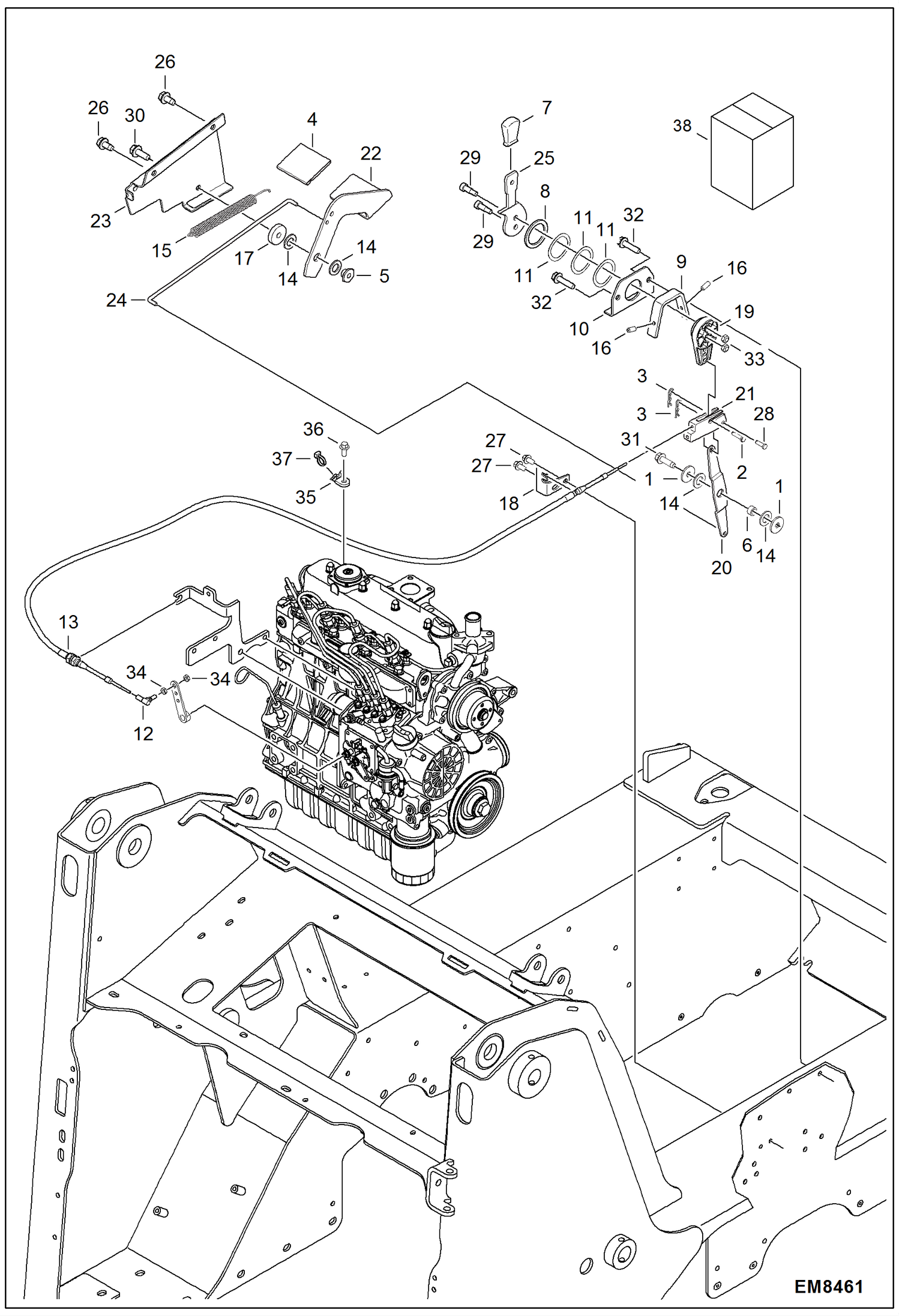

Схема запчастей Bobcat S-Series - ENGINE SPEED CONTROL (Selectable Joystick Controls) POWER UNIT

Артикул

Название

Примечание

Количество

1

619021

WASHER, 5

2

1304227

PIN

3

6513495

COTTER PIN

4

6554100

TREAD

5

619021

WASHER, 5

5

6559479

NUT

6

6564343

SPACER

7

6564452

GRIP

8

6567962

WASHER

9

6576261

COVER

10

6576262

MOUNT

11

6630945

WASHER

12

6644965

BALL JOINT

13

6675668

CABLE, THROTTLE

14

6700170

WASHER

15

6700743

SPRING

16

6706572

SET SCREW

17

6732322

SPACER

18

6732450

BRACKET

19

6734416

LEVER

20

6734417

LEVER

21

6734503

CLEVIS

22

6735680

FOOT PEDAL

23

7159012

SUPPORT, THROTTLE

24

7165740

ROD, THROTTLE

25

7166594

LEVER, THROTTLE

26

26GM10020

BOLT

27

26GM8016

SCREW

28

2F4051

PIN

29

38C610

BOLT

30

45C616

BOLT

31

84G3720

BOLT

32

84G3724

BOLT

33

85D5

NUT 5

34

8D4

NUT

35

6679034

MOUNT

36

26GM10025

SCREW

37

6624289

STRAP, TIE

Выбрано товаров: 38
