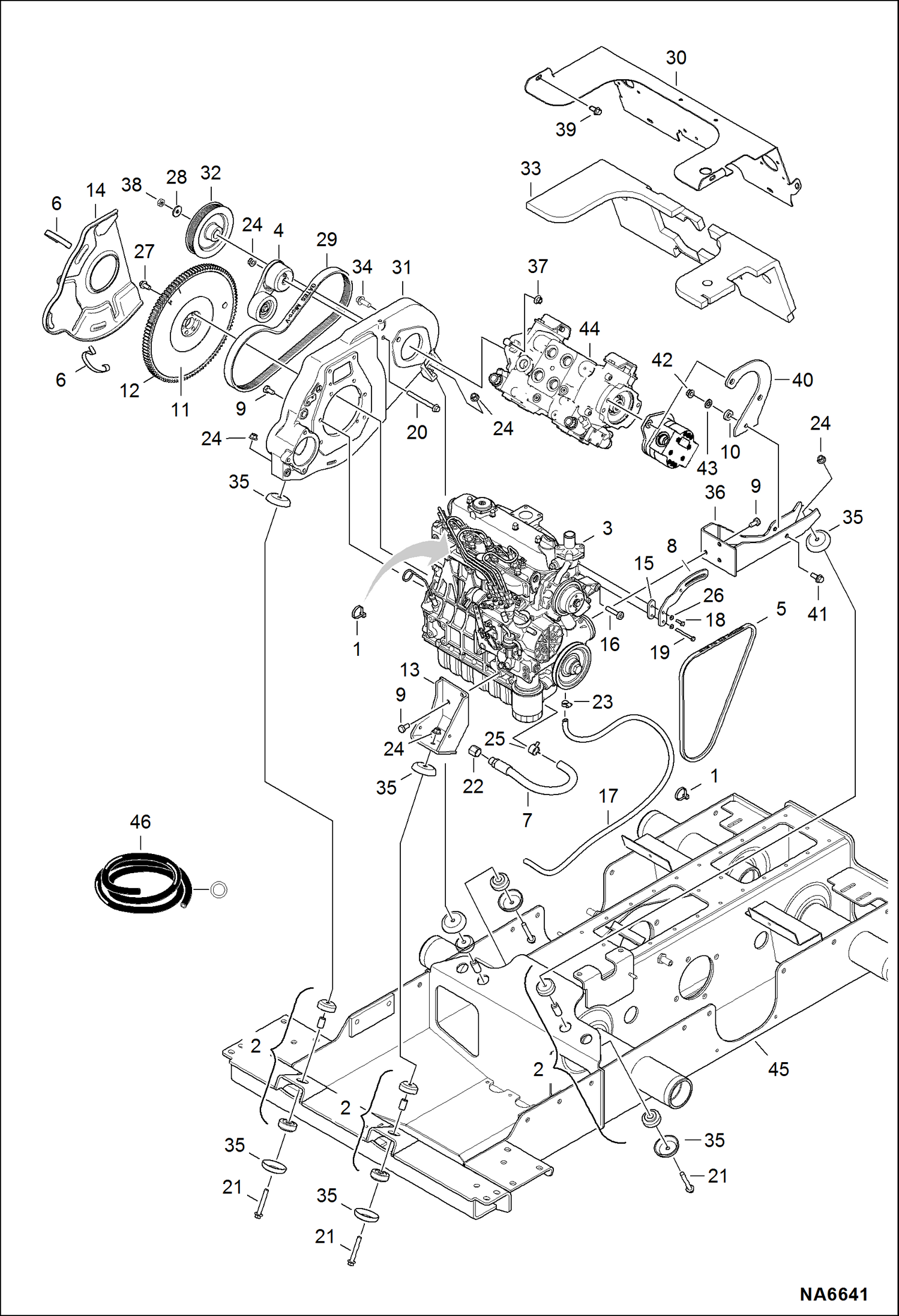

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive System & Engine Mounts) (Selectable Joystick Controls) POWER UNIT

1

6624289

STRAP, TIE

2

6688383

DAMPER VIBRATION

3

ENG, V1505-E3B-BCZ-1 See Illustration ENGINE & GASKET KITS/ EM9053

4

6689611

IDLER MICRO-V

5

6690143

BELT ALTERNATOR

6

6703022

CLIP

7

6715530

HOSE

8

6730867

BRACKET

9

6733378

SCREW

10

25E21

WASHER 5

11

7159011

FLYWHEEL ASSY W/Ref. 12

12

6510470

RING GEAR

13

7162336

ENGINE MOUNT ASSY

14

7163331

SHIELD DRIVE

15

7129969

WASHER PLATE ALT

16

7130342

BUSHING ALTERNATOR

17

HOSE, WATER DRAIN NLA - 860 mm (33.9'') long - Order Ref. 46

18

1CM620

BOLT

19

1CM660

BOLT

20

29CM1080

SCREW Was 29CM10100 - A

21

29CM1070

BOLT

22

36K6

CAP

23

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

24

51DM10

NUT

25

5HM20

CLAMP

26

6EM60

WASHER, SPRING

27

6661636

BOLT

28

6576033

WASHER

29

6688525

BELT MICRO-V

30

7159014

SHIELD

31

7155889

MOUNT, ENGINE

32

7150144

PULLEY, PUMP

33

7159005

INSULATOR

34

1C828

BOLT

35

7110825

SHIELD ENG MOUNT

36

7158995

ENGINE MOUNT ASSY

37

83D8

NUT 5

38

96D12

NUT

39

26GM10025

SCREW

40

7171122

BRACKET

41

29CM1025

BOLT

42

51DM10

NUT

43

6716408

SPACER

44

7001001

PUMP ASSY TANDEM See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM5266

45

7111317

TRANSMISSION W/A See Illustration MAIN FRAME/ EM7571 W/A

46

6577821

HOSE bulk - sold per foot
