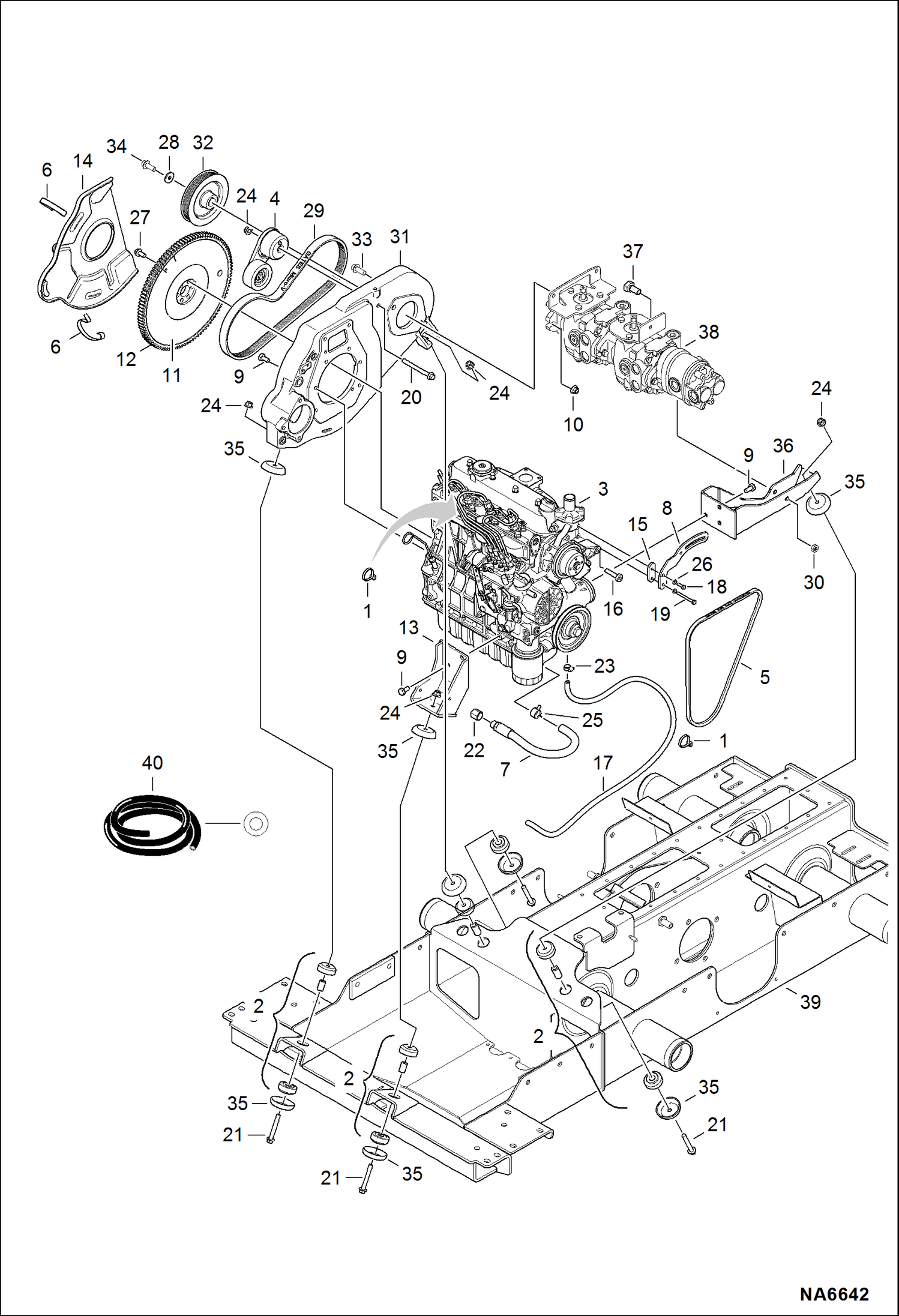

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive System & Engine Mounts) (Manual Controls) POWER UNIT

1

6624289

STRAP, TIE

2

6688383

DAMPER VIBRATION

3

ENG, V1505-E3B-BCZ-1 See Illustration ENGINE & GASKET KITS/ EM9053

4

6689611

IDLER MICRO-V

5

6690143

BELT ALTERNATOR

6

6703022

CLIP

7

6715530

HOSE

8

6730867

BRACKET

9

6733378

SCREW

10

43DM10

NUT

11

7159011

FLYWHEEL ASSY W/Ref. 12

12

6510470

RING GEAR

13

7162336

ENGINE MOUNT ASSY

14

7163331

SHIELD DRIVE

15

7129969

WASHER PLATE ALT

16

7130342

BUSHING ALTERNATOR

17

HOSE, WATER DRAIN NLA - 860 mm (33.9'') long - Order Ref. 43

18

1CM620

BOLT

19

1CM660

BOLT

20

29CM1080

SCREW Was 29CM10100 - B

21

29CM1070

BOLT

22

36K6

CAP

23

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

24

51DM10

NUT

25

5HM20

CLAMP

26

6EM60

WASHER, SPRING

27

6661636

BOLT

28

619021

WASHER, 5

29

7162825

BELT, MICRO-V

30

51DM10

NUT

31

7155888

MOUNT, ENGINE Was 7111411 - B

32

7160537

PUMP PULLEY MACH Was 7111418 - B

33

59CM1040

SCREW HX FLNG W/T8.8

34

5CM825

BOLT Was 5CM830 - B, D

35

7110825

SHIELD ENG MOUNT

36

7158995

ENGINE MOUNT ASSY

37

1CM1025

BOLT

38

7001032

PUMP HYDRST See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM8105

39

7111317

TRANSMISSION W/A See Illustration MAIN FRAME/ EM7571 W/A

40

6577821

HOSE bulk - sold per foot
