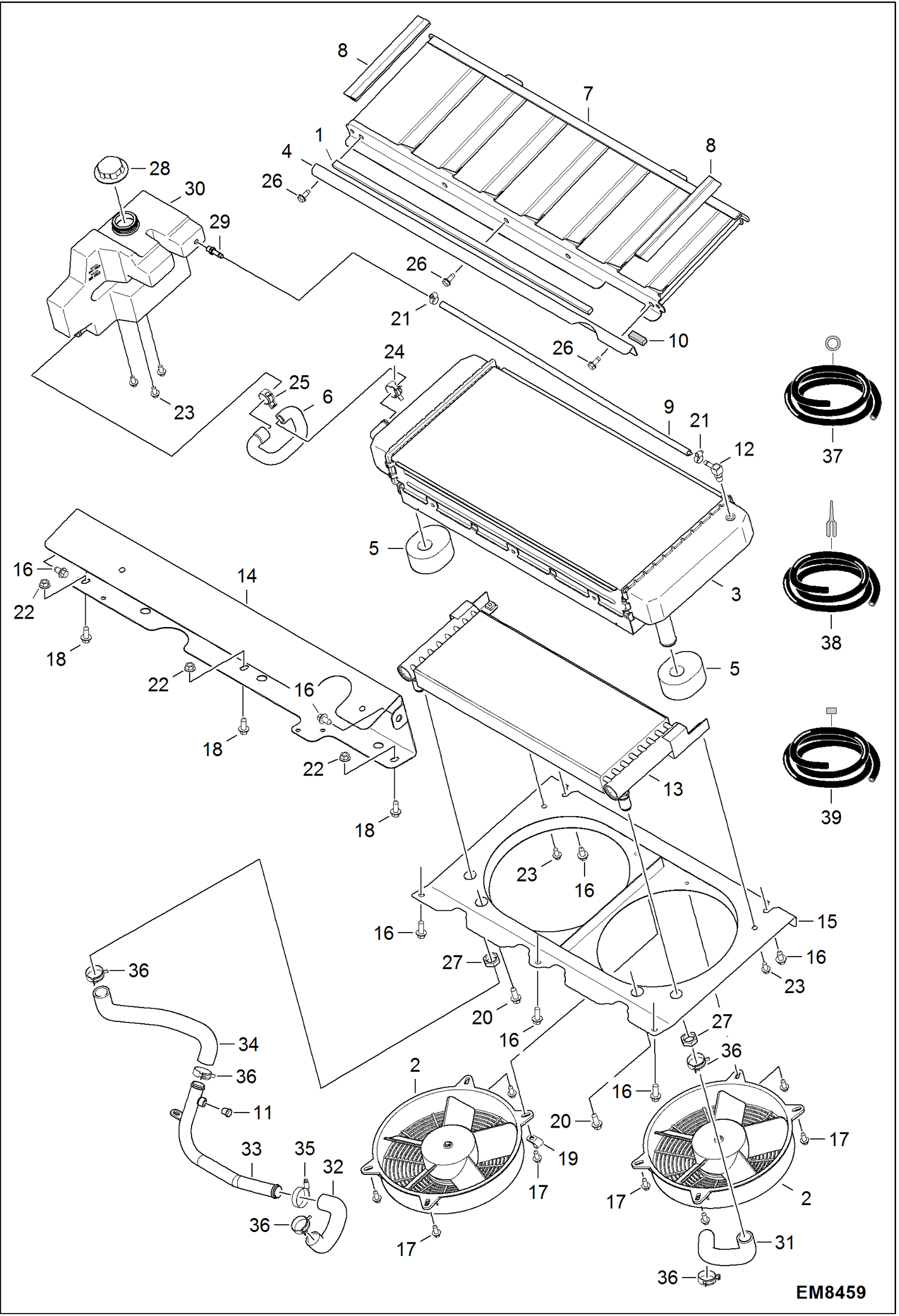

Запчасти Bobcat S-Series COOLING SYSTEM POWER UNIT

1

SEAL, GRILL NLA - 730 mm (28.50'') long - Order Ref. 39

2

6689178

FAN COOLING

3

6690594

EXCHANGE WTR COOLER

4

6703471

BRACKET

5

6736378

SPACER

6

7112777

HOSE, RECOVERY

7

7115703

SCREEN ASSY EXCHR

8

SEAL, COVER NLA - 227 mm (8.94'') long - Order Ref. 38

9

HOSE, COOLANT NLA - 701 mm (27.60'') long - Order Ref. 37

10

SEAL, GRILL NLA - 38 mm (1.50'') long - Order Ref. 39

11

40K6

PLUG

12

7148137

ELBOW 90 NPTF Was 6715183 - A

13

7158005

EXCHANGER Was 7115773 - A

14

7163333

PLATE COOLER

15

7183530

MOUNT, FAN ASSY Was 7111300 - A

16

26GM10020

BOLT Was 26GM10025 - A

17

26GM8020

SCREW

18

29CM1025

BOLT

19

30H22

CLIP Was 30H15 - A

20

35C512

BOLT

21

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

22

51DM10

NUT

23

59CM816

BOLT

24

5HM24

CLAMP

25

5HM26

CLAMP Was 5HM24 - A

26

84G3112

BOLT 5

27

86F7

LOCK NUT

28

6733429

CAP

29

6734236

ADAPTER

30

7142137

TANK COOLANT REC Was 7143514 - D

31

7111412

HOSE COOLING

32

7154219

HOSE, COOLING

33

7158593

TUBE COOLING ASSY Was 7124211 - A

34

7158600

HOSE COOLING

35

42HC200

CLAMP

36

5HM40

HOSECLAMP

37

6577822

HOSE bulk - sold per foot

38

6646705

SEAL bulk - sold per foot Was 7167241 - A

39

6511855

SEAL bulk - sold per foot Was 6511885 - D
