Запчасти Bobcat S-Series ELECTRICAL CIRCUITRY (Selectable Joystick Controls) ELECTRICAL SYSTEM

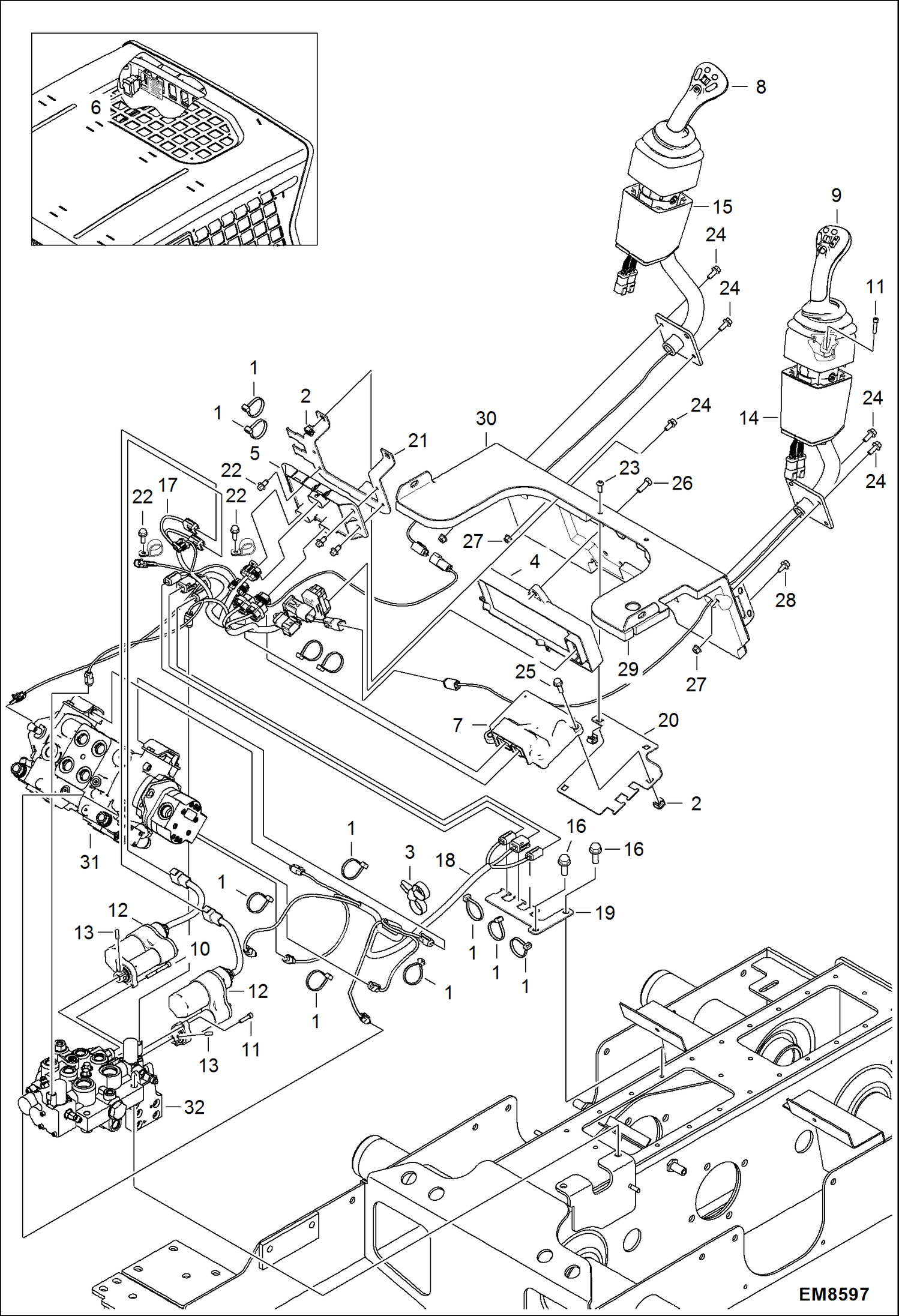

Схема запчастей Bobcat S-Series - ELECTRICAL CIRCUITRY (Selectable Joystick Controls) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6676169

NUT

3

6678668

STRAP, DUAL TIE

4

6679485

CONTROLLER SJC

5

6680410

CONTROLLER

6

6683812

SWITCH

7

6691288

CONTROLLER, AUX CONTROL

8

6697904

JOYSTICK, LH

9

6697905

JOYSTICK, RH

10

69G436

BOLT

11

6814021

BOLT

12

7101672

ACTUATOR

13

7108236

PIN

14

7123811

HANDLE

15

7123812

HANDLE

16

26GM10020

BOLT

17

7188079

HARNESS Was 7152343 - A

18

7199114

HARNESS Was 7154220 - A

19

7166215

BRACKET

20

7184358

BRACKET

21

7184359

BRACKET

22

26GM8016

SCREW

23

27CM820

BOLT

24

29CM820

SCREW

25

29CM830

CAPSCREW

26

43C616

BOLT

27

51DM8

NUT

28

26GM10025

SCREW

29

7159005

INSULATOR

30

7159014

SHIELD

31

7001001

PUMP ASSY TANDEM See Illustration HYDROSTATIC PUMP / GEAR PUMP/ EM5266

32

7164420

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM5243

Выбрано товаров: 32
