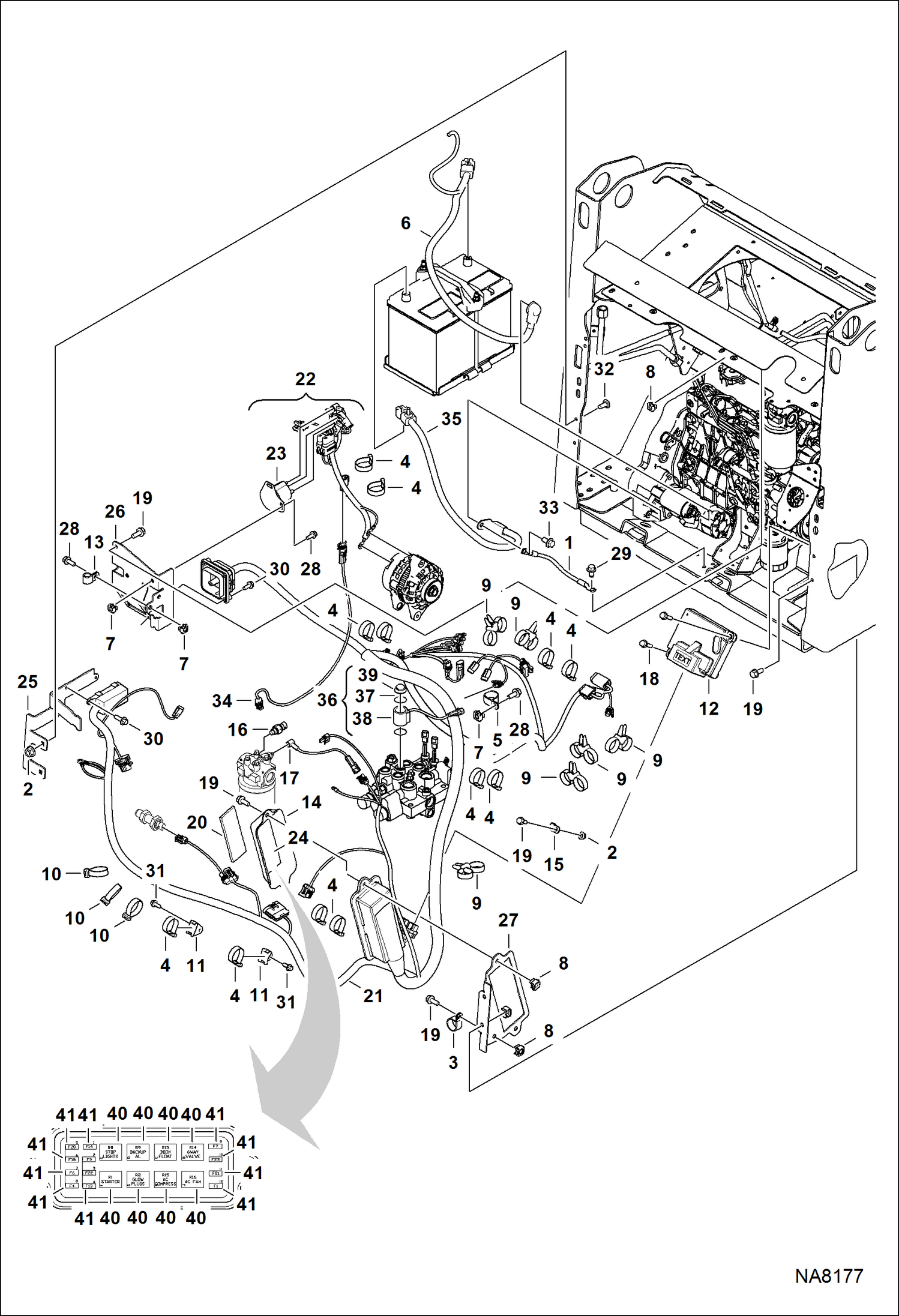

Запчасти Bobcat S-Series ELECTRICAL CIRCUITRY (Frame) ELECTRICAL SYSTEM

1

6565170

CABLE

2

43DM8

NUT

3

30H57

CLAMP

4

6624289

STRAP, TIE

5

30H38

CLIP

6

6731256

CABLE positive

7

6676026

NUT

8

6676169

NUT

9

6678668

STRAP, DUAL TIE

10

6678669

STRAP

11

6678818

MOUNT

12

6693353

CONTROLLER, GATEWAY

13

30H30

CLAMP

14

6716621

COVER

15

30H22

CLIP

16

6727869

SENDER,HYD TEMP

17

6728626

HARNESS

18

29CM830

CAPSCREW

19

29CM820

SCREW

20

6731275

INSULATION

21

7159002

MAINFRAME HARNESS

22

7159003

FAN HARNESS Ref. 23

23

6691625

RELAY fan

24

7159779

DECAL

25

7162824

HOLDER

26

7183526

BRACKET Was 7158997 - A

27

7183528

BRACKET Was 7158996 - A

28

29CM616

BOLT

29

26GM10020

BOLT

30

26GM6020

SCREW

31

26GM8020

SCREW

32

28CM820

BOLT

33

29CM1020

BOLT

34

7159004

HARNESS FUEL SENDER

35

6729008

CABLE negative

36

6675559

COIL W/diode - W/Ref. 37-39

37

54K20028

O RING 10

38

6671025

COIL

39

6668820

NUT

40

6679820

RELAY

41

6663289

FUSE, 5A 5A

41

6654806

FUSE, 15A 15A

41

6702444

FUSE 25A 5 25A

41

6718034

FUSE, 30A 30A
