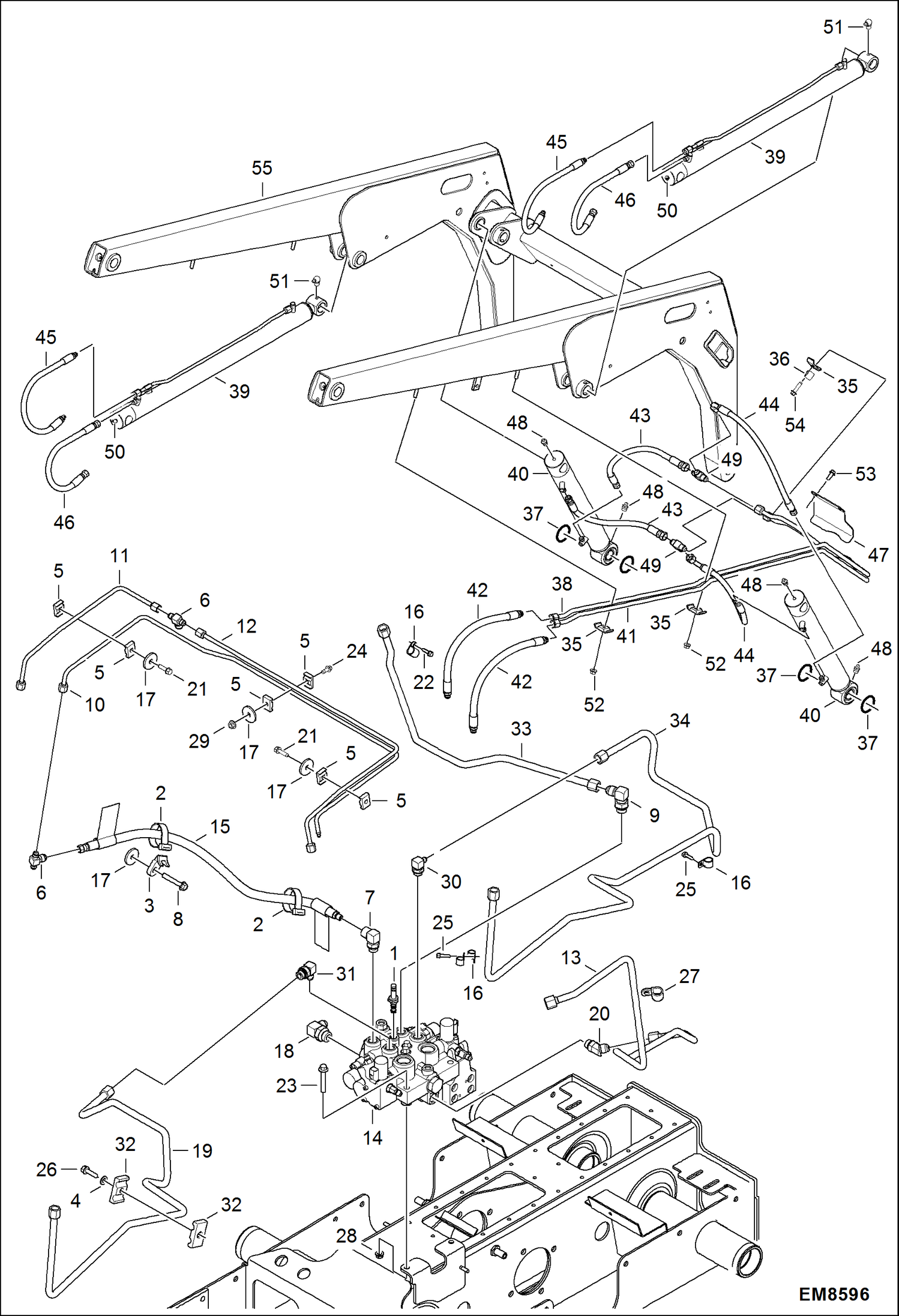

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6667687

VALVE, STEM SOLENOID

2

6678669

STRAP

3

6679034

MOUNT

4

17EM80

WASHER Was 17EM100 - A

5

6726277

CLAMP

6

6727659

TEE

7

6814531

ELBOW

7

79K10

O RING 10

8

26GM10030

BOLT

9

17KB0810

FITTING, HYD ELBOW

9

79K10

O RING 10

10

7163890

TUBELINE LIFT

11

7163891

TUBELINE LIFT

12

7163892

TUBELINE LIFT

13

7198840

TUBELINE HYDRAULIC Was 7163895 - A

14

7113129

VALVE ASSY SF SL See Illustration HYDRAULIC CONTROL VALVE/ EM7886 manual controls

14

7164420

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM5243 selectable joystick controls Was 7164419 - D

15

7165179

HOSE ASSEMBLY

16

30H31

CLAMP 10

17

17EM100

WASHER

18

17KB1012

FITTING, HYD ELBOW

18

79K12

O RING 10

19

7188822

TUBELINE, TILT Was 7163897 - A

20

18KB1010

FITTING, HYD ELBOW

20

79K10

O RING 10

21

26GM10040

SCREW SELF TAPPING

22

26GM10020

BOLT Was 29CM820 - A

23

29CM1270

BOLT

24

29CM835

BOLT

25

26GM8020

SCREW

26

26GM8040

SCREW SELF TAPPING Was 26GM10040 - A

27

30H38

CLIP

28

51DM12

NUT

29

51DM8

NUT

30

6816235

FITTING

30

79K10

O RING 10

31

17KB0810

FITTING, HYD ELBOW

31

79K10

O RING 10

32

6701892

CLAMP

33

7163889

TUBELINE Was 7115794 - A

34

7163896

TUBELINE BPV Was 7142010 - A

35

6502426

CLAMP

36

30H46

CLIP

37

6689112

SEAL

38

7111371

TUBELINE TILT

39

7113410

CYLINDER ASSY See Illustration LIFT CYLINDER/ NA8095 Was 7113409 - D

40

7113506

CYLINDER, TILT See Illustration TILT CYLINDER/ NA8096

41

7115755

TUBELINE TILT

42

7115768

HOSE ASSY TILT

43

7127001

HOSE ASSY TILT CYL

44

7127002

HOSE ASSY TILT CYL

45

7165727

HOSE ASSY LIFT CYL Was 7113918 - B

46

7165728

HOSE ASSY LIFT CYL Was 7121943 - B

47

7170916

SHIELD, TUBELINE Was 7116024 - B

48

10H25

FITTING, GREASE 5

49

10K6

FITTING

50

11H15

GREASE FITTING 45 degree

51

12H15

FITTING, GREASE 5 90 degree

52

51DM10

NUT

53

26GM10025

SCREW

54

26GM10040

SCREW SELF TAPPING

55

7163105

BOOM ASSY See Illustration LIFT ARM/ EM7414
