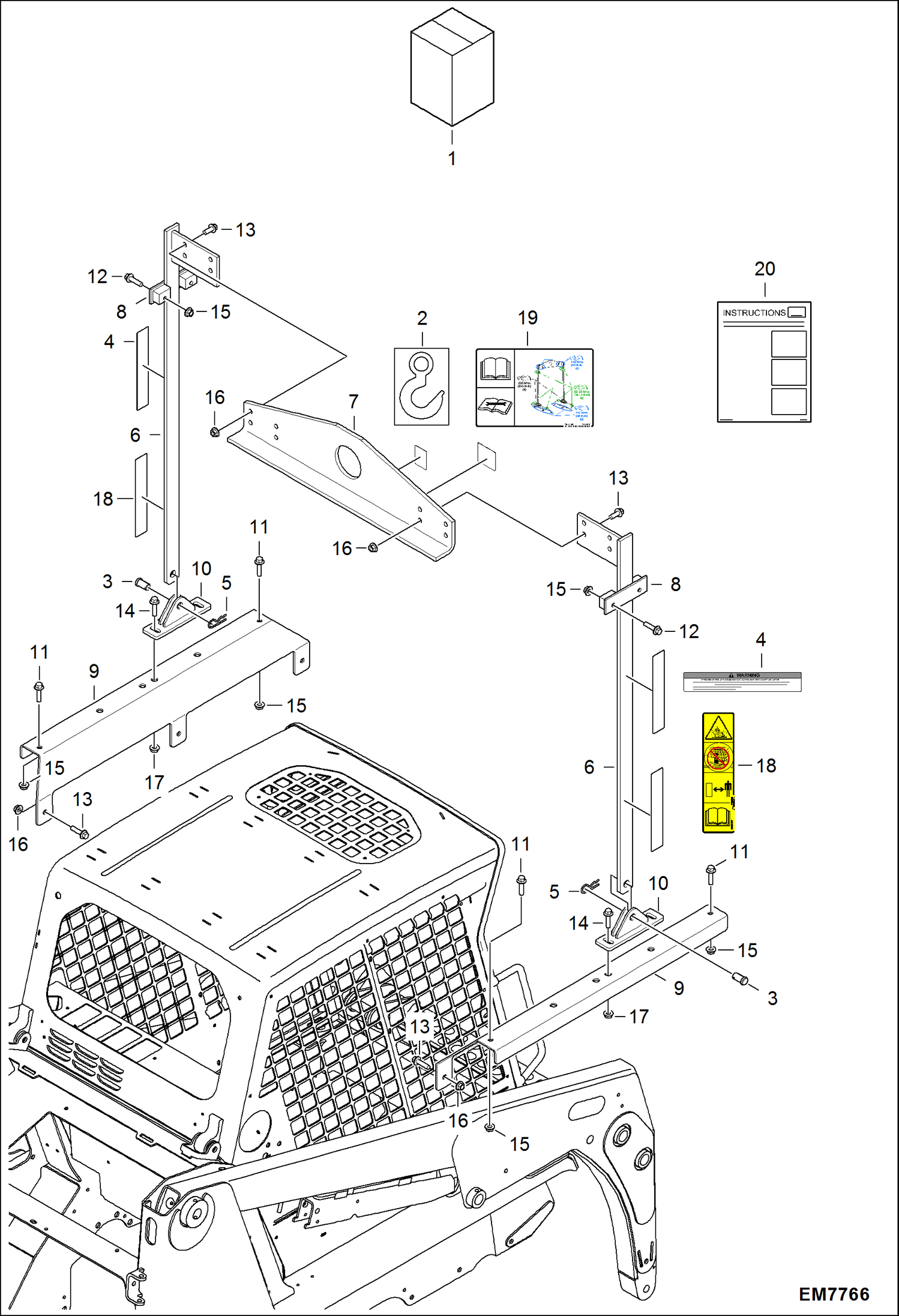

Запчасти Bobcat S-Series LIFT KIT (Single Point) ACCESSORIES & OPTIONS

1

7186703

KIT SINGLE PNT LIFT Ref. 2-20 Was 7148037 - A

2

6533898

DECAL

3

6567838

PIN

4

6704786

DECAL, WARNING

5

1320075

PIN, COTTER

6

7155492

ARM ASSY SINGLE PT

7

7155495

ANGLE LIFT

8

7155497

MOUNT ASSY SNGL PT

9

7186655

BEAM

10

7186657

MOUNT ASSY, FENDER

11

29CM1025

BOLT

12

29CM1055

BOLT

13

30CM1240

BOLT

14

30CM1650

Screw Hex HD W/F10.9

15

51DM10

NUT

16

51DM12

NUT

17

51DM16

NUT

18

7168020

DECAL, WARNING

19

7201903

DECAL, SERVICE

20

6989519

INSTRUCTIONS, INSTALLATION Was 6986790 - D
