Запчасти Bobcat S-Series HEATER ACCESSORIES & OPTIONS

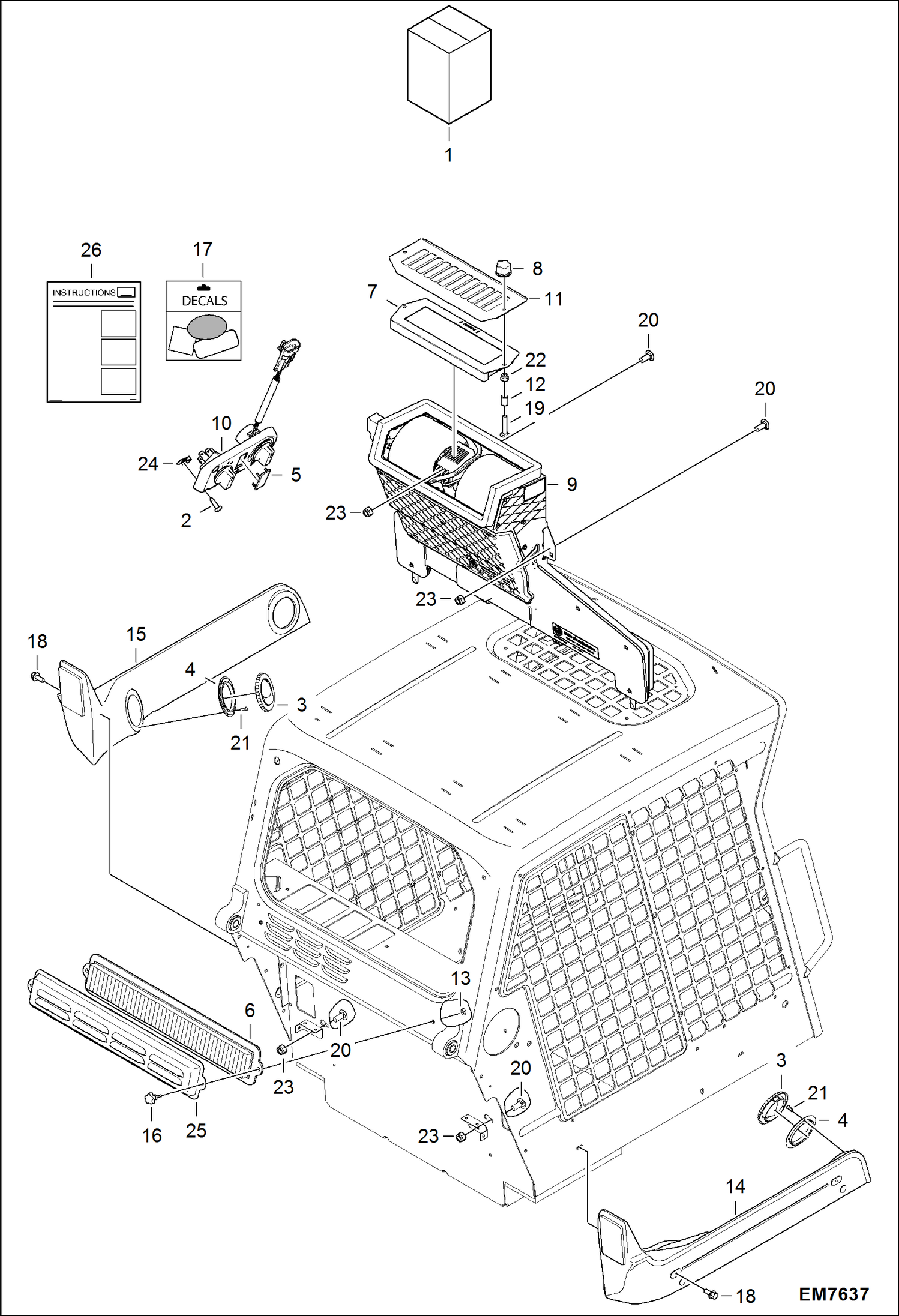

Схема запчастей Bobcat S-Series - HEATER ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT, HEATER NLA - Ref. 2-26

2

6669224

BOLT

3

6674231

VENT, HEATER CAB ROUND

4

6675179

FLANGE

5

6675181

PLUG

6

6677983

FILTER, AIR HEATER CAB

7

6678207

FILTER

8

6681614

KNOB

9

HEATER ASSY See Illustration HEATER/ EM7632

10

6697906

PANEL, CONTROL

11

6718175

SCREEN

12

6718837

SPACER

13

6676516

NUT

14

6735245

DUCT

15

6735246

DUCT

16

6726386

KNOB

17

7121572

DECAL PACKAGE

18

35C410

BOLT 5

19

37C424

BOLT

20

37C512

BOLT

21

57G608

SCREW

22

59D4

NUT 5

23

59D5

NUT 5

24

6669091

CLIP

25

6727847

COVER

26

6904255

INSTRUCTIONS Was 6987152 - D

Выбрано товаров: 26
