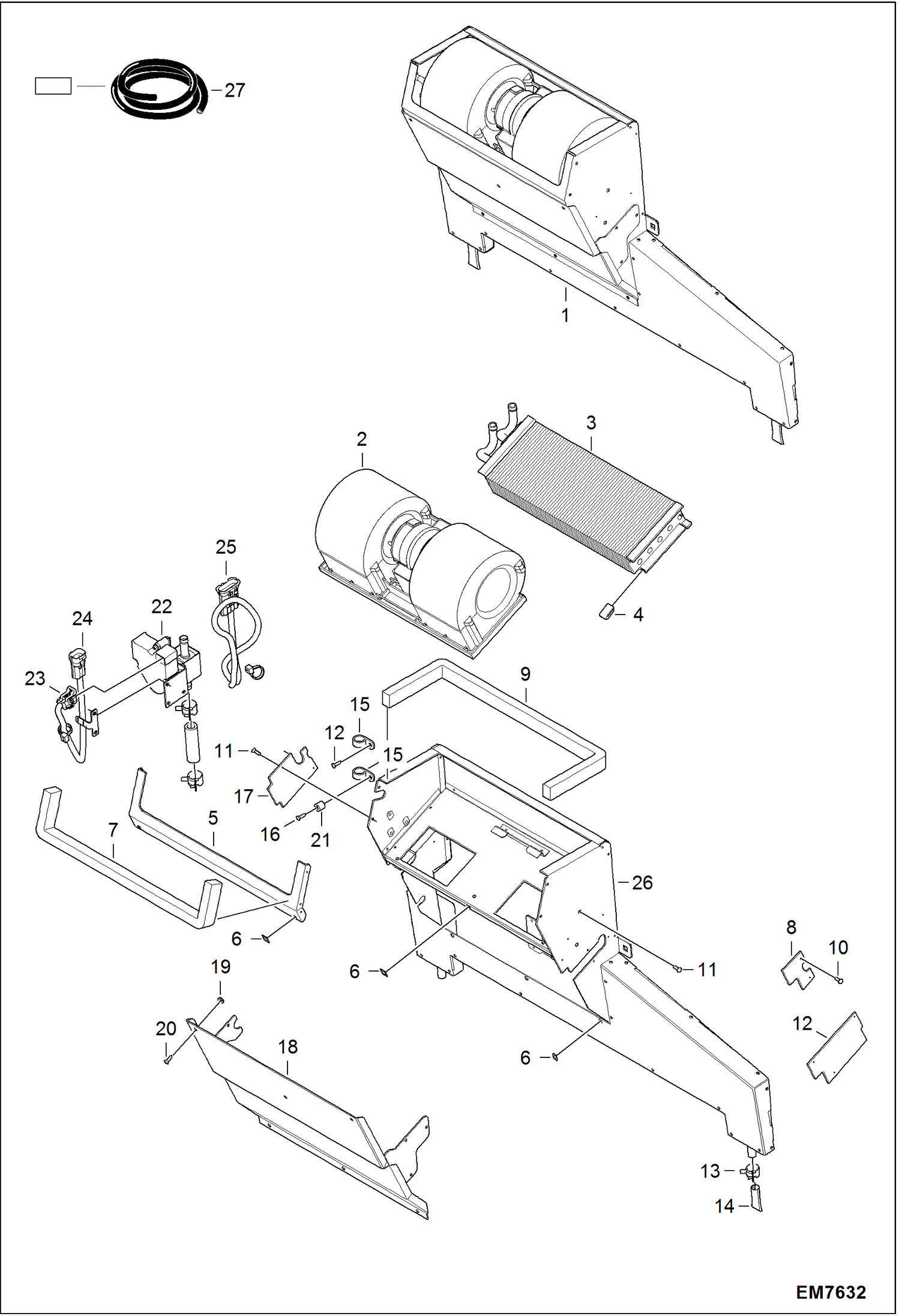

Запчасти Bobcat S-Series HEATER (Heater Assembly) (Model 13-8377) ACCESSORIES & OPTIONS

1

HEATER ASSY See Illustration HEATER/ EM7633 NLA - Ref. 2-26 - Model 13-8377

2

6689696

VALVE, HEATER CAB See Illustration HEATER/ EM7634

3

6689770

KIT, HEATER COIL - NSS See Illustration HEATER/ EM7636 Was 6727786 - A

4

6676539

CLIP

5

6678152

SEAL FLANGE

6

6677115

RECEPTACLE

7

SEAL NLA - 575 mm (22'') long - Order Ref. 27

8

6677105

COVER

9

SEAL NLA - 635 mm (25'') long - Order Ref. 27

10

6677119

SCREW

11

6691532

SCREW Was 6677118 - A

12

6677120

COVER

13

6675510

CLAMP

14

6675511

DRAIN VALVE

15

6675512

CLAMP

16

6676653

SCREW

17

6677504

COVER

18

6678151

COVER

19

6677116

RETAINER

20

6677117

SCREW

21

6676606

SPACER

22

7101928

VALVE, HEATER CAB

23

6641174

CONNECTOR

24

6641173

CONNECTOR 6-pin

25

6665017

CONNECTOR 4-pin

26

6677108

HOUSING

27

6677111

SEAL bulk - sold per foot
