Запчасти Bobcat S-Series WATER PUMP REPLACEMENT ENGINE

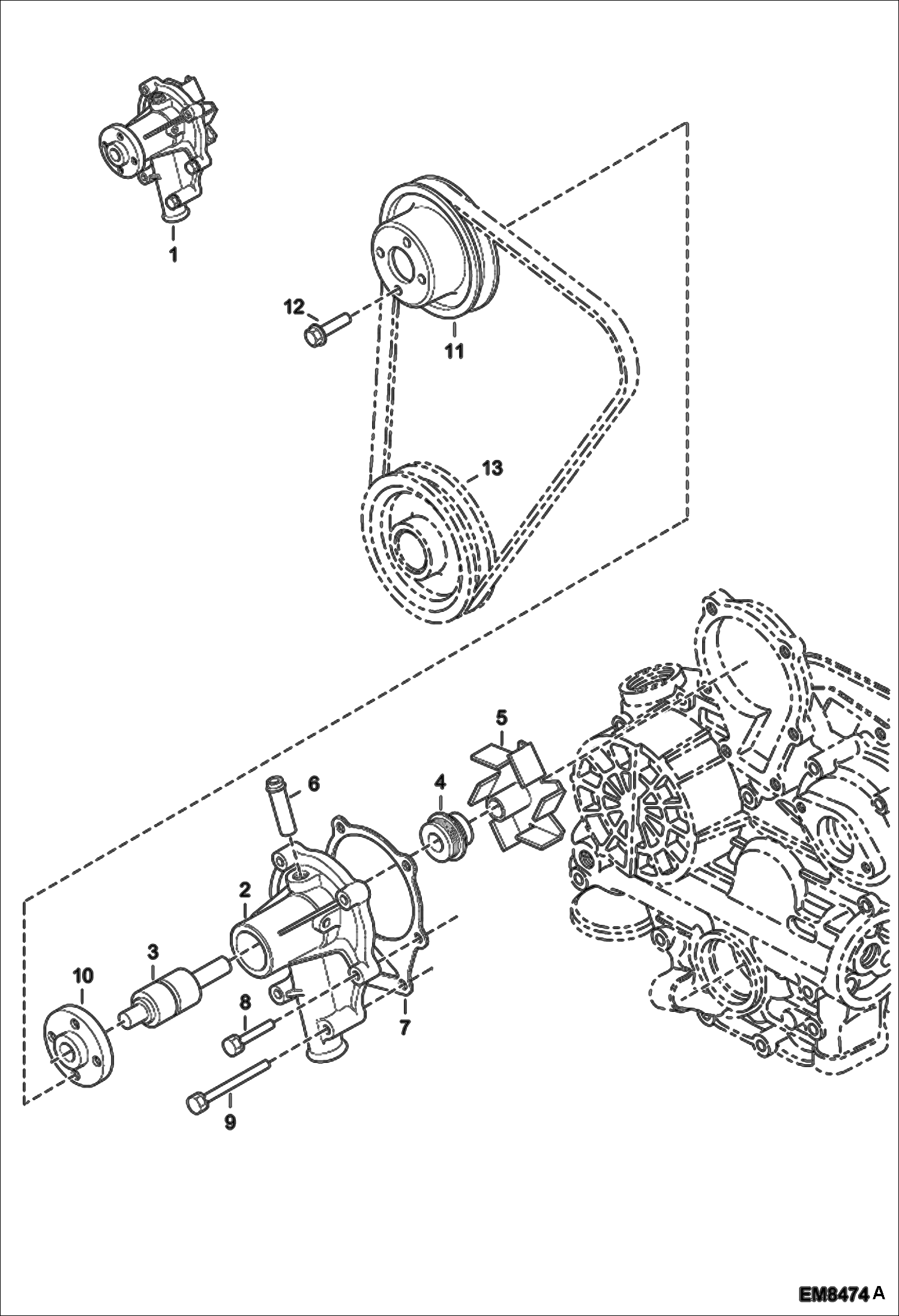

Схема запчастей Bobcat S-Series - WATER PUMP REPLACEMENT ENGINE

Артикул

Название

Примечание

Количество

1

6680278

WATER PUMP Ref. 2-10

2

HOUSING NLA - Order Ref. 1

3

6657612

BEARING

4

6680280

SEAL

5

6657611

IMPELLER

6

6652745

PIPE

7

6657610

GASKET

8

4CM630

BOLT

9

6686034

BOLT

10

6680279

FLANGE

11

6657585

PULLEY

12

6653578

BOLT Was 6680803 - B,D

13

6657586

PULLEY See Illustration PISTON, CRANKSHAFT & MAIN BEARING CASE/ EM8041A Was 7008348 - A

Выбрано товаров: 13
