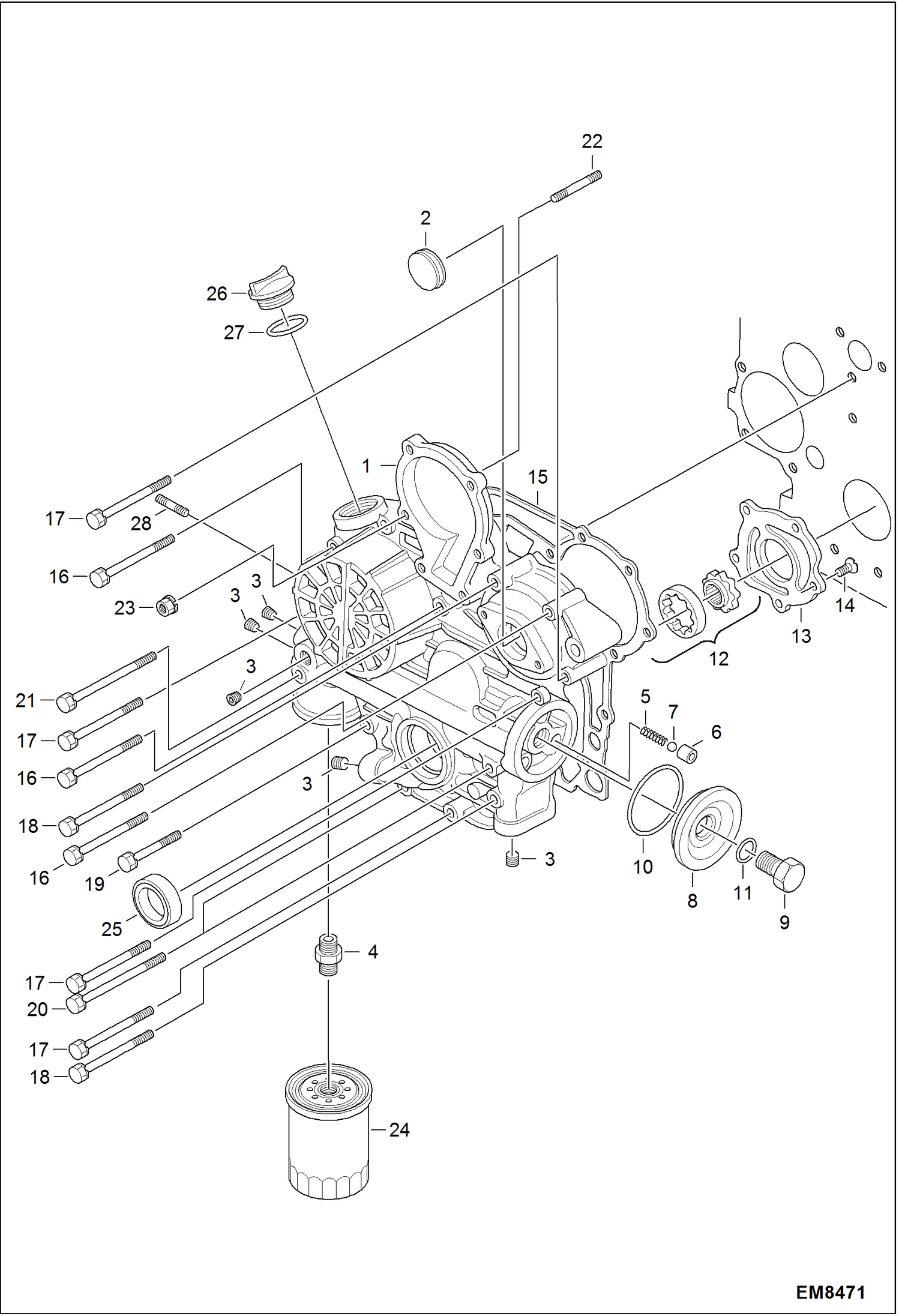

Запчасти Bobcat S-Series GEAR CASE REPLACEMENT ENGINE

1

6692540

COMP. CASE, GEAR Ref. 3-14

2

6681662

COVER

3

6672360

PLUG

4

6652597

ADAPTER

5

6657554

SPRING

6

6657553

SEAT

7

6657426

BALL

8

6657604

COVER

9

6688075

BOLT

10

6657422

O-RING

11

6670769

O-RING

12

6657549

ROTOR ASSY

13

6657606

COVER

14

6657594

BOLT

15

6657479

GASKET

16

6657412

BOLT

17

6670770

BOLT

18

6657413

BOLT

19

6657457

BOLT

20

6657589

BOLT

21

6657613

BOLT

22

6680263

STUD

23

6653561

NUT

24

6657635

FILTER, OIL ENG Was 7010116 - A

25

6657603

SEAL

26

6685924

CAP

27

6683009

O-RING

28

6680264

STUD
