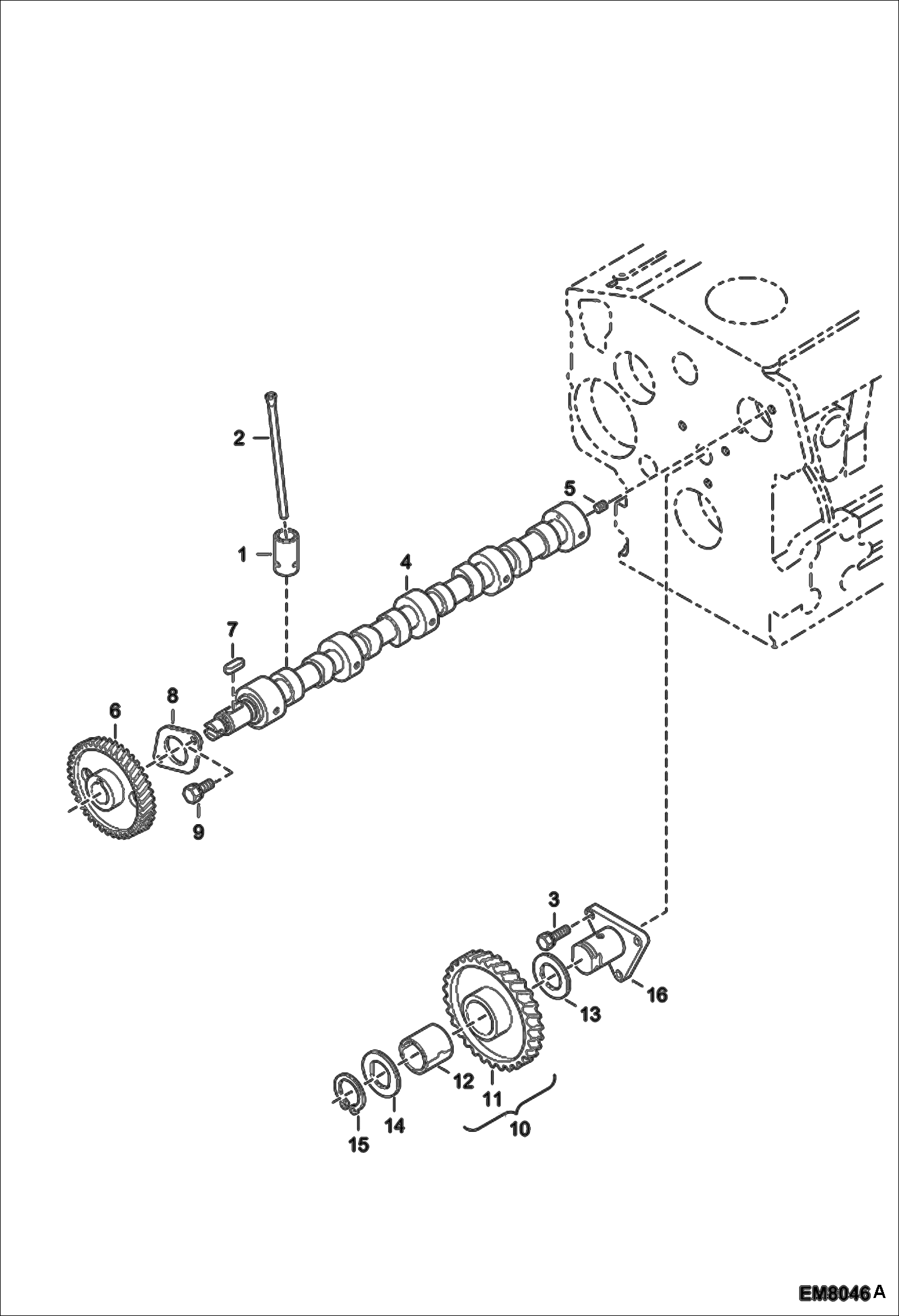

Запчасти Bobcat S-Series CAMSHAFT & IDLE GEAR SHAFT REPLACEMENT ENGINE

1

6691307

TAPPET

2

6657515

PUSH ROD

3

1CM616

SCREW Was 4CM616 - A

4

6691308

CAMSHAFT W/Ref. 5-9

5

6653839

SCREW

6

6653841

GEAR

7

6653842

KEY

8

6657517

STOPPER

9

1CM616

SCREW Was 4CM616 - A

10

6657632

GEAR Ref. 11-12

11

GEAR NLA - Order Ref. 10

12

6680618

BUSHING

13

6657544

COLLAR

14

6657545

COLLAR

15

6657543

SNAP RING

16

6657542

SHAFT
