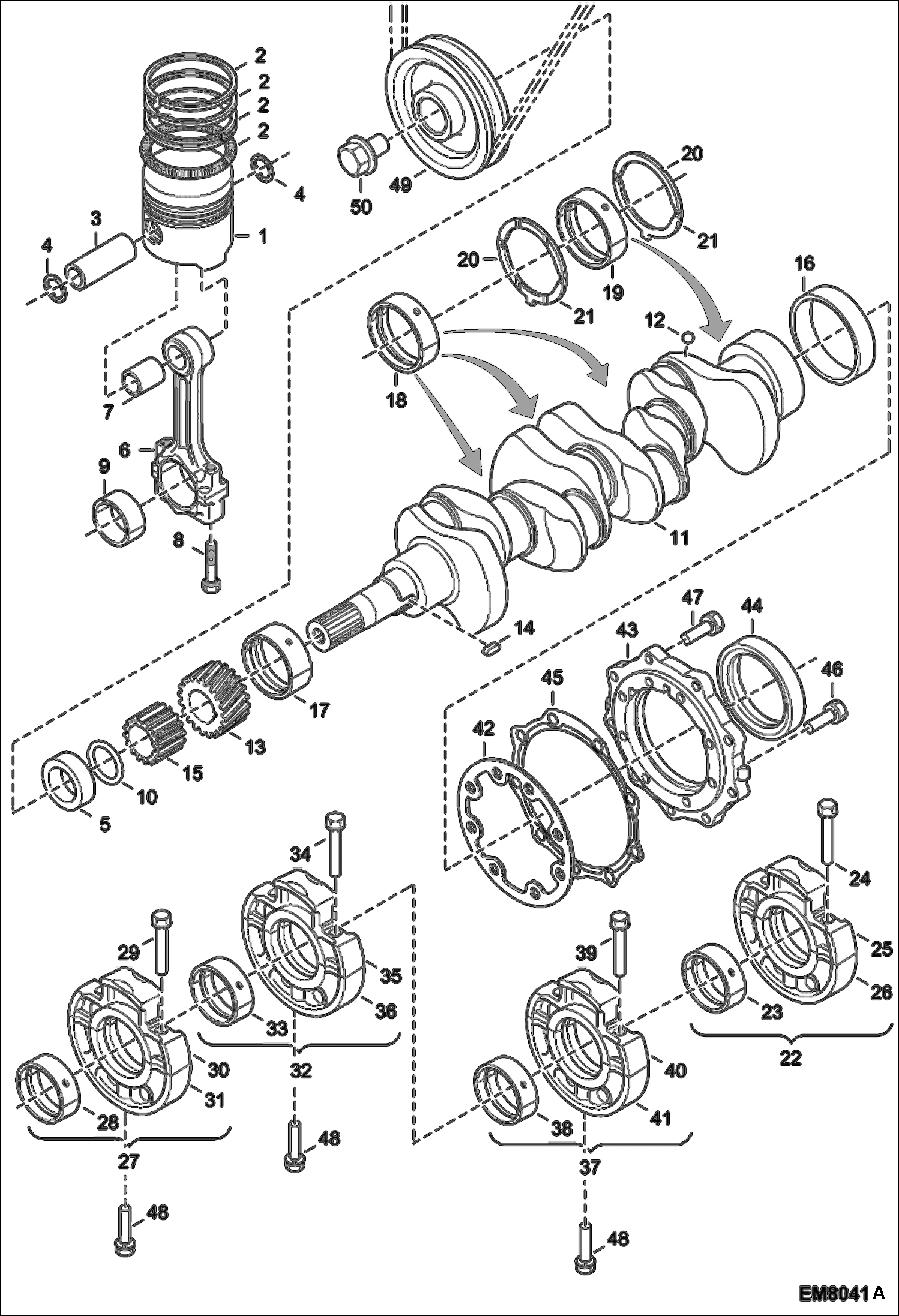

Запчасти Bobcat S-Series PISTON, CRANKSHAFT & MAIN BEARING CASE REPLACEMENT ENGINE

1

6698613

PISTON, ENG std (16060-2111) - Was 6657620 - B,D

1

6689940

PISTON +0,50 mm (16060-2112 OS50) - Was 6680620 - B,D

2

6680494

RING ASSY standard

2

6680516

RINGS PISTON 0,50 mm (0.02'')

3

6657521

PIN

4

6657522

SNAP RING

5

6657530

COLLAR

6

6692542

ASSY ROD, CONNECTING W/Ref. 7-9

7

6657524

BUSHING

8

6657526

BOLT

9

6657527

ROD BEARING standard set

9

6657528

BEARING, ENG ROD CONNECTING - 0,2 mm (- 0.008'') Set

9

6657529

ROD BEARING - 0,4 mm (- 0.016'') Set

10

6680268

O-RING

11

6657667

CRANKSHAFT W/Ref. 12-21

12

6652633

BALL 1/4''

13

7022685

GEAR, CRANKSHAFT Was 6657541 - A

14

6657661

KEY

15

6657552

GEAR

16

6657531

SLEEVE

17

6657532

BEARING standard

17

6657537

BEARING - 0,2 mm (- 0.008'')

17

6657538

BEARING - 0,4 mm (- 0.016'')

18

6657533

BEARING standard set

18

6657539

BEARING - 0,2 mm (- 0.008'') Set

18

7023136

BEARING, ENG CRANKSHAFT -0,40 mm - Was 6657540 - A

19

6657534

BEARING standard Set

19

6680270

BEARING - 0,2 mm (- 0.008'') Set

19

6680271

BEARING - 0,4 mm (- 0.016'') Set

20

3974945

WASHER, THRUST standard

20

6654715

WASHER, THRUST 0,2 mm (0.008'')

20

3975022

WASHER, THRUST 0,4 mm (0.016'')

21

6653865

WASHER, THRUST standard

21

6654002

WASHER, THRUST 0,2 mm (0.008'')

21

6654003

WASHER, THRUST 0,4 mm (0.016'')

22

6691302

BEARING CASE Ref. 23-26

23

6657534

BEARING

24

6657482

BOLT

25

HOUSING NLA - Order Ref. 22

26

HOUSING NLA - Order Ref. 22

27

6691304

CASE, BEARING W/Ref. 28-31

28

6657533

BEARING standard set

29

6657482

BOLT

30

HOUSING NLA - Order Ref. 27

31

HOUSING NLA - Order Ref. 27

32

6691305

CASE, BEARING W/Ref. 33-36

33

6657533

BEARING standard set

34

6657482

BOLT

35

HOUSING NLA - Order Ref. 32

36

HOUSING NLA - Order Ref. 32

37

6691306

BEARING CASE W/Ref. 38-41

38

6657533

BEARING standard set

39

6657482

BOLT

40

HOUSING NLA - Order Ref. 37

41

HOUSING NLA - Order Ref. 37

42

6657480

GASKET

43

6657484

COVER

44

6657481

SEAL

45

6698617

GASKET, COVER CASE Was 6672368 - A

46

1CM625

BOLT Was 4CM625 - A

47

1CM620

BOLT Was 4CM620 - A

48

6657483

BOLT

49

6657586

PULLEY Was 7008348 - A

50

6680540

BOLT
