Запчасти Bobcat S-Series UPPER GASKET KIT REPLACEMENT ENGINE

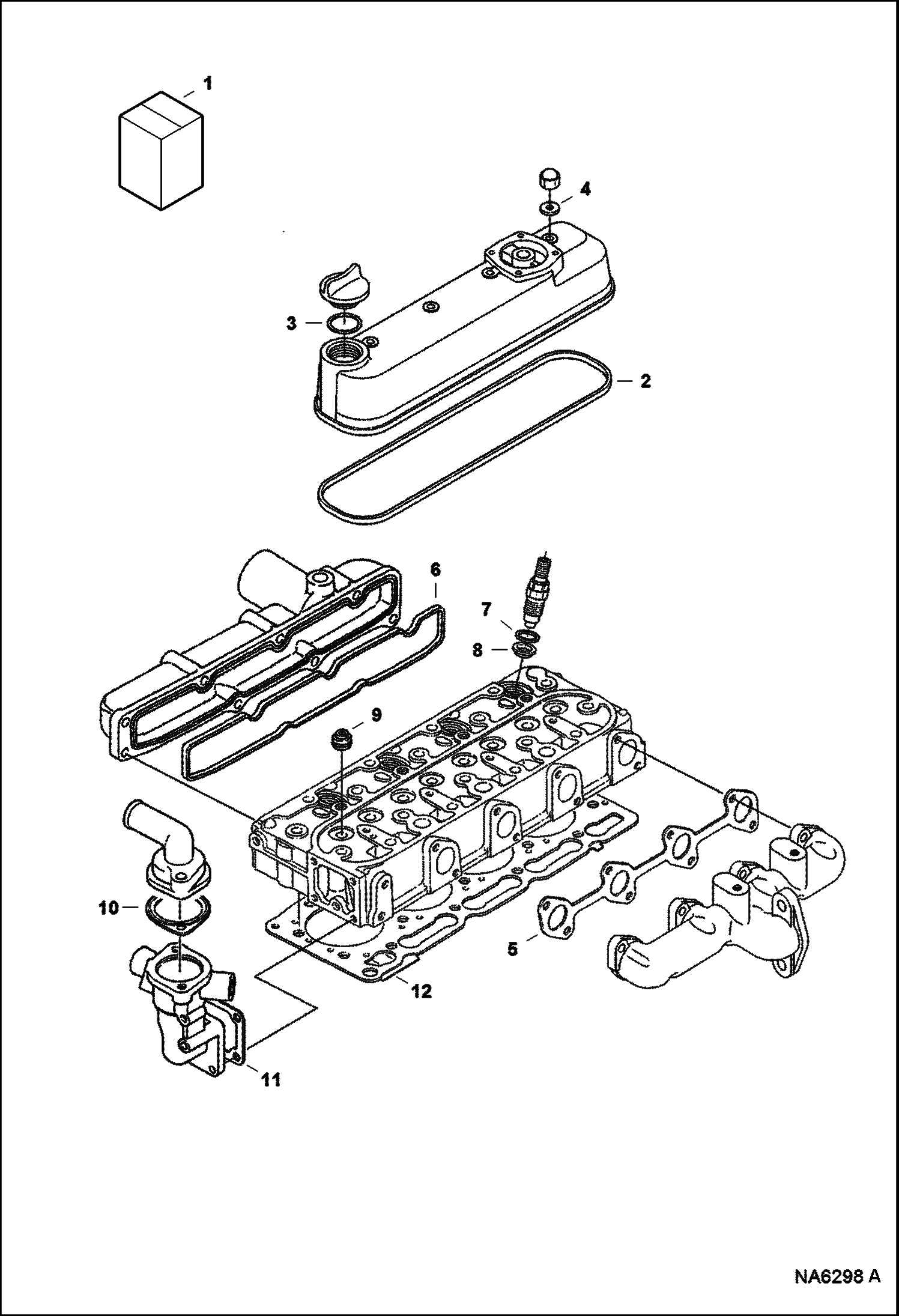

Схема запчастей Bobcat S-Series - UPPER GASKET KIT REPLACEMENT ENGINE

Артикул

Название

Примечание

Количество

1

6698619

KIT, GASKET ENG UPPER Ref. 2-12

2

6657514

GASKET See Illustration ROCKER ARM COVER/ EM8481A - valve cover

3

6683009

O-RING See Illustration ROCKER ARM COVER/ EM8481A - oil filler cap

4

6599116

GASKET See Illustration ROCKER ARM COVER/ EM8481A - valve cover nut

5

6657494

GASKET See Illustration MANIFOLDS/ EM8480A - exhaust manifold

6

6657493

GASKET See Illustration MANIFOLDS/ EM8480A - intake manifold

7

6655218

GASKET See Illustration NOZZLE HOLDER & GLOW PLUG/ EM8043A - injector nozzle

8

6655872

HEAT SEAL See Illustration NOZZLE HOLDER & GLOW PLUG/ EM8043A - injector nozzle

9

6672436

SEAL See Illustration VALVES & ROCKER ARM/ EM8482A - valve stem

10

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ EM8476 - thermostat

11

6657583

GASKET See Illustration WATER FLANGE & THERMOSTAT/ EM8476 - thermostat housing

12

6691297

GASKET See Illustration CYLINDER HEAD/ EM8469 - cylinder head

Выбрано товаров: 12
