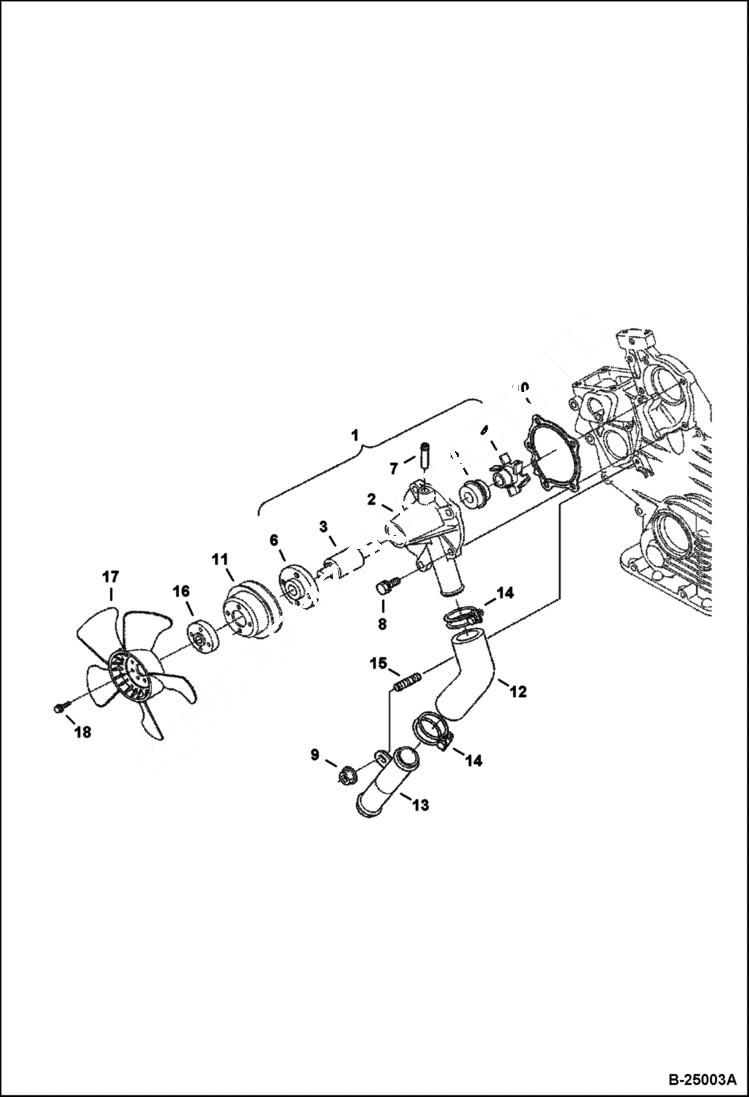

Запчасти Bobcat Mini Tracks Loaders WATER PUMP (Kubota D902-E3B-BC-1)(Tier IV Replacement) REPLACEMENT ENGINE

1

6687713

PUMP, WATER Ref. 2-7

2

BODY NSS

3

6670507

BEARING

4

6687680

IMPELLER

5

6657432

SEAL

6

6599062

FLANGE

7

6652745

PIPE water return

8

4CM622

BOLT

9

6670533

NUT

10

7000394

GASKET, PUMP WATER

11

6670964

PULLEY

12

6693091

PIPE

13

6676563

PIPE

14

6687666

CLAMP

15

6683087

STUD

16

6698161

COLLAR, FAN

17

6685741

FAN

18

6680544

BOLT
