Запчасти Bobcat Mini Tracks Loaders LOWER GASKET KIT (Kubota D902-E3B-BC-1)(Tier IV Replacement) REPLACEMENT ENGINE

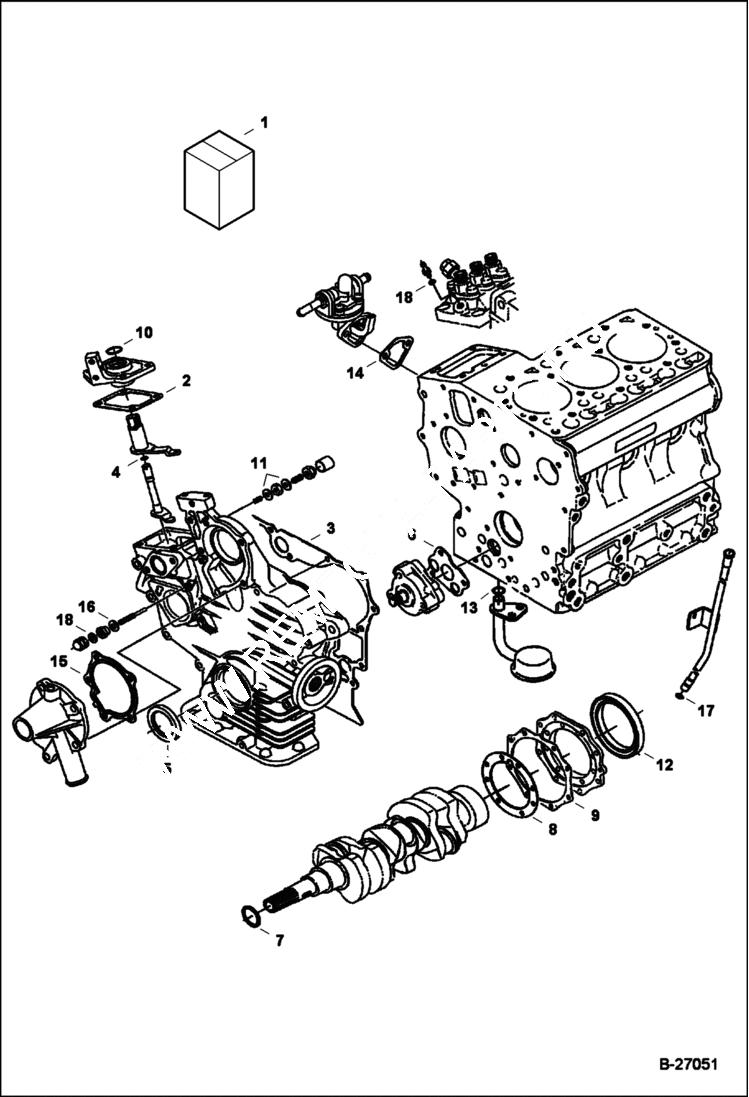

Схема запчастей Bobcat Mini Tracks Loaders - LOWER GASKET KIT (Kubota D902-E3B-BC-1)(Tier IV Replacement) REPLACEMENT ENGINE

Артикул

Название

Примечание

Количество

1

7000464

KIT, GASKET ENG LOWER Ref. 3-18

2

6670457

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B27057 - speed control plate

3

6698146

GASKET, GEAR CASE See Illustration GEARCASE/ B27226

4

6683023

O-RING See Illustration SPEED CONTROL & STOP LEVER/ B27057 - speed control shaft

5

6670358

SEAL See Illustration GEARCASE/ B27226 - front crankshaft

6

6670341

GASKET See Illustration CRANKCASE/ B27304 - oil pump

7

6683014

SEAL See Illustration PISTON & CRANKSHAFT/ B27227 - crankshaft

8

6687717

GASKET See Illustration PISTON & CRANKSHAFT/ B27227 - bearing case

9

7000494

GASKET See Illustration PISTON & CRANKSHAFT/ B27227 - rear cover - Was 6670379 - A

10

6683021

SEAL See Illustration SPEED CONTROL & STOP LEVER/ B27057 - stop lever

11

3974095

MET-GASK See Illustration SPEED CONTROL & STOP LEVER/ B27057 - idle assy

12

6687691

SEAL See Illustration PISTON & CRANKSHAFT/ B27227 - rear crankshaft

13

6680284

O-RING See Illustration CRANKCASE/ B27304 - oil screen

14

6670782

GASKET See Illustration FUEL & INJECTION PUMP/ B27230 - fuel pump

15

7000394

GASKET, PUMP WATER See Illustration WATER PUMP/ B25003

16

6687687

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B27057

17

6673314

O-RING See Illustration OIL PAN/ B27225 - dipstick guide - not in kit

18

3974972

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B27057 See Illustration INJECTOR NOZZLES/ B27229

Выбрано товаров: 18
