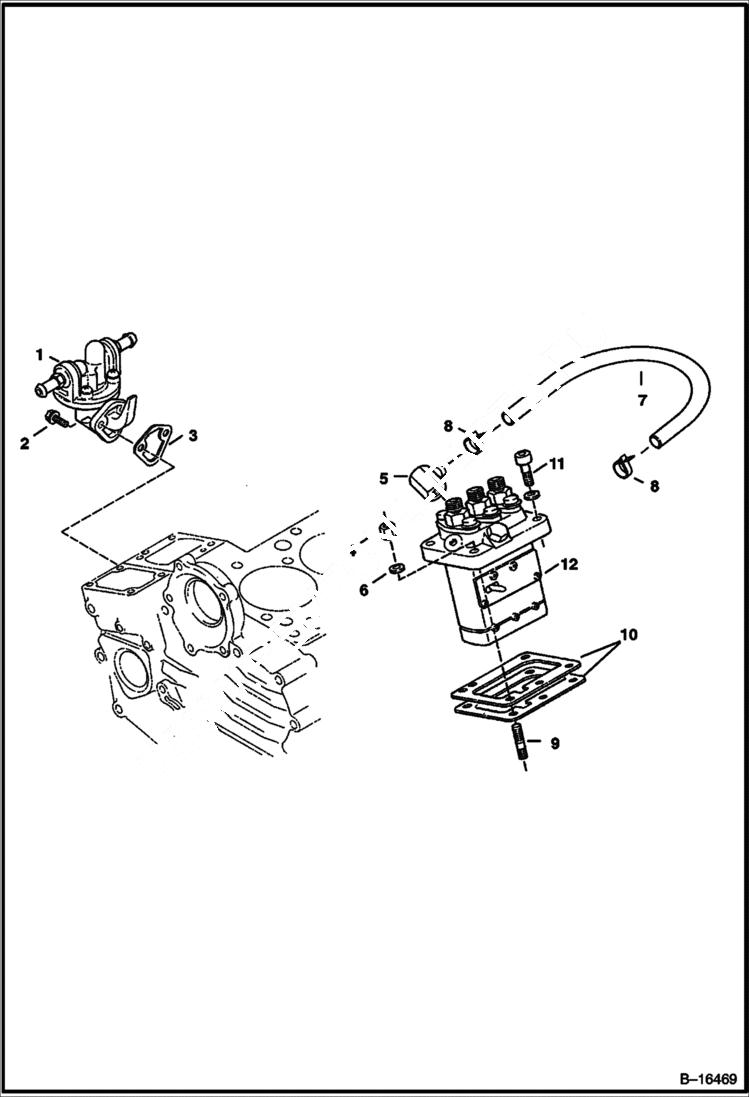

Запчасти Bobcat Mini Tracks Loaders FUEL & INJECTION PUMP POWER UNIT

1

6687727

PUMP

2

1CM616

SCREW Was 4CM616 - A

3

6670782

GASKET Included W/lower gasket kit

4

6657461

NUT

5

6687673

FITTING

6

6667419

WASHER

7

6598694

HOSE W/Ref. 8

8

6680274

CLAMP

9

6657458

STUD

10

6670433

SHIM 0,20 mm

10

6672391

SHIM 0,25mm

10

6670777

SHIM 0,30 mm

11

6657417

BOLT

12

PUMP, FUEL INJ See Illustration INJECTION PUMP/ B25037 Was 6670432 - B
