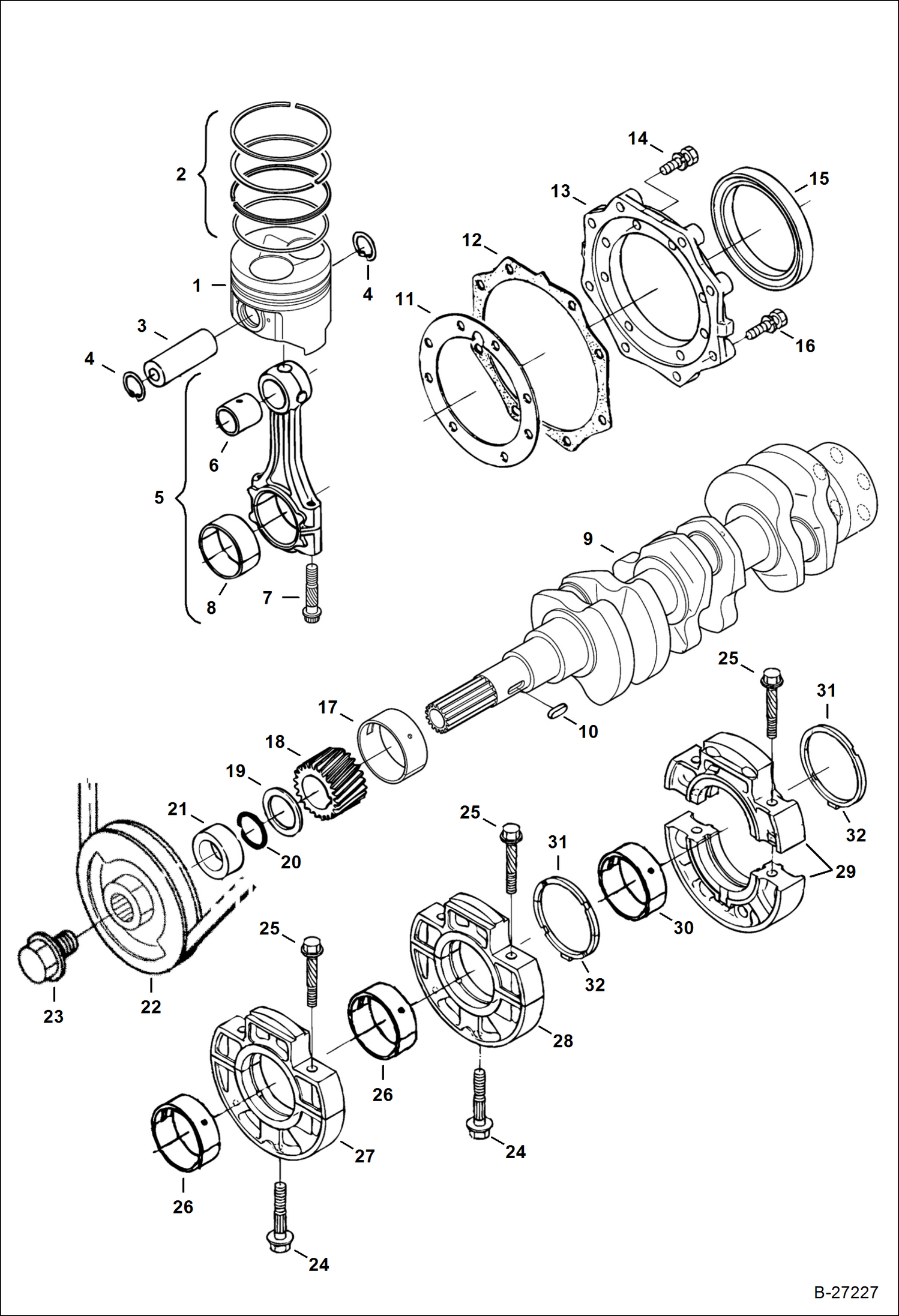

Запчасти Bobcat Mini Tracks Loaders PISTON & CRANKSHAFT POWER UNIT

1

PISTON, ENG NLA - std (1G960-2111) - Order 7000476 Piston - Was 6687724 - A

1

7000476

PISTON, ENG std (1G687-2111)

1

PISTON, ENG OS NLA - +,25 mm (1G960-2111 OS25) - Order 7000477 piston - Was 6687725 - A

1

7000477

PISTON, ENG OS +,25 mm (1G960-2111 OS25)

2

6687722

RING piston - std - for 1 piston

2

6687723

RING piston (+0.25 mm) - for 1 piston

3

6670397

PIN

4

3974216

RING

5

6690166

ROD, CONNECTING W/Ref. 6-8

6

6670399

BUSHING

7

6670400

BOLT

8

6670401

BEARING rod - std

8

6670402

BEARING rod (+0.2 mm)

8

6670403

BEARING rod (+0.4 mm)

9

7000485

CRANKSHAFT, ENG Was 6687735 - A

9

7000485

CRANKSHAFT, ENG

10

3974226

KEY

11

6687717

GASKET bearing case

12

7000494

GASKET case cover - Was 6670379 - A

13

6670378

COVER, BEARING CASE

14

1CM620

BOLT Was 4CM620 - A

15

6687691

SEAL oil

16

6653584

BOLT

17

6687698

BEARING main - std

17

6687701

BEARING main (-0.2 mm)

17

6687702

BEARING main (-0.4 mm)

18

6670405

GEAR

19

6670414

OIL SLINGER

20

6683014

SEAL

21

6670413

COLLAR

22

6687739

PULLEY fan drive

23

6670784

BOLT

24

6670382

BOLT flange head

25

6687692

BOLT bearing case

26

6687700

BEARING, ENG CRANKSHAFT main - std

26

6687704

BEARING main (-0.2 mm)

26

6687706

BEARING main (-0.4 mm)

27

6687688

CASE main brg - case halves only

27

7000472

CASE, BEARING ASSY W/Ref. 25 & 26

28

6687716

CASE main brg - case halves only

28

7000478

CASE, BEARING ASSY W/Ref. 25 & 26

29

6687689

CASE main brg - case halves only

29

7000473

CASE, BEARING ASSY W/Ref. 25 & 30

30

6687699

BEARING main - std

30

6687703

BEARING main (-0,2mm)

30

6687705

BEARING main (-0,4mm)

31

6652636

WASHER thrust - std. - 1/2 thrust washer

31

6513613

WASHER thrust (+0.2 mm) - 1/2 thrust washer

31

6513615

WASHER thrust (+0.4 mm) - 1/2 thrust washer

32

7000492

WASHER, THRUST SIDE Std - 1/2 thrust washer - Was 6652637 - A

32

7000492

WASHER, THRUST SIDE std. - 1/2 thrust washer

32

6698149

WASHER, THRUST SIDE thrust - (+0.2 mm) 1/2 thrust washer - Was 6513614 - A

32

6698149

WASHER, THRUST SIDE thrust (+0.2 mm) - 1/2 thrust washer

32

6513616

WASHER thrust (+0.4 mm) - 1/2 thrust washer

32

6698150

WASHER, THRUST SIDE thrust (+0.4 mm) - 1/2 thrust washer
