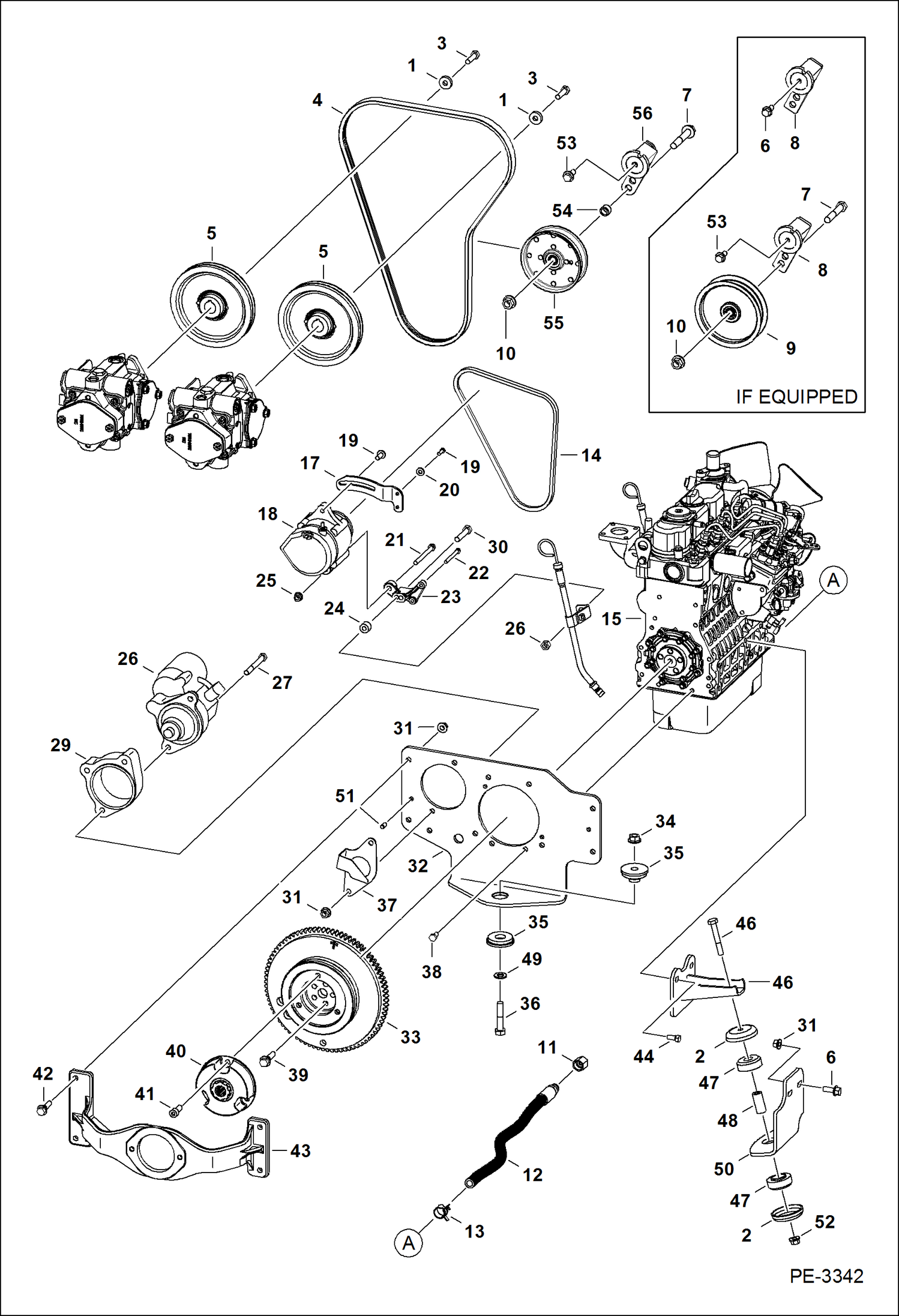

Запчасти Bobcat Mini Tracks Loaders ENGINE & ATTACHING PARTS (Engine Mounts) (S/N 538712501 & Above) POWER UNIT

1

7142032

WASHER

2

7110825

SHIELD ENG MOUNT

3

7142031

BOLT

4

6684749

BELT DRIVE 3/V2

5

6737103

PULLEY

6

35C616

BOLT 5

7

31C860

BOLT engine

8

6683883

TENSIONER belt

9

6688547

PULLEY, FAN DRIVE IDLER

10

83D8

NUT 5

11

36K6

CAP

12

7109834

HOSE

13

5HM20

CLAMP

14

6686683

BELT, ALT

15

ENGINE, D902E2B-BC-1 See Illustration ENGINE & GASKET KITS/ B24948 W/Ref. 39

16

29CM820

SCREW

17

7101372

BRACKET alternator

18

ALTERNATOR, 40 AMP See Illustration ALTERNATOR/ C3456

19

29CM616

BOLT

20

25E13

WASHER 5

21

1CM1050

SCREW

22

1CM660

BOLT

23

7101358

MOUNT alternator

24

6732978

SPACER

25

53DM10

NUT

26

83D5

NUT 5

27

17C652

BOLT

28

STARTER See Illustration STARTER/ D2396

29

6562198

SPACER

30

17C552

BOLT

31

83D6

NUT 5

32

7132695

MOUNT engine

33

7160048

FLYWHEEL, ENG ASSY Was 7103781 - A

33

6800424

RING-GEAR

34

51DM12

NUT

35

6691268

MOUNT engine - three piece - orientate per parts breakdown drawing

36

7CM1260

BOLT

37

7102645

SHIELD starter

38

55CM816

BOLT

39

6678065

BOLT flywheel

40

6683843

COUPLER drive

41

6805750

SCREW

42

35C624

BOLT

43

6735052

MOUNT pump

44

6733378

SCREW

45

7132697

MOUNT

46

7CM1070

BOLT

47

6691082

ISOLATOR centrally located within Ref. 50

48

7129974

BUSHING

49

18EM1224

WASHER

50

7132696

BRACKET engine

51

7101341

PIN

52

51DM10

NUT
